Pack
Specifications
| Heat output (1 firing) | 64 kW |
|---|---|
| Efficiency | + 80 % |
| Minimum wood load | 10 kg |
| Maximum wood load | 20 kg |
| Log length | 33 cm |
| Material | Fireclay |
| Flue outlet | Ø 160 or 180 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable as an option |
| Net weight | 1220 kg |
| Food contact | Yes |

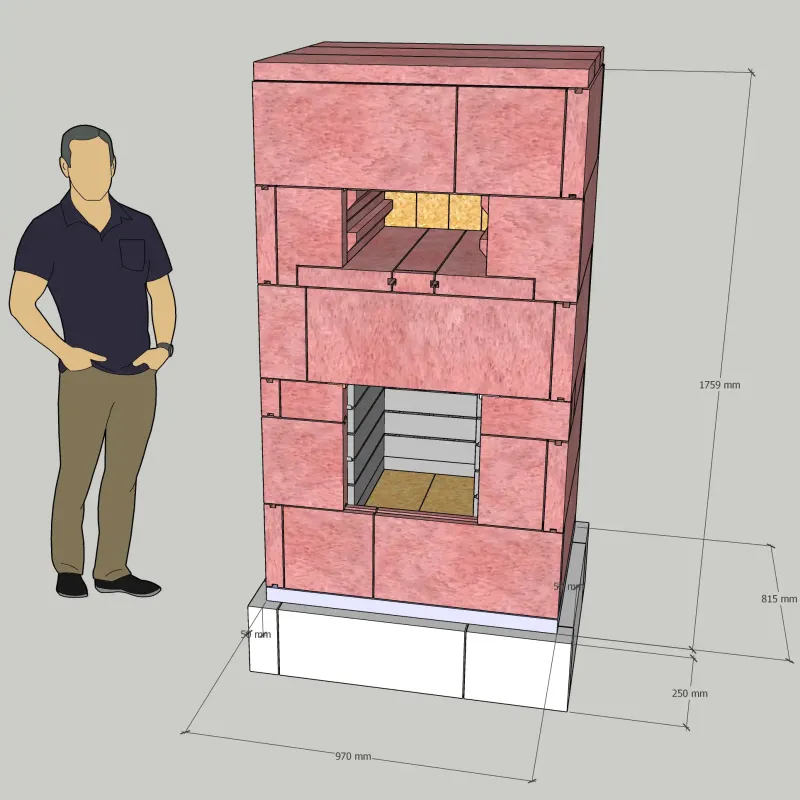

PRAC 603 L (10 - 20 kg) with oven
Refractory core for 10 to 20 kg of wood, for building a Finnish masonry heater.
Pre-cut and ready to assemble. All that remains is the cladding and render, to be finished as you wish! Version with oven.
Made to order
Price:
€7,499.00
Instead of €8,326.06
Tax included
Product customization
Don't forget to save your customization to be able to add to cart
This pack contains
- Pre-cut and ready to assemble
- Pisla HTT603 double-glazed airtight firebox door
- HTT 631 oven door
- Min/max load capacity: 10 / 20 kg
- Max. average output* over 24 h: 2.67 kW, over 12 h: 5.33 kW
- Recommended log length: 33 cm
- Max. log length: 50 cm
- Combustion on the hearth floor
- Airtight firebox with multi-point air injection: combustion air inlet from below, diameter 160 or 180 mm (to be ducted through the stove base - not included)
- Rear or top flue outlet, diameter 160 or 180 mm.
- Efficiency > 80%
- PM 2.5 < 40 mg/Nm³
- CO < 1500 mg/Nm³
- NOx < 200 mg/Nm³
* N.B.: The heat output delivered varies depending on the type and thickness of the cladding.
