Specifications
| Heat output (1 firing) | 93 kW |
|---|---|
| Useful heat output | 6 kW |
| Efficiency | + 80 % |
| Minimum wood load | 14.5 kg |
| Maximum wood load | 29 kg |
| Log length | 33 cm |
| Material | Fireclay |
| Width (overall) | 1165 mm |
| Depth (overall) | 815 mm |
| Height (overall) | 1700 mm |
| Flue outlet | Ø 180 mm |
| Air inlet diameter | 180 mm |
| Air inlet | Ductable as an option |
| Net weight | 1600 kg |
| Food contact | Yes |
| Contains wood | No |
PRAC 603 XL (14.5 - 29 kg) with oven

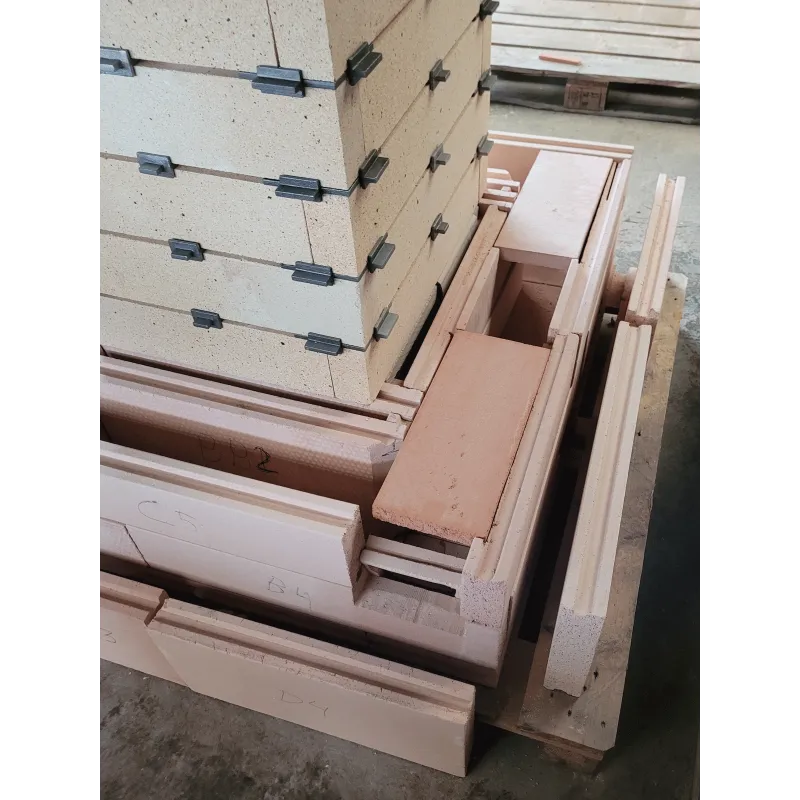

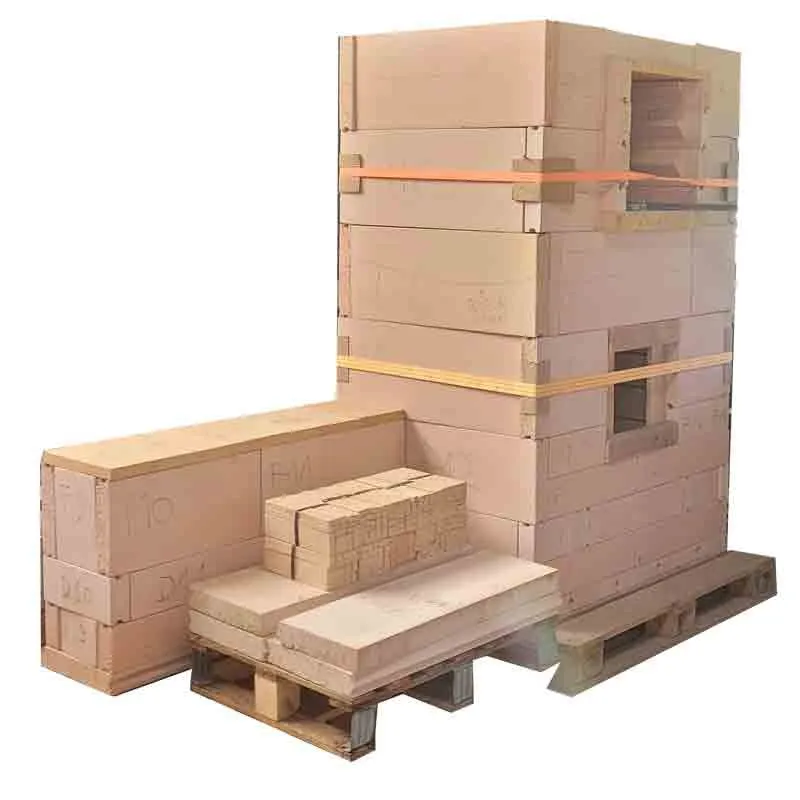

Refractory core for 10 to 20 kg of wood for building a Finnish masonry heater.
Pre-cut and ready to assemble. All that remains is the cladding and render, to be done as you wish!
Version with oven.
Made to order
- Pre-cut and ready to assemble

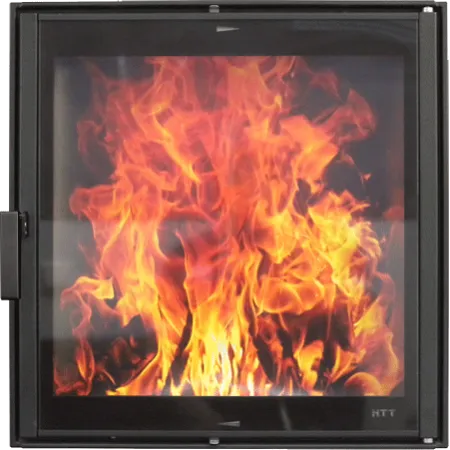

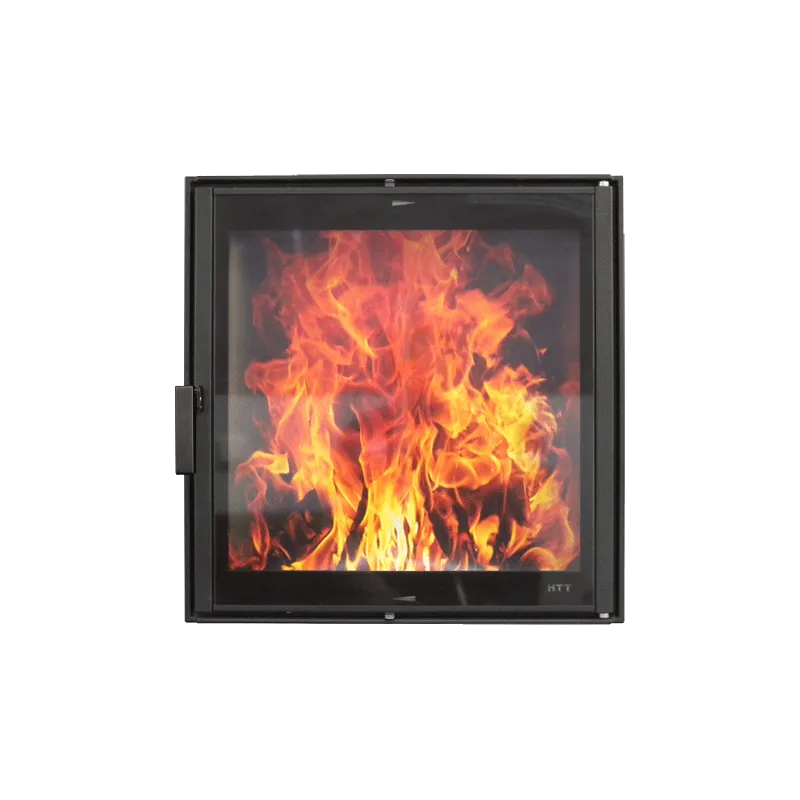

- Pisla HTT603 airtight double-glazed firebox door

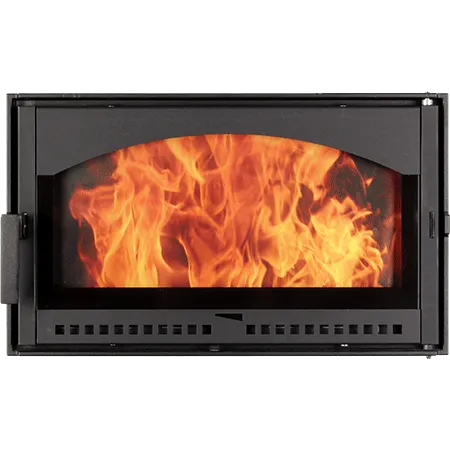

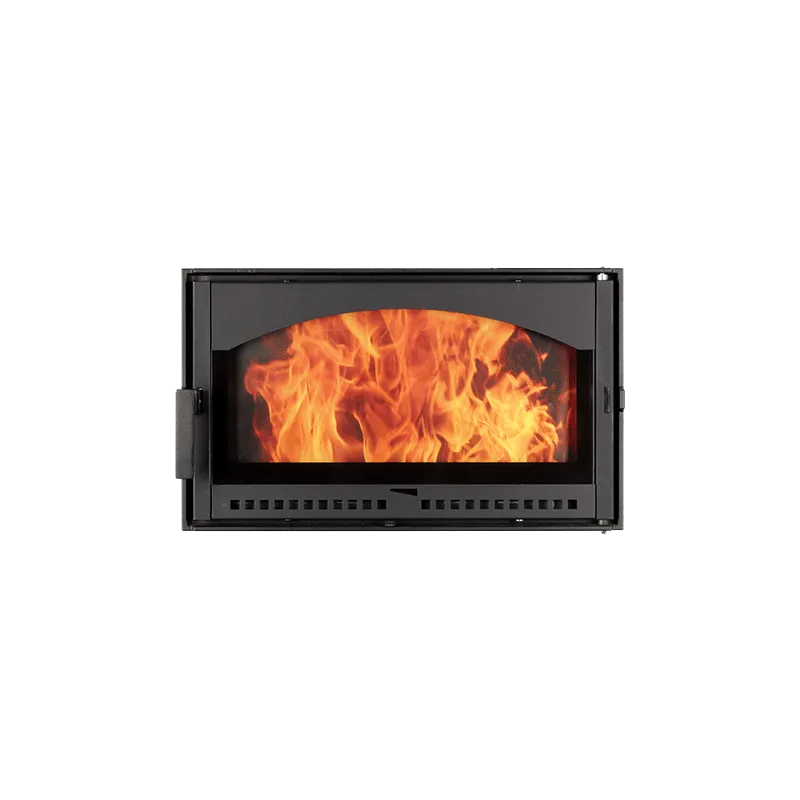

- HTT 631 oven door or equivalent
- Min/max load capacity: 14.5 / 29 kg
- Max. combustion output:
- Average output (1 to 2 fires/day): over 24 h: 3.87 kWh, over 12 h: 7.73 kWh
- Recommended log length: 33 cm
- Max. log length: 50 cm
- Combustion on the hearth floor
- Airtight firebox with multi-point air injection: combustion air intake from below, 180 mm diameter (to be ducted through the base of the heater - not included)
- Flue outlet at the rear or on top, 180 mm diameter.
- Efficiency > 80 %
- PM 2.5 < 40 mg/Nm³
- CO < 1,500 mg/Nm³
- NOx < 200 mg/Nm³
* N.B.: The output released varies according to the type and thickness of the cladding.
