Specifications
| Internal diameter | 120 cm |
|---|---|
| Width (overall) | 134 cm |
| Depth (overall) | 134 cm |
| Height (overall) | 64 cm |
| Wall thickness | 50 mm |
| Minimum dimensions of the supporting slab | 142.5 (W) x 142.5 cm (D) |
| Oven capacity | 6 to 7 pizzas of Ø 30 cm |
| Net weight | 430 kg |
| Manufacturer | Ephrem |
| Origin | France |
| Food contact | Yes |
| Contains wood | No |
Documentation:
Le Nomade 120 instructions (in French)
Le Nomade 120 oven assembly instructions
Le Nomade 120 truck version instructions (in French)
Le Nomade 120 truck version assembly instructions

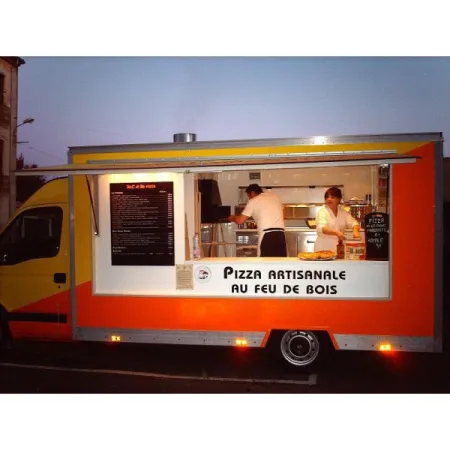

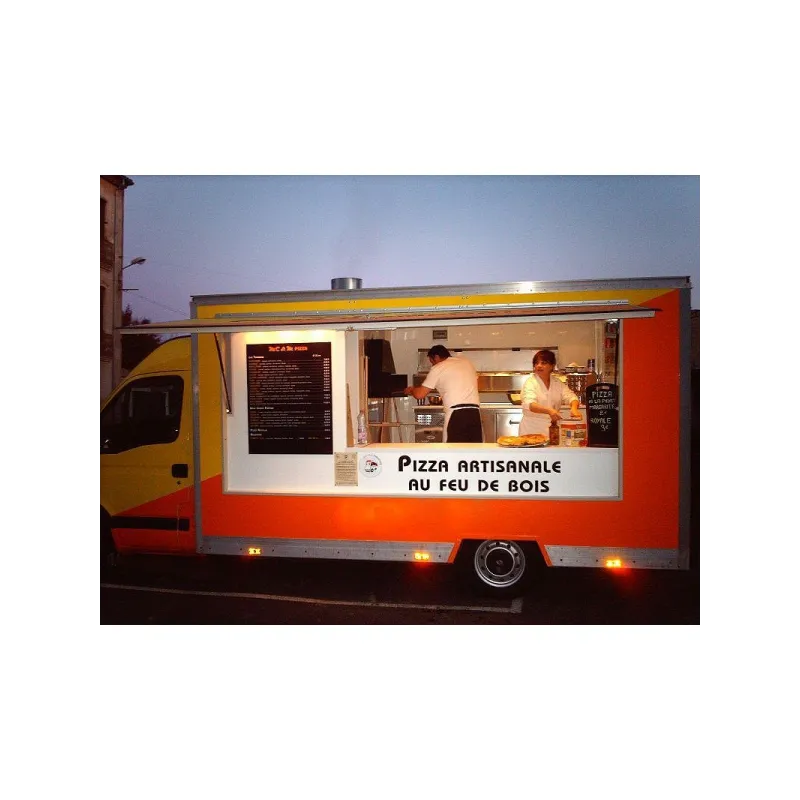

Le Nomade 120 pizza oven - Special for pizza vans
The Nomade 120 oven is the largest wood-fired oven intended for pizza vans, cooking up to 5 pizzas at a time. It can however be permanently installed in a pizzeria. It is suitable only for cooking pizzas.
Sur Commande
Related products:

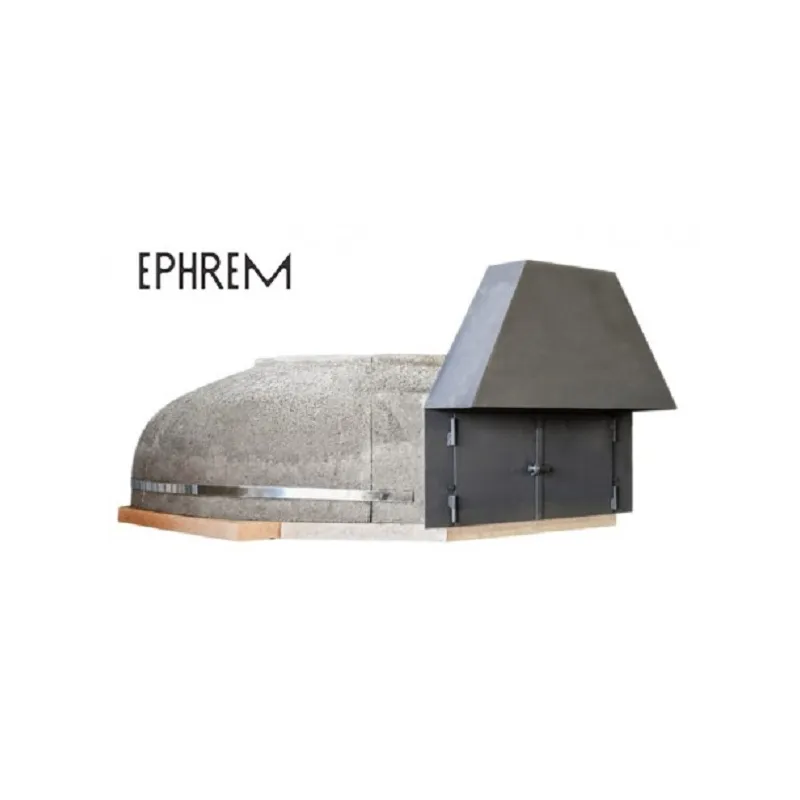

Presentation of the Le Nomade 120 oven:
Technical characteristics:
- Height: 64 cm
The Nomade 120 oven is the largest wood-fired oven (120cm inner diameter) for its weight/diameter ratio (less than 500 kg).
It consists of high-alumina refractory castable elements offering the greatest thermal resistance and which are easy to handle.
It can be installed:

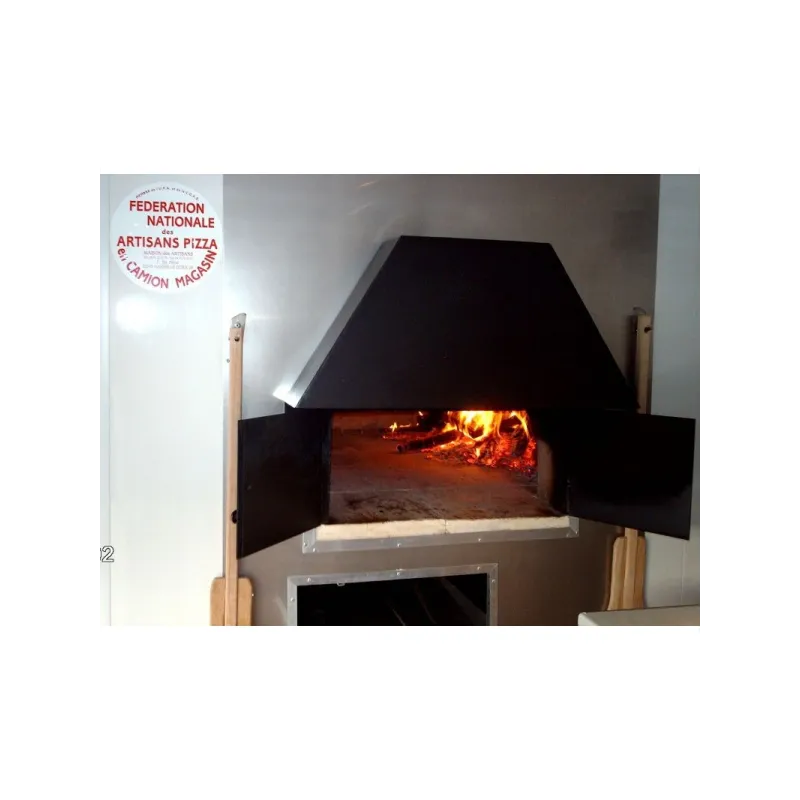

- Either in a pizza van on the Ephrem support table or on a metal chassis (see van installation instructions)
- Or in a restaurant on a supporting slab
Fitted with a cast iron door and an external smoke hood, which guarantee better airtightness and therefore optimal cooking, this oven is the pizza chef's ideal ally for cooking pizzas.
It consists of high-alumina refractory castable elements offering the greatest thermal resistance and which are easy to handle.
It can be installed:
- Either in a pizza van on the Ephrem support table or on a metal chassis (see van installation instructions)
- Or in a restaurant on a supporting slab
Fitted with a cast iron door and an external smoke hood, which guarantee better airtightness and therefore optimal cooking, this oven is the pizza chef's ideal ally for cooking pizzas.
Once assembled, the oven must be insulated and covered to ensure it heats up quickly and maintains constant temperatures.
Technical characteristics:
- Height: 64 cm
- Width: 134 cm
- Depth: 134 cm
- Inner diameter: 120 cm
- Weight: 430 kg
- Capacity: 7 pizzas of Ø 30 cm
- Output: 90 pizzas / hour
- Heating up: 23 kg then 8 kg / hour
- Minimum dimensions of the supporting chassis: 142.5 x 142.5 cm (or Ephrem support table)
- Material: Pozzolana
- Supplied with a black cast iron double-leaf door and front assembly
- Opening: 54 x 24 cm
Optional: connection spigot, damper
For connection to a stainless steel flue, allow for the Ø 200 mm refractory spigot:
- Depth: 134 cm
- Inner diameter: 120 cm
- Weight: 430 kg
- Capacity: 7 pizzas of Ø 30 cm
- Output: 90 pizzas / hour
- Heating up: 23 kg then 8 kg / hour
- Minimum dimensions of the supporting chassis: 142.5 x 142.5 cm (or Ephrem support table)
- Material: Pozzolana
- Supplied with a black cast iron double-leaf door and front assembly
- Opening: 54 x 24 cm
Optional: connection spigot, damper
For connection to a stainless steel flue, allow for the Ø 200 mm refractory spigot:
https://www.coeurdefoyer.fr/buses-manchettes/619-buse-de-raccordement-o-200-mm.html?search_query=buse+ephrem&results=39
Here are all the tips to make assembling your Ephrem oven easier:
https://www.youtube.com/watch?v=8KSGdkPX8DkHere are all the tips to make assembling your Ephrem oven easier:
