Specifications
| Material | Refractory concrete |
|---|---|
| Colour | Brown |
| Diameter | 200 mm |
| Length (overall) | 290 mm |
| Width (overall) | 280 mm |
| Thickness | 70 mm |
| Net weight | 8 kg |
| Manufacturer | Ephrem |
| Origin | France |
| Food contact | No |
| Contains wood | No |
| Flue type | Dampers |
Documentation:
Damper assembly instructions (in French)
Ephrem damper assembly instructions

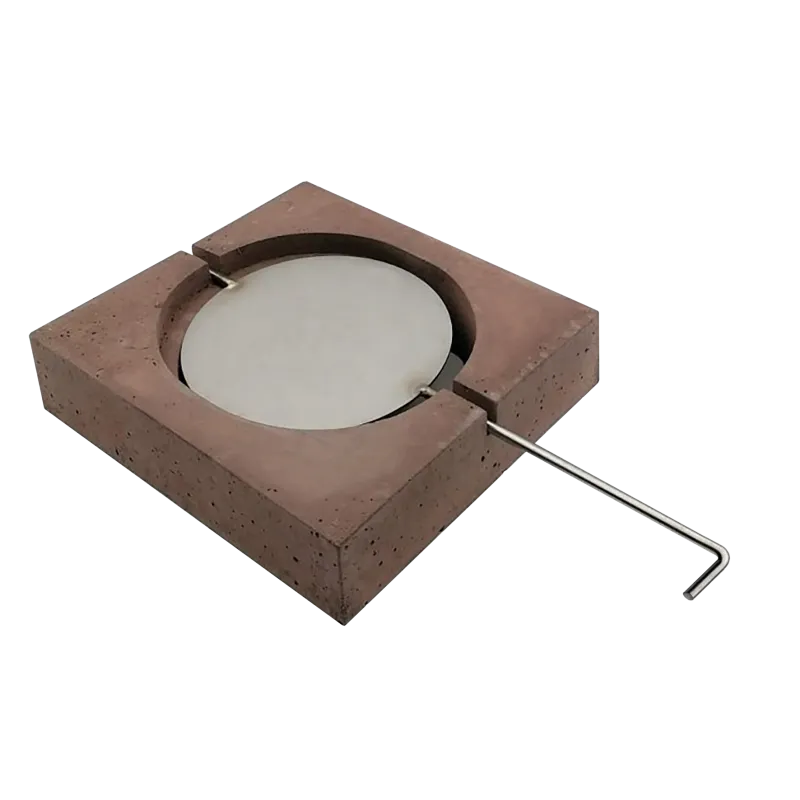

Damper for flues
Damper for moderating the draught, limiting cold air entry or closing the flue of your wood stove or wood-fired oven.
Adaptable to all 200 mm diameter flues, it can be used as a bypass damper.
En stock
Related products:
Description:
This damper is used to close your flue in order to limit cold air entry and keep bad weather out of your home.
It also regulates the draught of your wood-burning heating appliance or wood-fired oven.
Adaptable to all 200 mm diameter flues
Please note: in France, it is prohibited to close a flue in an airtight manner: this damper is therefore not airtight and lets a small part of the flue gases through.
Characteristics:
- Material: refractory castable
- Dimensions: 29 x 28 x 7 cm
- Rod length: 270 mm
- Weight: 8 kg
For installation with a stainless steel flue (flexible or rigid):
You will need to add above the damper the connection spigot for Ephrem ovens
For installation with a clay-block flue:
The damper serves as the connection between the oven outlet and the start of the clay flue block (minimum 20 x20 cm inside so that the damper can open).
