Specifications
| Material | Refractory concrete |
|---|---|
| Colour | Brown |
| Diameter | 200 mm |
| Internal diameter | 193 mm |
| Length (overall) | 280 mm |
| Width (overall) | 295 mm |
| Thickness | 70 mm |
| Net weight | 7.7 kg |
| Manufacturer | Ephrem |
| Origin | France |
| Food contact | Yes |
| Contains wood | No |
Documentation:
Flue collar assembly instructions (in French)
Ephrem flue collar assembly instructions

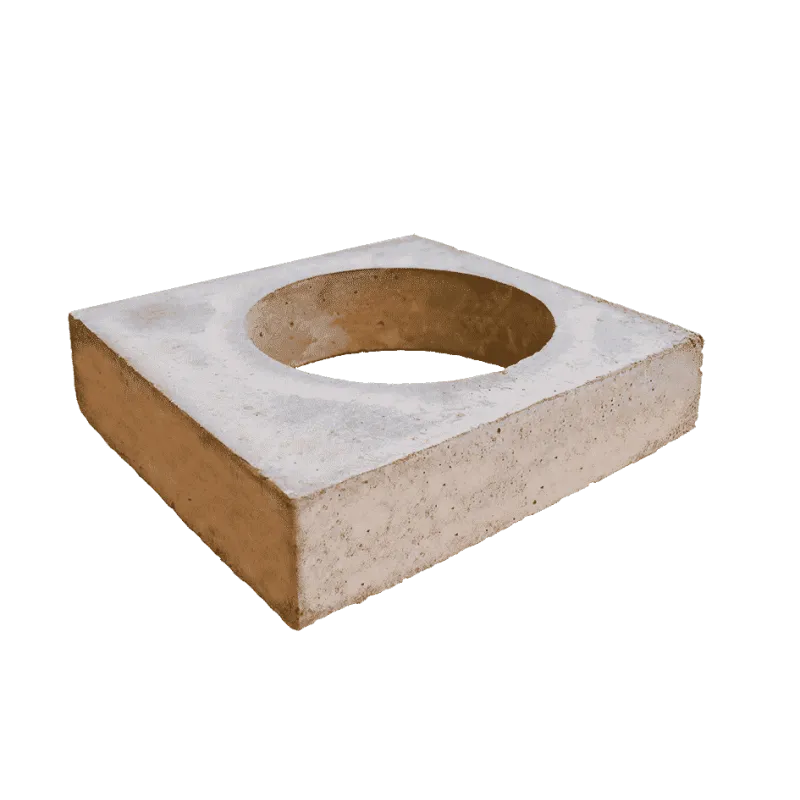

Connecting spigot for Ephrem oven - 200 mm diameter

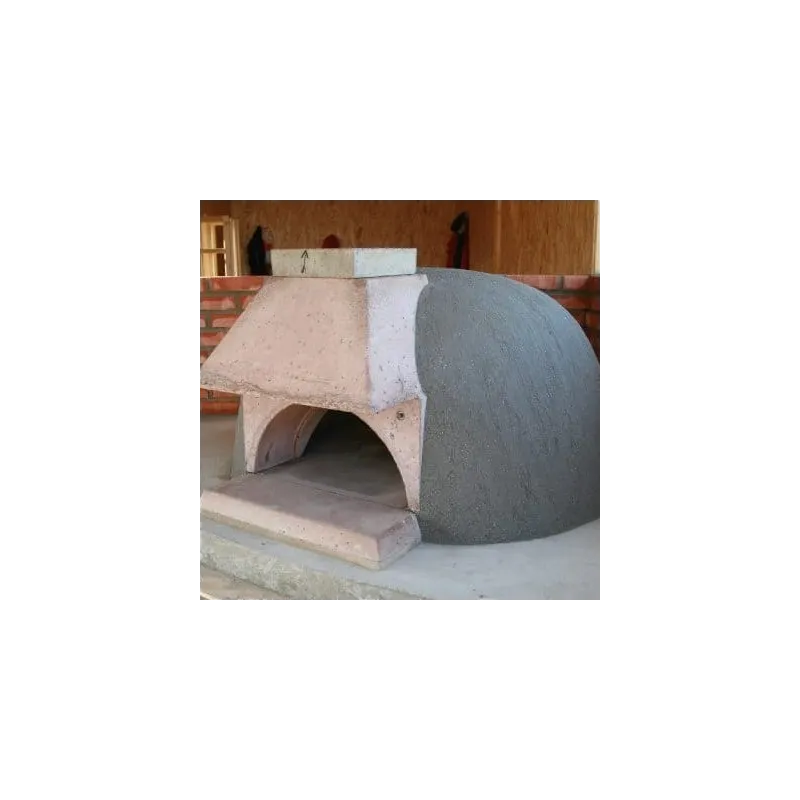

This refractory castable spigot is used to connect 200 mm diameter stainless steel flue pipes to the outlet of your pizza oven, bread oven, barbecue...
En stock
Related products:
✅ This connecting spigot is compatible with Ephrem brand ovens (except the Nomade 120 model) but can also be used on other models or types of oven.
It is designed to be sealed onto the flue outlet of your oven, using refractory mortar.
The stainless steel flue pipe (rigid or flexible) then sits inside the spigot, which has a diameter of 204 mm at the top and 193 mm at the bottom (tapered).
Then simply seal around the pipe:
➡️ With a self-adhesive flat glass fibre tape, 3 mm thick and 25 mm wide fixed around the pipe to avoid direct contact between the stainless steel and the refractory castable
➡️ Fill the remaining gap with a refractory sealant
