Specifications
| Material | Vermiculite |
|---|---|
| Colour | Sand |
| Length (overall) | 610 mm |
| Width (overall) | 305 mm |
| Maximum service temperature | 1100°C |
| Density | 600 kg/m³ |
| Net weight | 3.5 kg |
| Food contact | No |
| Contains wood | No |
Documentation:
V1100-600 technical data sheet
V1100-600 technical data sheet
Vermiculite - 600 safety data sheet
V1100-600 safety data sheet
Skamol presentation
Skamol presentation

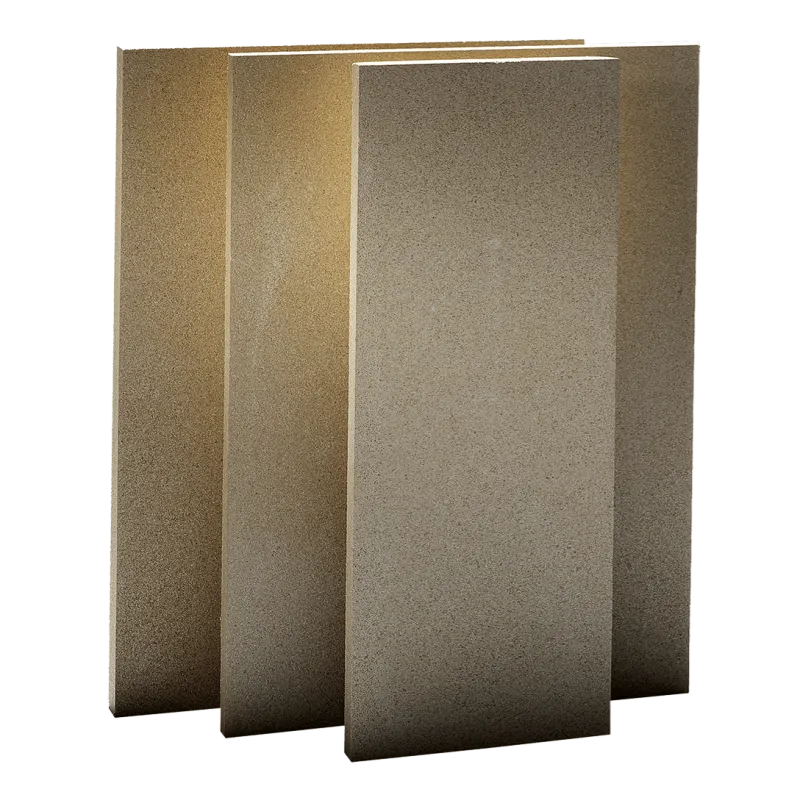

Vermiculite board 1100° 610 x 305 x 30 mm
This vermiculite board is a cost-effective high-temperature insulating panel that helps reduce energy costs.
It is used to insulate the combustion chambers of wood-burning fireboxes and is designed to withstand a maximum temperature of 1100 °C.
Easy to cut.
En stock
The minimum purchase order quantity for the product is 2.
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 24 | 5% | €33.62 |
| 60 | 10% | €168.12 |
| 120 | 15% | €504.36 |
| 180 | 20% | €1,008.72 |
| 240 | 25% | €1,681.20 |
Related products:
The vermiculite board is a component that fits into wood-heating systems. It is highly effective and lasts a long time if properly maintained. This thermal insulation board is also used in self-build projects.
Benefits of the vermiculite board
The vermiculite board is a board that acts as a high-temperature insulator. It is the ideal material for the thermal insulation of ovens, stoves and fireplaces. Vermiculite offers high heat resistance and can therefore withstand temperatures of up to 1100 degrees Celsius without degrading.
Furthermore, vermiculite is an effective insulating material of natural composition. Thanks to this property, it helps reduce the carbon footprint of buildings. Because it is easy to cut and handle, it can be used for many purposes. It is a material with good resistance to heat and wear. As a result, the vermiculite board can be used for several years. It is a cost-effective board that contributes to reducing energy costs.
Technical specifications
The vermiculite board is able to withstand extremely high temperatures. It offers heat resistance up to 1100 °C. Its dimensions are 30 mm thick, 610 mm long and 305 mm wide. Sand-coloured, this product has a density of 600 kg/m³. Weighing 3.5 kilograms, it is very light and easy to cut. This lightness also makes it easier to install and more effective. Its composition is 100% vermiculite and it contains no wood.
Applications and uses of the vermiculite board
The vermiculite board is used in wood heating appliances, namely wood stoves, pellet stoves, fireplaces, open fires and closed fireplaces. It is also used in self-build projects.
In wood heating
In wood heating, the vermiculite board plays an important role in stoves and fireplaces. It acts as a refractory material and protects the surrounding structure from intense heat. It also protects the inside of stoves and fireplaces from deterioration caused by exposure to the temperatures produced by the fire.
Installation in stoves
The high-temperature insulation is installed in stoves following a step-by-step procedure. First, it is important to clean the inside and outside of the heating appliance. Next, measure your stove and mark the dimensions on the board. Once you have marked the measurements on the vermiculite board, move on to cutting. Follow the marks you have drawn and avoid cutting through the thickness. Fit the board in the stove, making sure it does not protrude. Then secure the board with fasteners such as staples to hold it firmly in place.
Use in fireplaces
Using the vermiculite board in open or closed fireplaces helps extend the service life of these appliances. For good results, it is important to secure the board firmly during installation. It must also be maintained regularly and protected from moisture. You can combine it with other insulating materials to optimise the insulation of the fireboxes of your fireplaces.
In self-build
Thanks to its versatility and insulating properties, the vermiculite board can be used in self-build projects. It serves as fire protection, but can also be used to build pizza ovens, barbecues or other outdoor installations. It offers a customisable solution for builders who care about performance and energy efficiency.
Installation tips
For the best results after installing your vermiculite board, it is crucial to follow the instructions of the manufacturer. You must also comply with the national recommendations in force so that the board delivers good performance and also ensures the safety of the structures. For cutting, use tools such as a handsaw, a jigsaw or a circular saw. They make it possible to respect the dimensions so that the vermiculite board can be installed easily.
Maintenance and durability of the vermiculite board
To ensure the durability of the vermiculite board, you should clean it regularly. You should also protect it from moisture and call in a specialist for repairs if a problem occurs. Finally, you should contact industry experts for an annual inspection. This way, it will retain its longevity and can be recycled to reduce its environmental impact.
Conclusion
The vermiculite board is an effective thermal insulator used in wood heating and in self-build projects. Its properties allow it to store heat and release it into your space so as to optimise energy use. Buy your vermiculite board and enjoy its many benefits.
