Specifications
| Useful heat output | 8.2 kW |
|---|---|
| Efficiency | + 80 % |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable as an option None |
| Food contact | Yes |
| Contains wood | No |

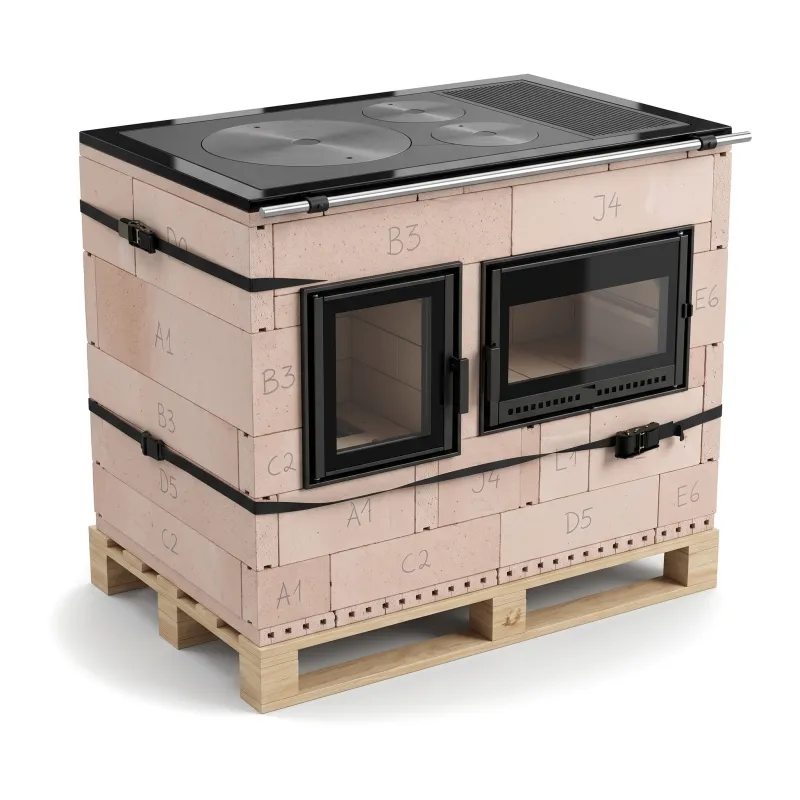

Masonry cooker (7-14 kg) with white oven
Refractory stone combustion chamber with hob and white oven for made-to-measure masonry cooker
- Min/max loading capacity: 7/14 kg
- Efficiency > 80% - Designed to EN15544
- Delivered on a pallet as a complete kit, pre-cut and ready to assemble
Sur Commande
- Pisla double-glazed cast iron firebox door, model HTT 603 (without ducted air - 15a door available as an option).
- White oven with Pisla cast iron oven door, model HTT 631.
- Average output over: 4h > 8.4 kW
- Efficiency > 80%
- Airtight firebox with combustion on the hearth floor and air injectors to UZ37
- Recommended heat store length (horizontal): 3.5 m
- Air intake diameter: Ø 180 or 160 mm, your choice
- Recommended minimum cladding area: 12 m²
The flue circuit is connected at the top, horizontally on the ceiling or vertically on one of the 4 faces in the course of stone just below the ceiling.
