Specifications
| Heat output (1 firing) | 64 kW |
|---|---|
| Useful heat output | 3.8 kW 7.7 kW |
| Efficiency | + 80 % |
| Minimum wood load | 14.5 kg |
| Maximum wood load | 29 kg |
| Log length | 50 cm |
| Material | Fireclay |
| Colour | Pinkish beige |
| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Food contact | No |
| Contains wood | No |
XL masonry firebox (14.5-29 kg) with oven
Refractory stone combustion chamber with white oven for made-to-measure masonry heaters
- Min/max load capacity: 14.5/29 kg
- Efficiency > 80% - Designed to EN15544

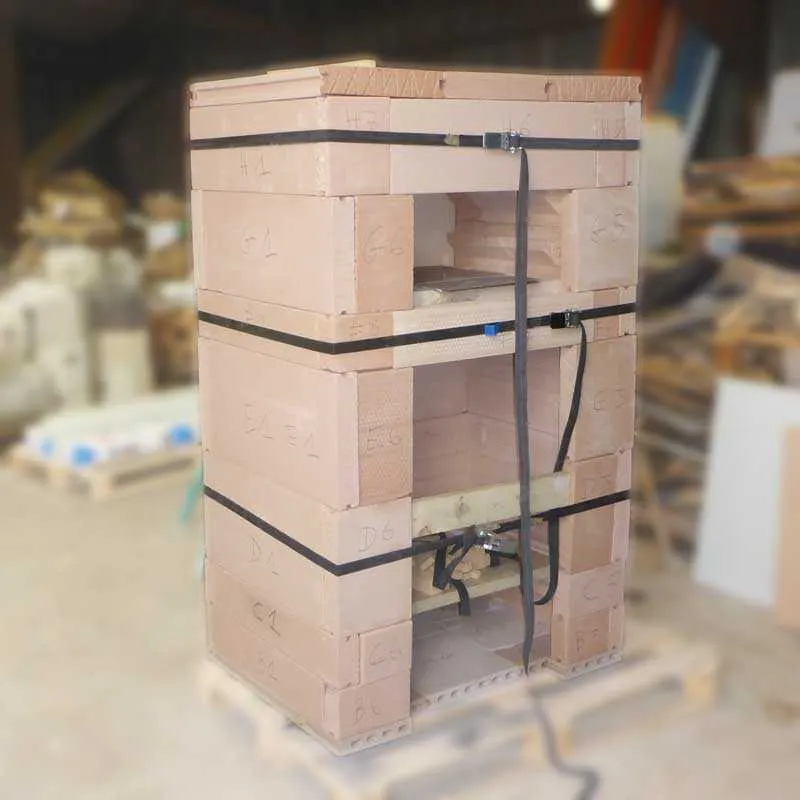

- Delivered on a pallet as a complete kit, pre-cut and ready to assemble
Sur Commande
- Pisla double-glazed cast iron firebox door, model HTT 603 (without ducted air - 15a door available as an option).
- White oven with Pisla cast iron oven door, model HTT 631.
- Average output (1 to 2 fires/day): over 24 h: 3.87 kWh, over 12 h: 7.73 kWh
- Airtight firebox with hearth combustion and air injectors to UZ37
- Air inlet diameter: Ø 180 or 160 mm, your choice
- Minimum recommended cladding area: 12 m²
- Heat accumulator: up to 1200 kg*
- Weight +/- 800 kg
*depending on the chimney and the layout.
The flue circuit is connected at the top, horizontally on the ceiling or vertically on one of the 4 faces in the course of stone just below the ceiling.
