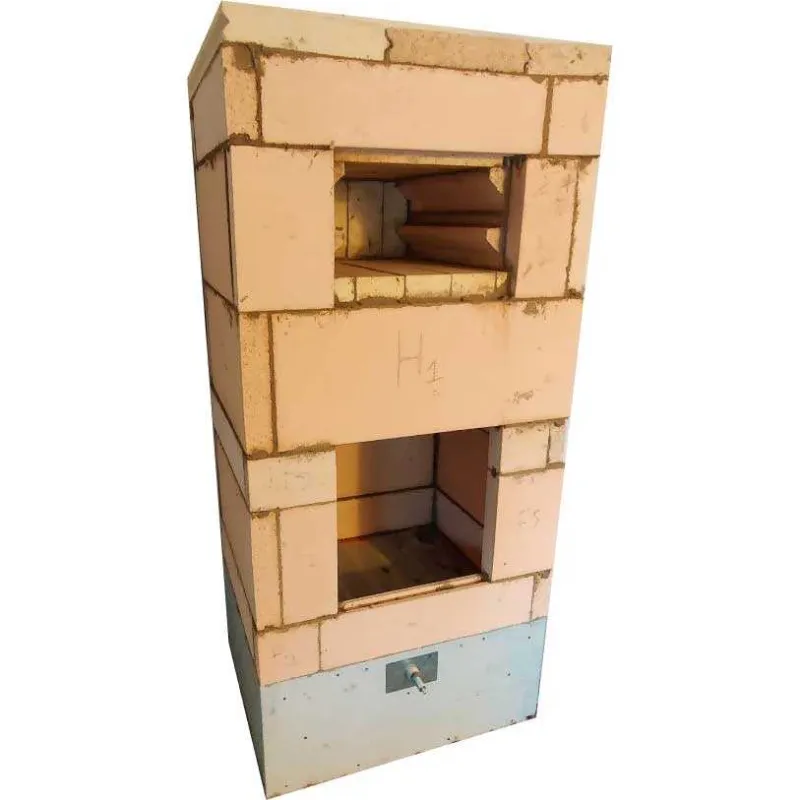

Masonry firebox L (10-20 kg) with oven
Refractory stone combustion chamber with white oven for made-to-measure masonry heaters
- Min/max load capacity: 10/20 kg
- Efficiency > 80% - Designed to EN15544
- Delivered on a pallet as a complete kit, pre-cut and ready to assemble
Sur Commande
- Pisla double-glazed cast iron firebox door, model HTT 603 (without ducted air - 15a door available as an option).
- White oven with Pisla cast iron oven door, model HTT 631.
- Average output over: 24h > 2.15 kW | 12h > 4.3 kW | 8h > 6.45 kW
- Efficiency > 80%
- Airtight firebox with combustion on the hearth floor and air injectors to UZ37
- Recommended (horizontal) heat-storage channel length: 6 m
- Air intake diameter: Ø 180 or 160 mm, your choice
- Recommended minimum cladding area: 12 m²
The flue circuit is connected at the top, horizontally on the ceiling or vertically on one of the 4 faces in the course of stone just below the ceiling.
