Specifications
| Heat output (1 firing) | 64 kW |
|---|---|
| Useful heat output | 5.3 kW |
| Efficiency | + 80 % |
| Minimum wood load | 14.5 kg |
| Maximum wood load | 29 kg |
| Material | Fireclay |
| Air inlet diameter | 180 mm |
| Air inlet | Ductable as an option None |
| Double glazing | Yes |
| Food contact | No |
| Contains wood | No |

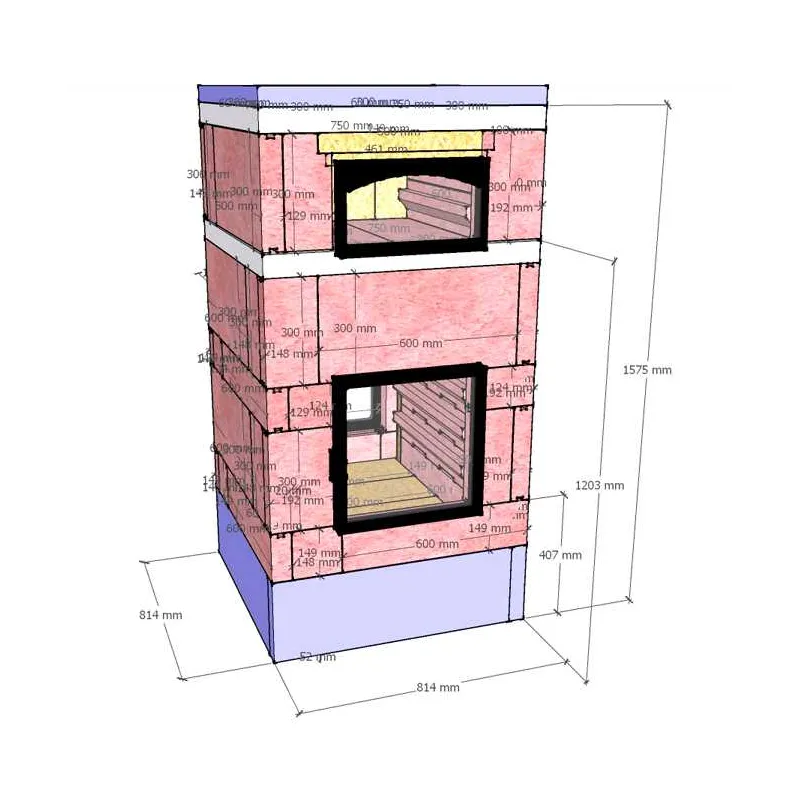

XL double-sided masonry firebox (14.5-29 kg) with oven
Combustion chamber with see-through tunnel firebox for masonry heaters, with white oven option, delivered as a complete kit:
- airtight double-glazed door (without ducted air - (door 15a with ducted air available as an option).
- Pre-cut and ready to assemble
- Min/max load capacity: 14.5/29 kg
- Average output (1 to 2 fires / day): over 24 h: 2.7 kWh, over 12 h: 5.3 kWh
- Efficiency > 80%
- Combustion on the hearth floor
- Airtight firebox with multi-point air injection
- Air inlet diameter: 1 x 180 Ø cm
- White oven with oven door of your choice.
- Minimum recommended cladding area: 12 m²
- Heat accumulator: up to 1200 kg*
- Weight +/- 800 kg
*depending on the chimney and the layout.
Sur Commande
The flue circuit is connected at the top, horizontally on the ceiling or vertically on one of the 4 faces in the course of stone just below the ceiling.
