Specifications
| Efficiency | + 80 % |
|---|---|
| Minimum wood load | 10 kg |
| Maximum wood load | 20 kg |
| Air inlet diameter | 180 mm |
| Food contact | No |
| Contains wood | No |

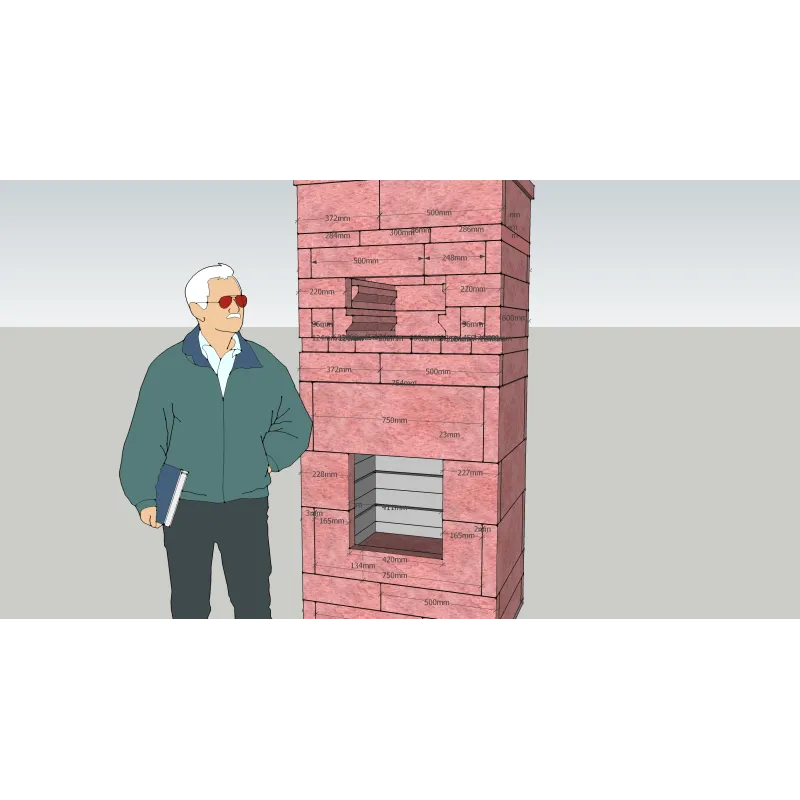

L masonry firebox (10-20 kg)
Pre-cut combustion chamber delivered as a complete kit excluding the firebox door: - Min/max load capacity: 8/16 kg - Average output: 2.1 to 6.4 kWh (1 to 3 fires/day) - Efficiency > 80% - Hearth combustion - Airtight firebox with multi-point air injection - Air inlet diameter: 1 x 160 Ø cm - Minimum recommended cladding area: 12 m² - Weight +/- 650 kg
Sur Commande
- Min/max load capacity: 10/20 kg
- Average output over 24 h: 2.15 kW
- Average output over 12 h: 4.3 kW
- Average output over 8 h: 6.45 kW
- Efficiency >85%
- Hearth combustion
- Airtight firebox with multi-point air injection
- Recommended heat accumulator length (horizontal): 5 m
- Air inlet diameter: 1 x 180 Ø cm
- Minimum recommended cladding area: 9 m²
The flue circuit is connected at the top, horizontally on the ceiling or vertically on one of the 4 faces in the course of stone just below the ceiling.
