Specifications
| Material | Cast grog |
|---|---|
| Length (overall) | 1200 mm |
| Width (overall) | 500 mm |
| Thickness | 25 mm |
| Thermal conductivity (U) | 1.33 W/mK at 35°C |
| Maximum service temperature | 450°C |
| Density | 2200 kg / m³ |
| Net weight | 33 kg |
| Manufacturer | Ortner |
| Origin | Austria |
Documentation:
GussSchamotte
Technical data sheet

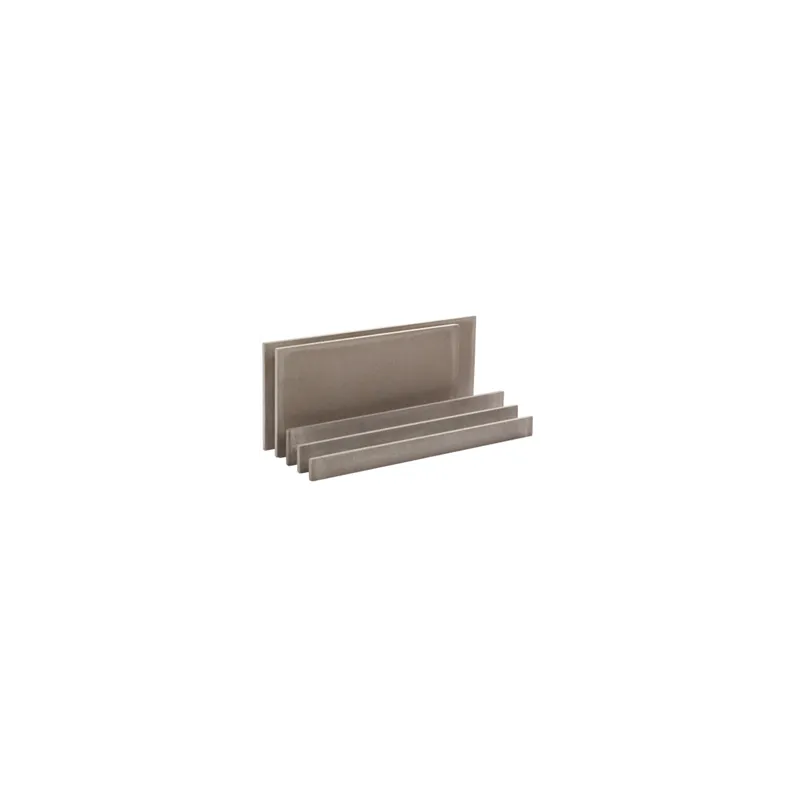

Cast refractory slab (GussSchamotte) 1200 x 500 x 25 mm
Cast grog refractory slab used to clad the heat storage core in masonry heaters. Thanks to its high thermal conductivity, heat builds up quickly, giving a high surface temperature and optimal radiant heat.
En stock
The minimum purchase order quantity for the product is 2.
Related products:
Ortner cast refractory products (GussSchamotte) are perfect for cladding the heat storage core in masonry heaters: fast heat storage and the conduction of the radiant energy from the internal heat store are at their best.
For use in areas permanently exposed to temperatures of up to 450˚ C.
Installed with adhesive mortar (Haftmörtel type) together with Ortner quick-fit mounting screws.
