Specifications
| Length (internal) | 50 cm |
|---|---|
| Thickness | 35 mm |
| Net weight | 16.4 kg |
| Manufacturer | Ortner |
| Origin | Austria |
| Food contact | No |
| Contains wood | No |

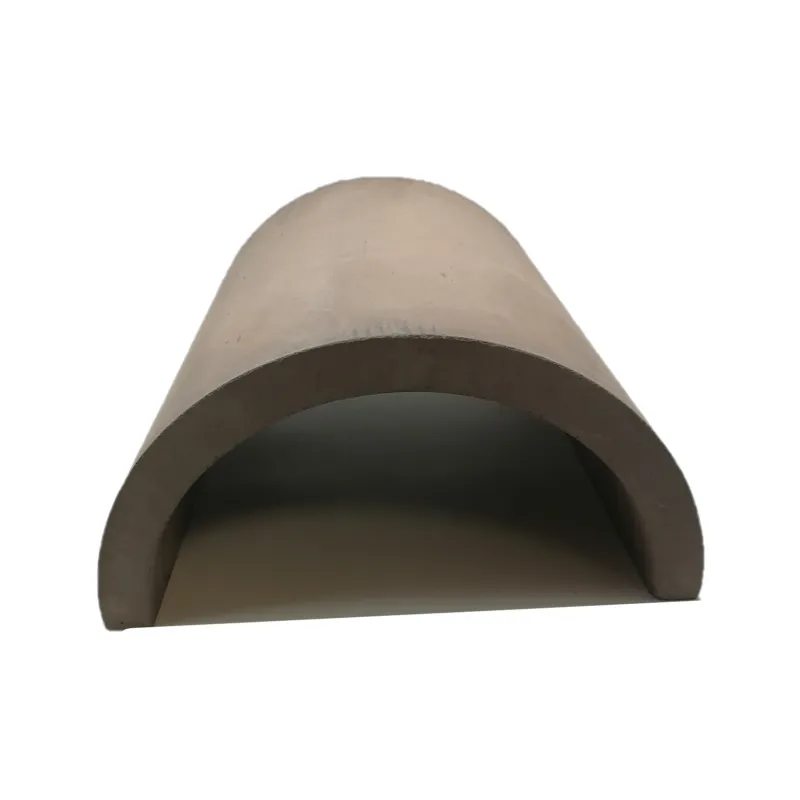

R22 cast refractory curved element
radius 220 mm length 500 mm Increased conductivity and density, up to around 1000 Wh per m² Density: 2200kg/m³ Conductivity at 35°C: 1.33 W/(m*K) Heat capacity: 1 kJ/(kg°K), i.e. 2.2 kJ/(dm³°K) Maximum application temperature: 450°c Fitted with adhesive mortar (Haftmörtel), adhesive mortar cream (Haftmörtel "creme") or adhesive mortar (HaftKleber) with the Ortner quick-screw system.
Sur Commande
Related products:
Ortner cast refractory products (GussSchamotte) are perfect for cladding the heat-storage core of masonry heaters: the rapid heat storage and the conductivity of radiant energy from the internal accumulator are optimal thanks to the increased thermal conductivity - designed for heat-storage systems with a heavy core. For use in areas permanently exposed to temperatures of up to 450 ˚c. Fitted with adhesive mortar (Haftmörtel), adhesive mortar cream (Haftmörtel "creme") or adhesive mortar (HaftKleber) together with Ortner quick mounting screws.
