Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Black |
| External diameter | 400 mm |
| RAL paint | RAL 9005 |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Accessories |
Documentation:
Finishing plate/rosette assembly (in French)

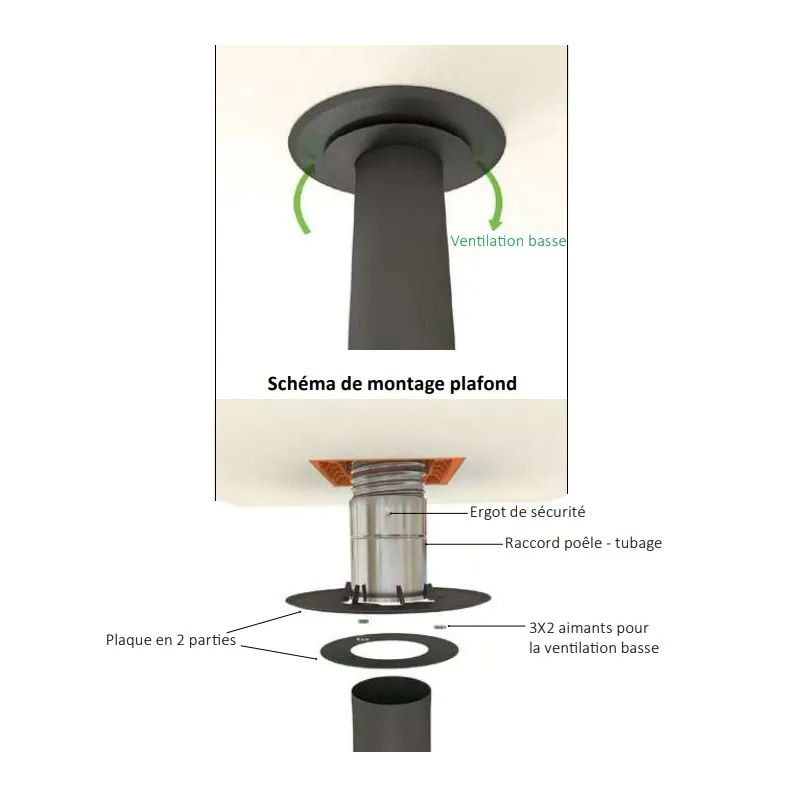

Assembly of round finishing plate with magnetic rosette

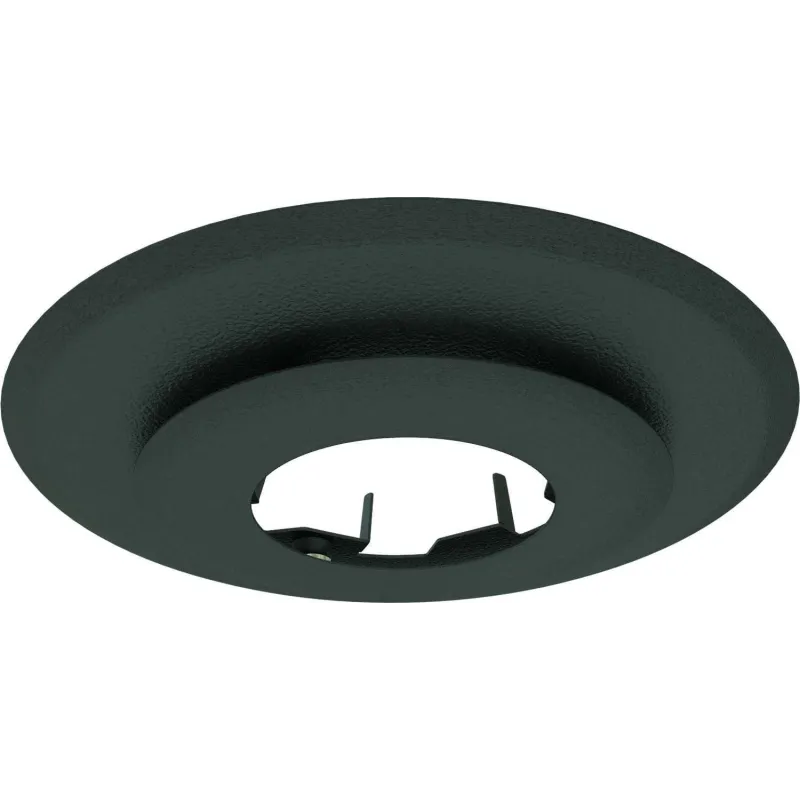

Round finishing plate with rosette - For flexible flue liner
Black round finishing plate with magnetic rosette to be fixed to the ceiling, providing a clean and elegant finish in your room by concealing the entry of the flexible flue liner. To be combined with the stove to flexible liner adaptor only. Available in various diameters.
Lead time: 2 to 3 weeks
Related products:
👉 This black round finishing plate, 400 mm outer diameter, gives you an impeccable look at the stove / liner connection. It includes a rosette that attaches to it with magnets, thus providing (by their thickness) discreet low ventilation of the flue.
➡️ To be combined with the stove to flexible flue liner adaptor only.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
