Specifications
| Material | 316 L stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Length (overall) | 1000 mm |
| Thickness | 0.20 mm (2 x 0.10) |
| Maximum service temperature | 450°C |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Straight lengths |

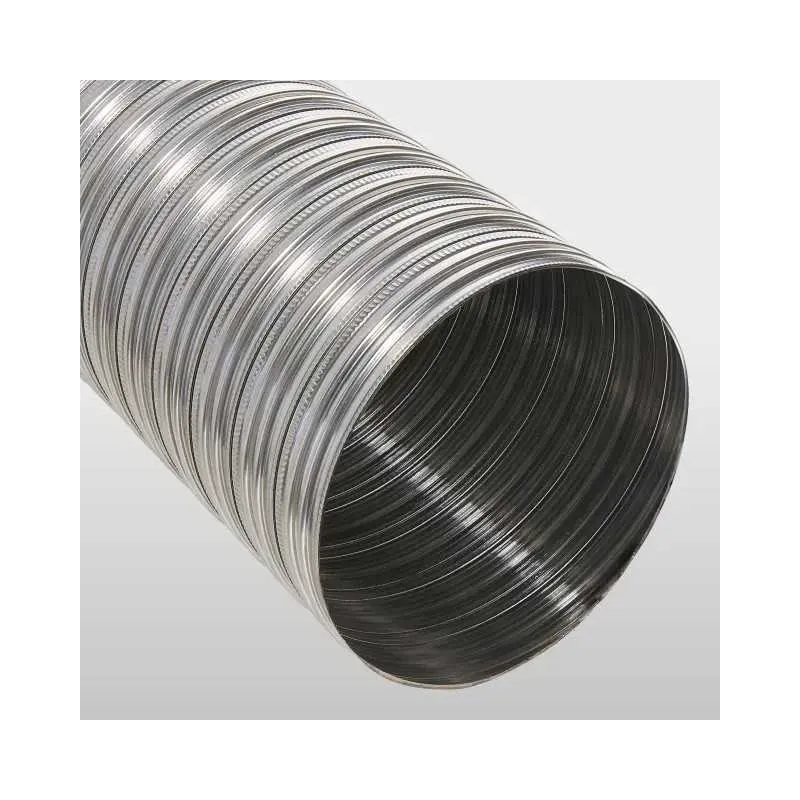

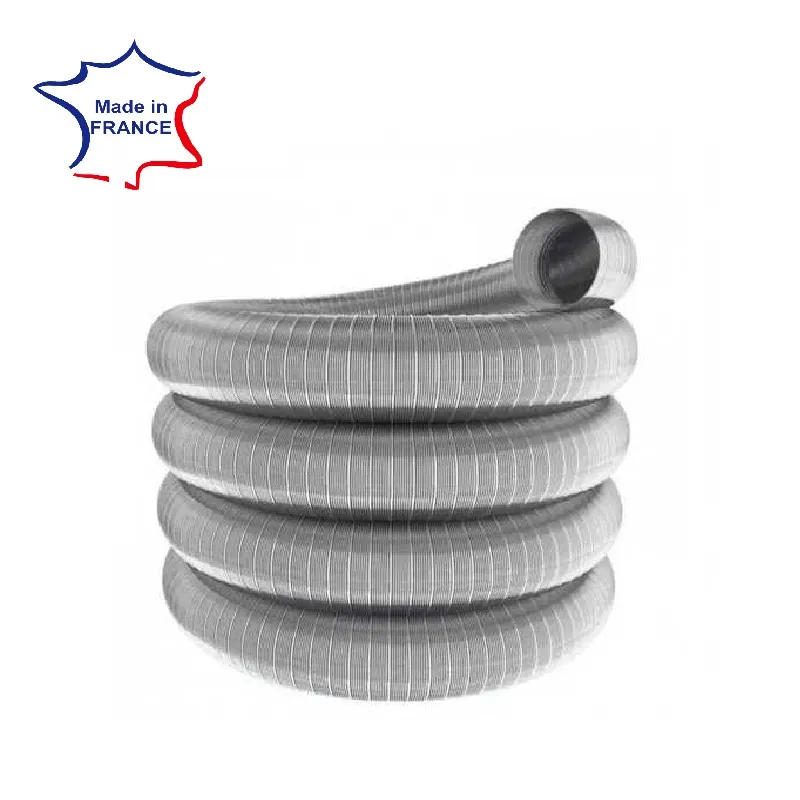

Twin-wall stainless steel flexible flue liner - Per linear metre
Twin-wall stainless steel flexible flue liner made in France and used for relining the masonry flues of wood, pellet, gas and oil heating appliances. It adapts to existing installations and handles offsets of up to 45° without the need for elbows.
Sold per linear metre with a minimum of 2 metres in diameters 150, 180 and 200 mm.
En stock
The minimum purchase order quantity for the product is 2.
Related products:

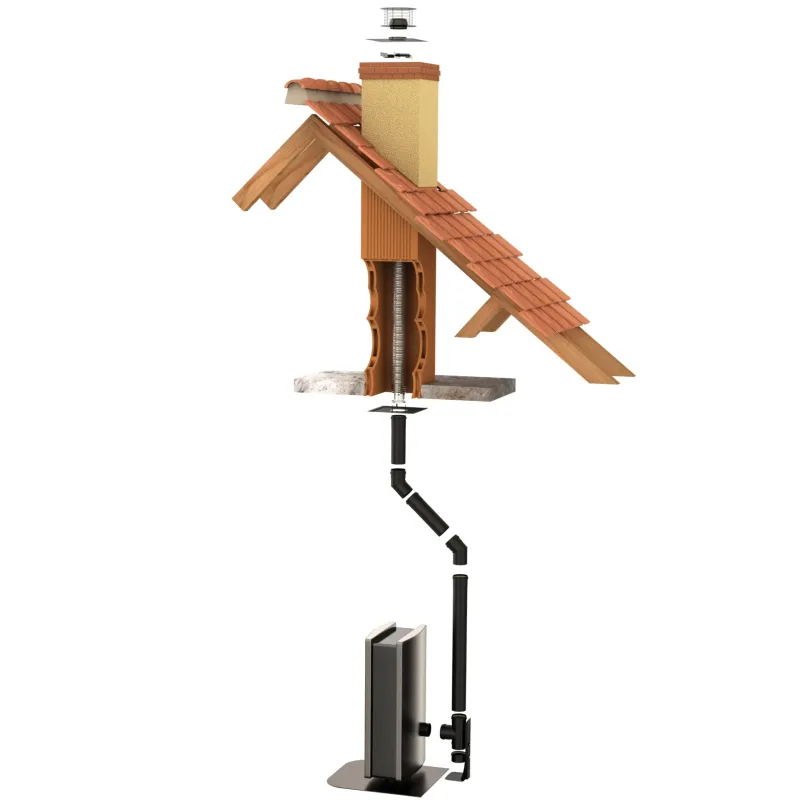

👉The twin-wall stainless steel flexible flue liner is designed to line an existing masonry chimney flue, with or without offsets, to allow a safe, airtight installation. It is made with a double-crimped system that reinforces the rigidity of the liner and its tensile strength during installation or sweeping.
What is a TEN LISS stainless steel flexible flue liner?
First of all, Ten Liss twin-wall flexible flue liners are 100% made in France!! They consist of:
➡️ An inner wall in 316L stainless steel, 0.10 mm thick
➡️ An outer wall in 316L stainless steel, 0.10 mm thick
In which applications can TEN twin-wall stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
⚠️ Reminder of the inner and outer diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
Explanatory video of the complete installation of a Ten flexible flue liner:
If you wish to order other diameters, please contact our sales department.
