Specifications
| Material | Steel |
|---|---|
| Colour | Black |
| Finish | Matt |
| Height (overall) | 170 mm |
| Wall thickness | 2 mm |
| Maximum service temperature | 1000°C |
| Standard | According to EN 1856-2 |
| Origin | Poland |
| Flue range | 2 mm painted steel single-wall flue |
| Flue type | Connectors and adapters |
Documentation:
2 mm painted steel range
Declaration of performance, 2 mm painted steel - SPK range

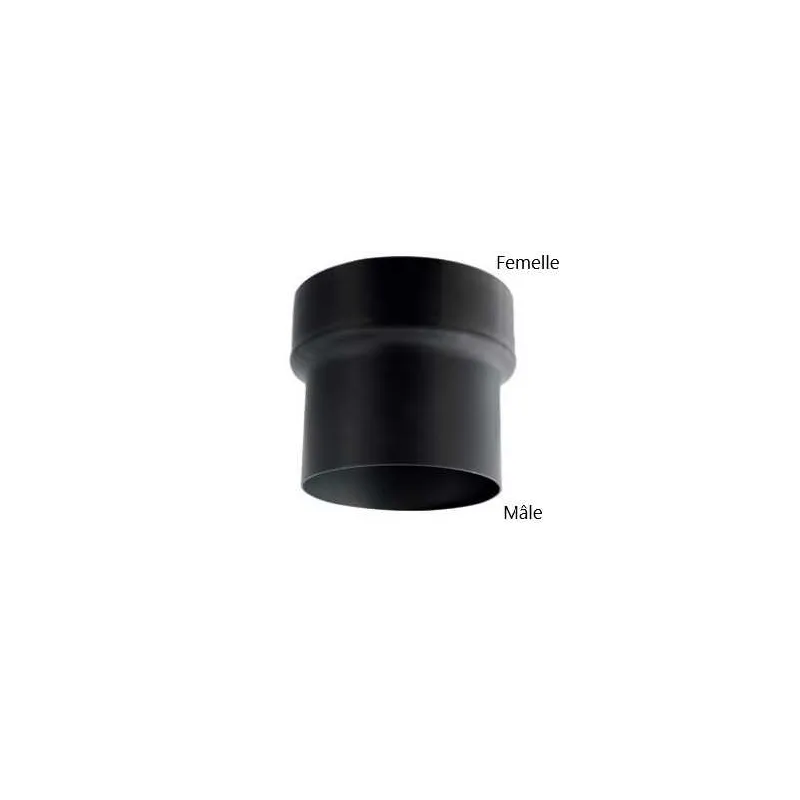

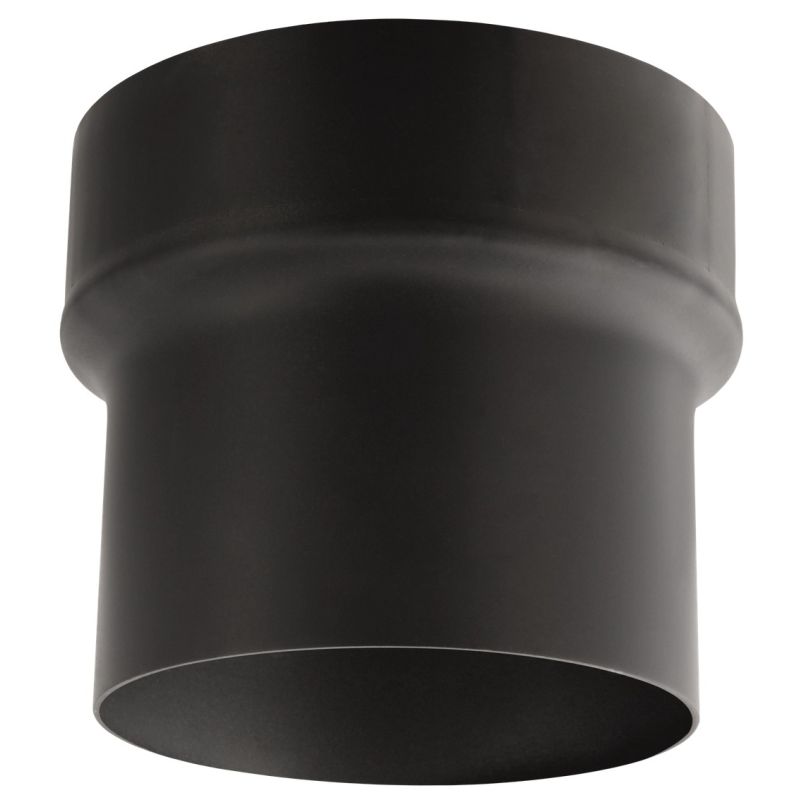

Female / Male reducer - Painted steel flue pipe 2 mm
Female / Male reducer in 2 mm single-wall painted steel for reducing the diameter between the chimney flue and the heating appliance.
Available in various diameters.
En stock
Related products:
👉 The Female / Male reducer in 2 mm black painted steel is used when connecting the wood stove and reduces its diameter.
The fitting is male on the stove side (at the bottom) and female on the chimney side (at the top).
Most often positioned at the top of the connecting flue pipe (at ceiling level), it adapts to a heating appliance with a smaller diameter: this is known as a reducer.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
➡️ Coated with a black Senotherm paint that needs to be brought up to temperature to be "cured", it can be useful to get a refractory spray paint for a few touch-ups during installation.
What are the advantages of 2 mm painted steel?
✅ Withstands high temperatures of up to 1000°C.
✅ Does not deform under the effect of heat
✅ Substantial 2 mm thickness that ensures robustness and safety over time
✅ Excellent value for money
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
🔥2 mm painted steel flue pipes are designed to operate under N1 (40 Pa) sealing conditions up to 600° (T600) but can withstand temperatures of up to 1000°C.
