Specifications
| Useful heat output | 8 kW |
|---|---|
| Efficiency | 81.8 % |
| Material | Cast iron |
| Colour | Black |
| Width (overall) | 800 mm |
| Depth (overall) | 520 mm |
| Height (overall) | 760 mm |
| Flue outlet | Ø 150 mm |
| Air inlet | Manual |
| Net weight | 240 kg |
| Manufacturer | Brunner |
Documentation:
ID04 footprint drawing
ID04 footprint drawing
ID04 horizontal outlet
ID04 horizontal outlet

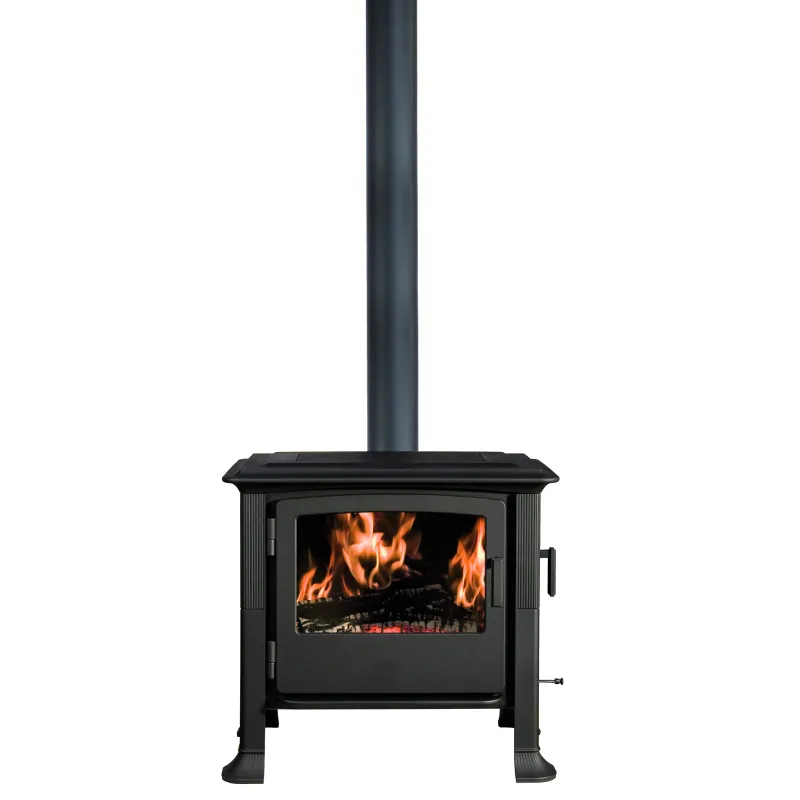

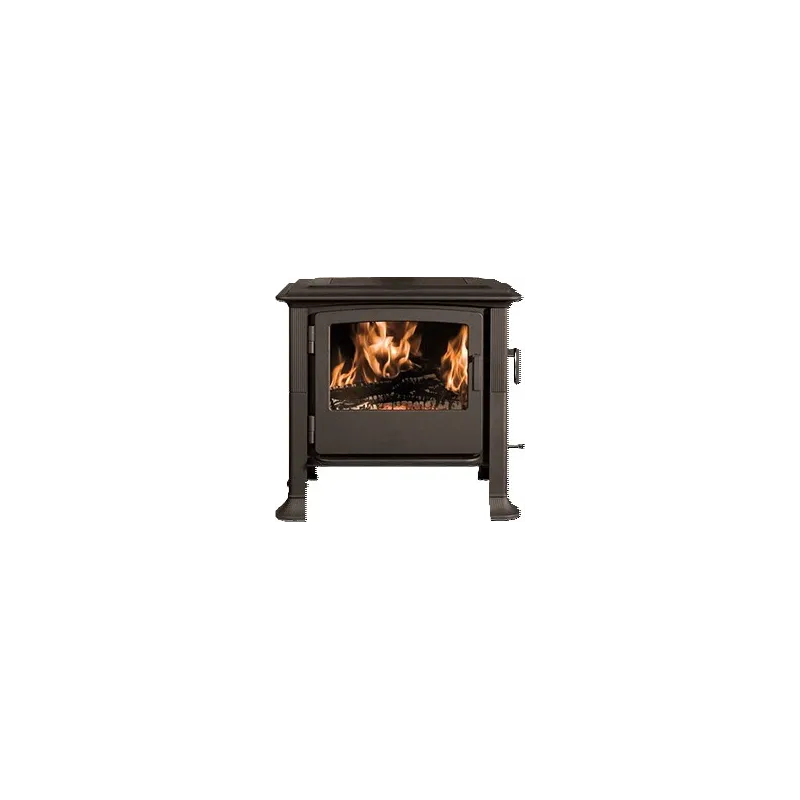

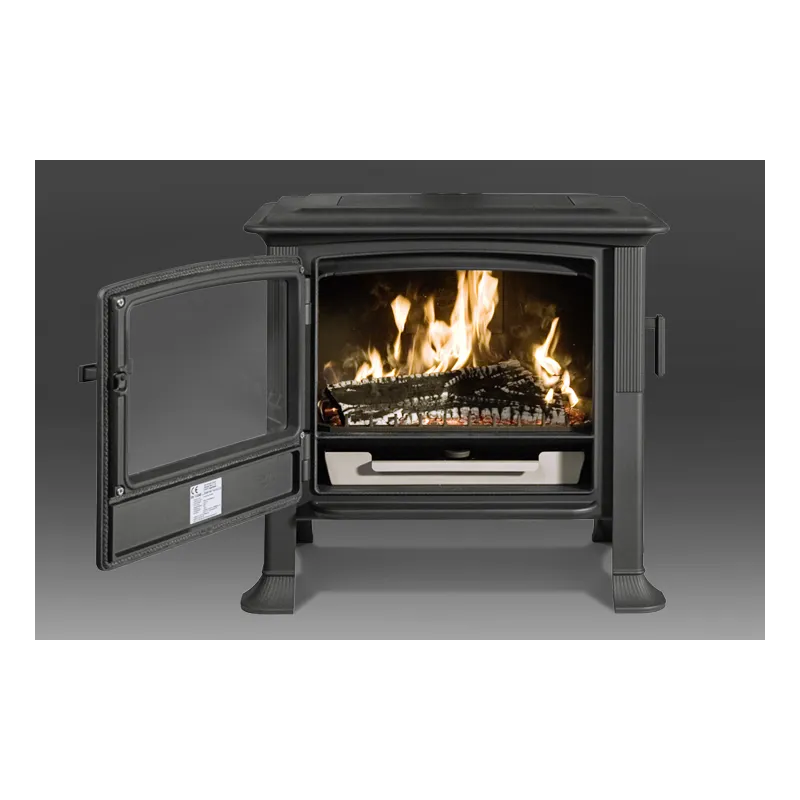

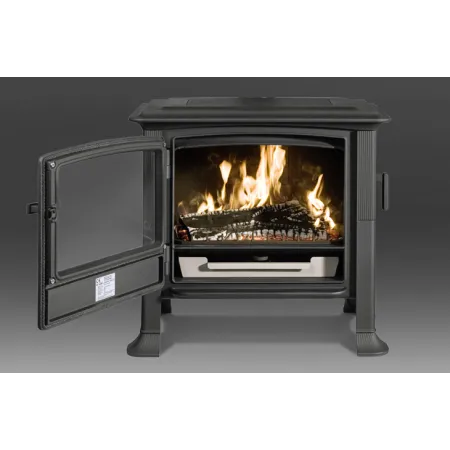

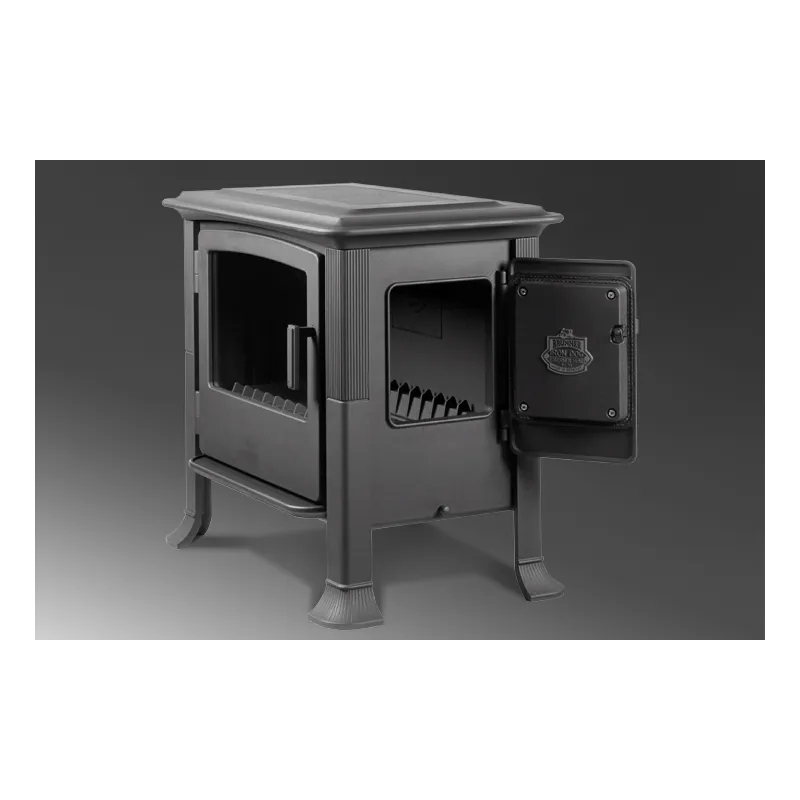

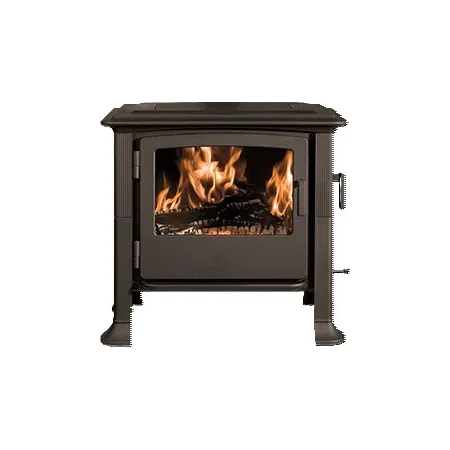

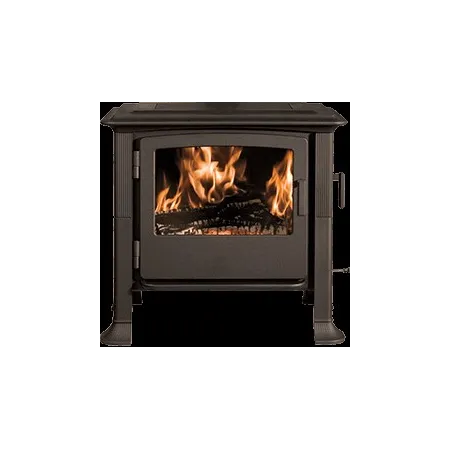

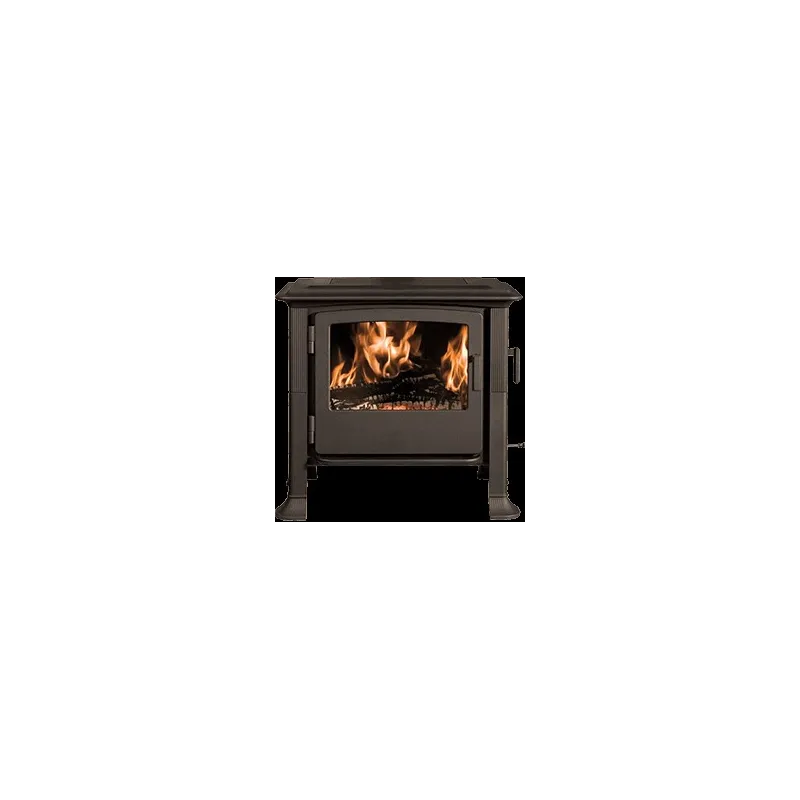

Brunner cast iron stove - Iron Dog No. 4
The Iron Dog No. 4: enjoy the pleasure of the flame in panoramic version! Despite its massive look, this cast iron wood stove is thoroughly up to date with its large glazed area!
Options and lead time: contact us.
Sur Commande
Technical characteristics:
- Nominal heat output: 8.0 kW
- Consumption/h: 2.0 kg
- Heating capacity: 60 - 110 m²
- Efficiency: 82 %
- Dimensions (H x W x D): 760 x 800 x 520 mm
- Glass area (H x W): 285 x 450 mm
- Firebox opening (H x W): 255 x 218 mm
- Flue connection: rear panel
- Flue pipe diameter: 150 mm
- Permitted fuel quantity: 1.5 - 2.5 kg
- Firebox depth: 600 mm
- Recommended log length: 250/330/500 mm
- Cast iron weight: 240 kg
- Combustion air requirement: 18 m³/h
- Regulations: complies with EN 13240
