Specifications
| Useful heat output | 7 kW |
|---|---|
| Efficiency | 80.6 % |
| Material | Cast iron |
| Colour | Black |
| Width (overall) | 440 mm |
| Depth (overall) | 630 mm |
| Height (overall) | 680 mm |
| Flue outlet | Ø 130 mm |
| Air inlet | Manual |
| Net weight | 130 kg |
| Manufacturer | Brunner |
Documentation:
Horizontal flue outlet
Footprint drawing for horizontal flue outlet
Vertical flue outlet
Footprint drawing for vertical flue outlet
Footprint drawing
Footprint drawing

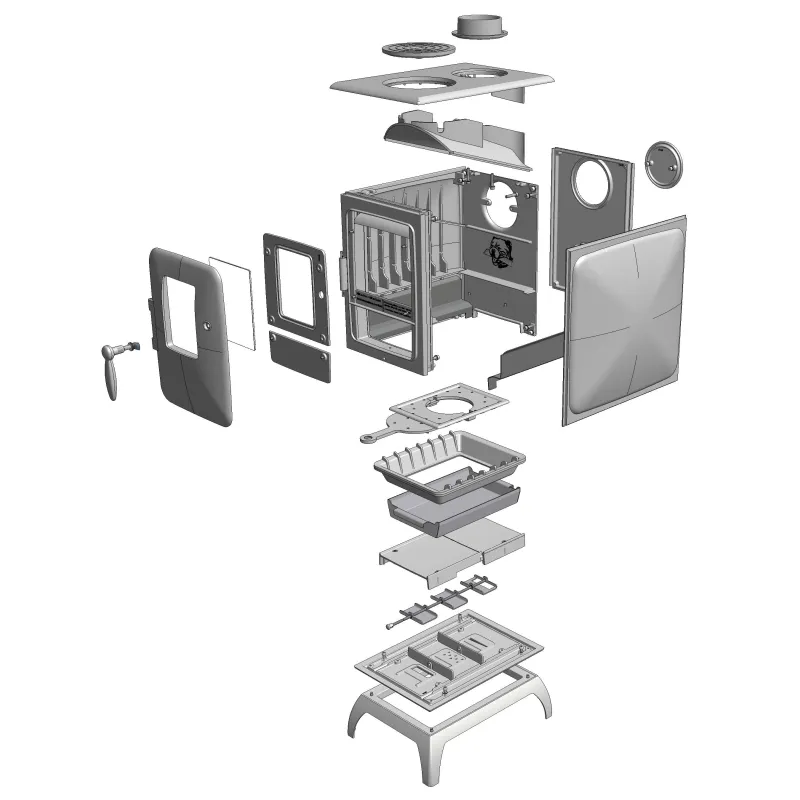

Exploded view
Exploded view

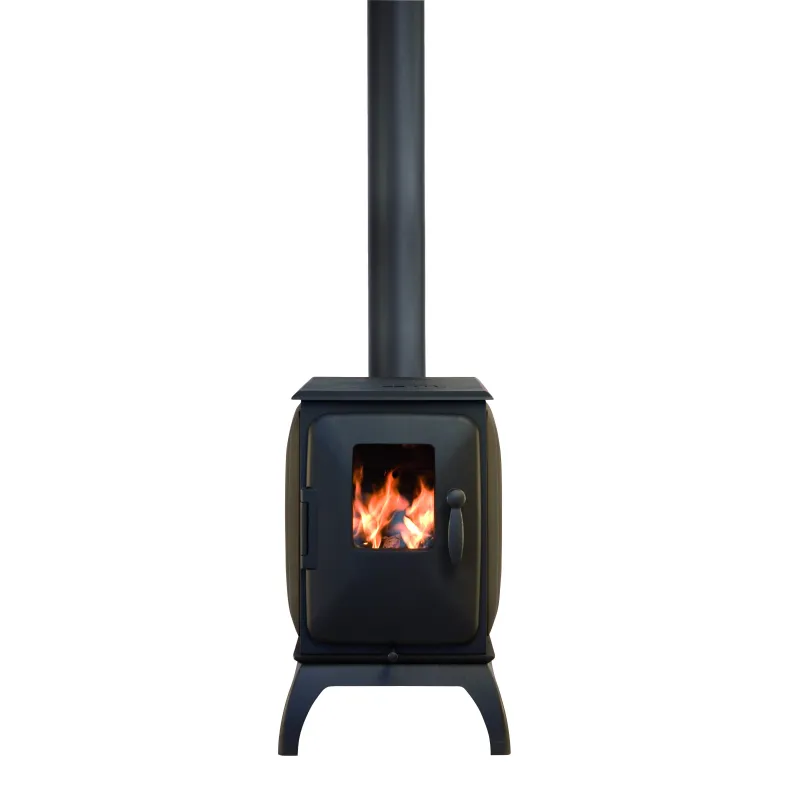

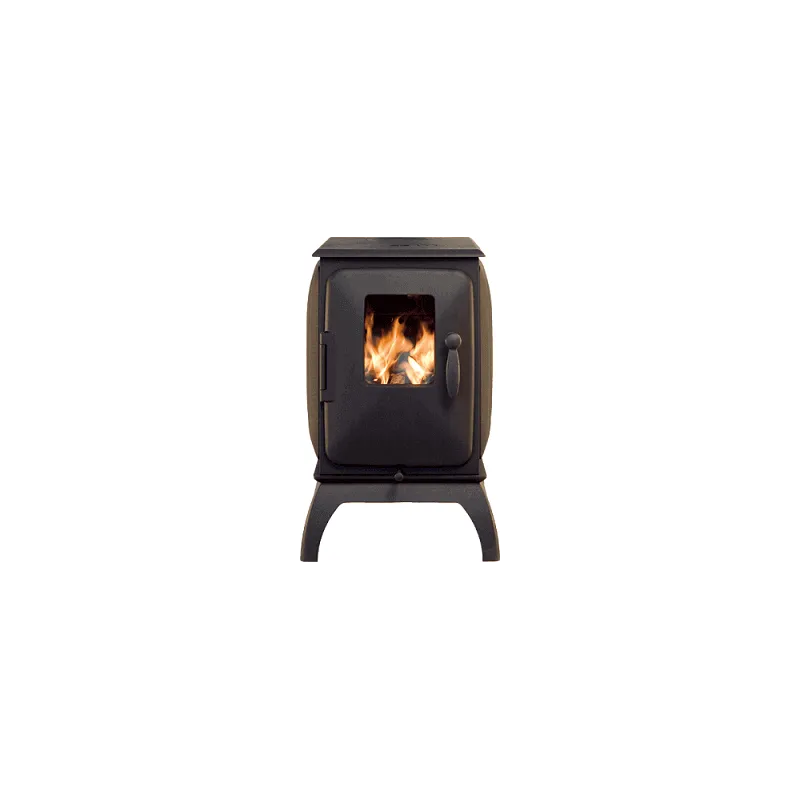

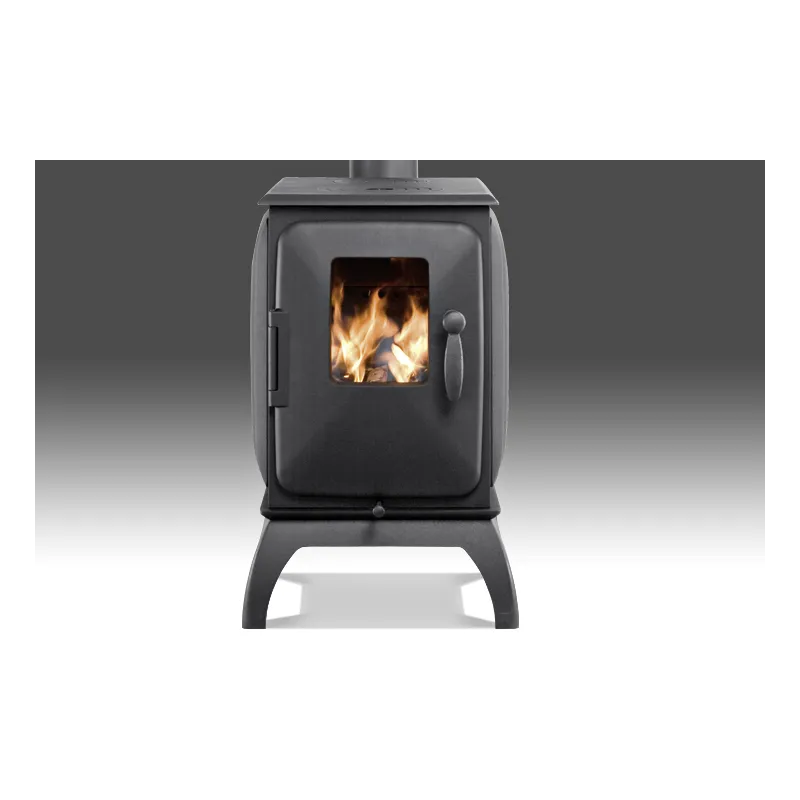

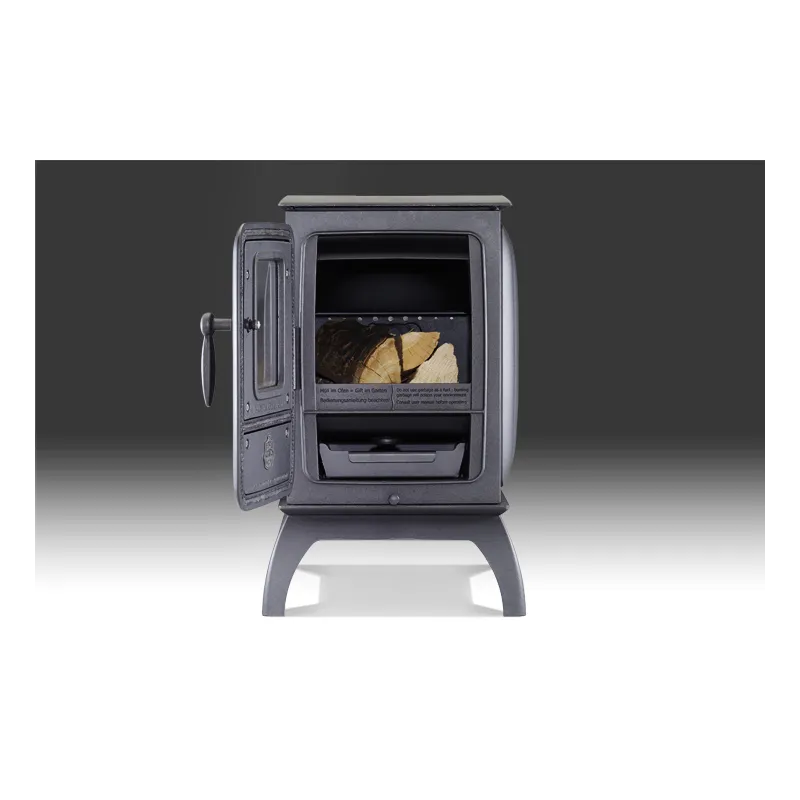

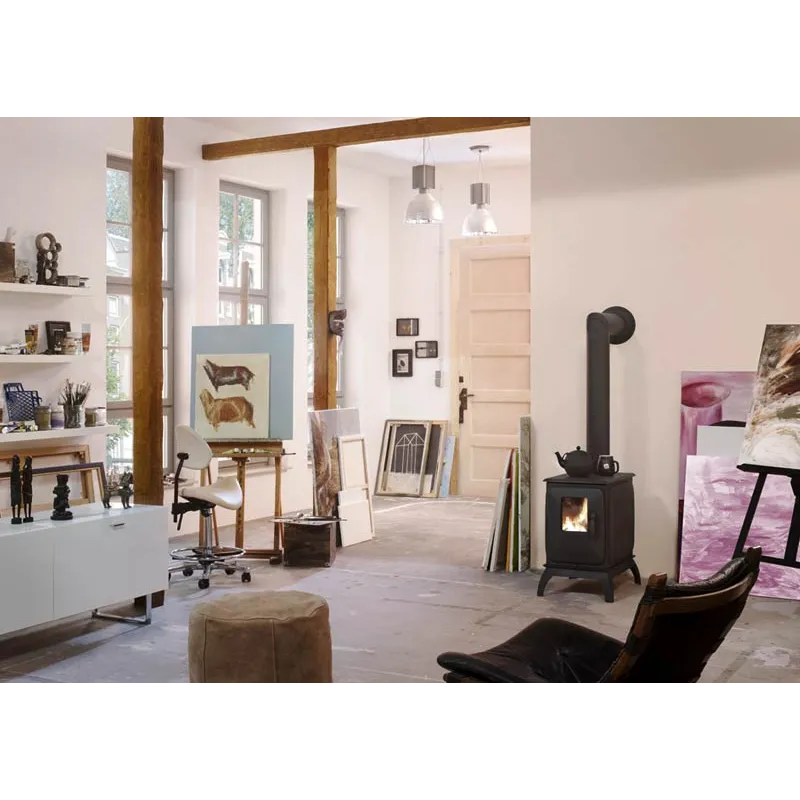

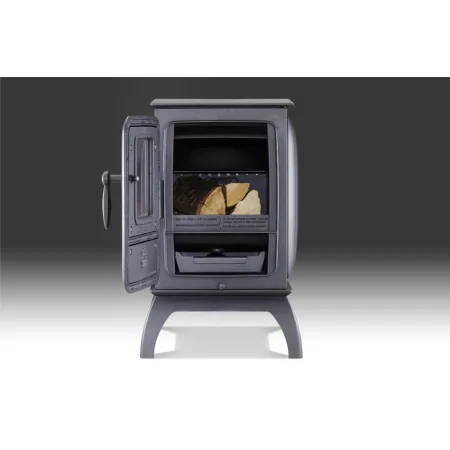

Brunner cast iron stove - Iron Dog No. 1
Some stoves stay with you all winter, others for life. The Brunner Iron Dog series will surprise you with its responsiveness, contemporary design and longevity. Made entirely of cast iron and the first of a range of 6 fireboxes, this appliance will serve as a heater, a cooker and a grill if you wish.
Options and lead time: contact us.
Sur Commande
Related products:
Technical characteristics:
- Nominal heat output: 7.0 kW
- Consumption/h: 2.0 kg
- Heating capacity: 50 - 90 m²
- Efficiency: 80.6 %
- Dimensions (H x W x D): 680 x 440 x 630 mm
- Glass area (H x W): 150 x 195 mm
- Firebox opening (H x W): 200 x 250 mm
- Flue connection: top/rear panel
- Flue pipe diameter: 130 mm
- Permitted fuel quantity: 1.5 - 2.5 kg
- Firebox depth: 400 mm
- Recommended log length: 250 - 330 mm
- Cast iron weight: 130 kg
- Combustion air requirement: 15 m³/h
- Regulations: complies with EN 13240
