Specifications
| Heat output (1 firing) | 12.5 kW |
|---|---|
| Useful heat output | 6.5 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 5 kg |
| Maximum wood load | 13 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |

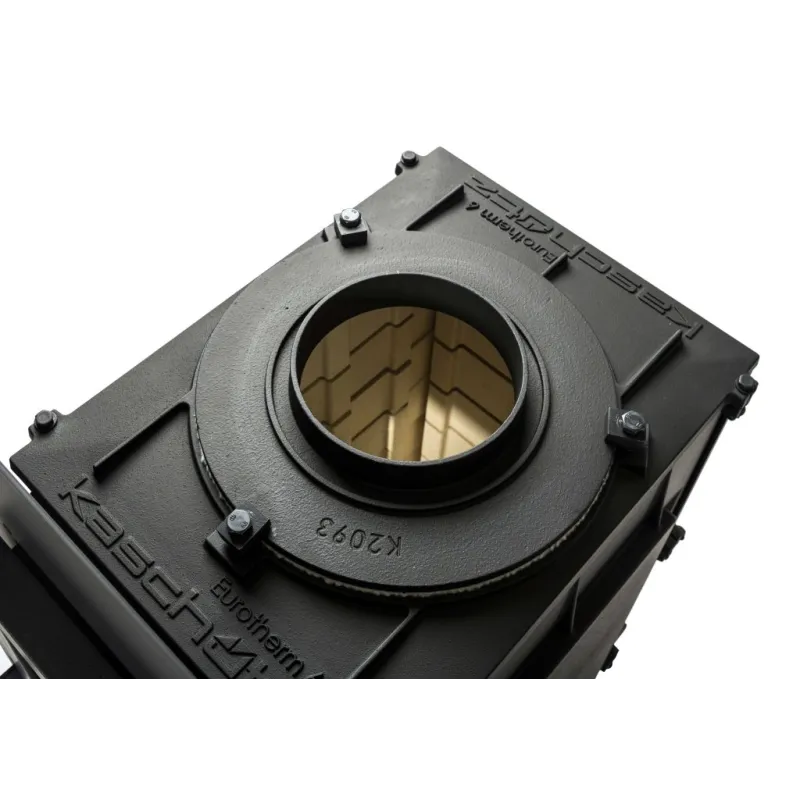

| Flue outlet | Ø 200 mm |
| Air inlet diameter | 180 or 200 mm |
| Air inlet | Ductable |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 44.2 g / s |
| Energy efficiency index (EEI) | 118.2 |
| Net weight | 240 kg |
| Standard | According to EN 13229 |
| Manufacturer | Kaschuetz |
| Origin | Austria |
Documentation:
Firetherm firebox manual (in French)
Firetherm firebox user manual
Firetherm 12 corner

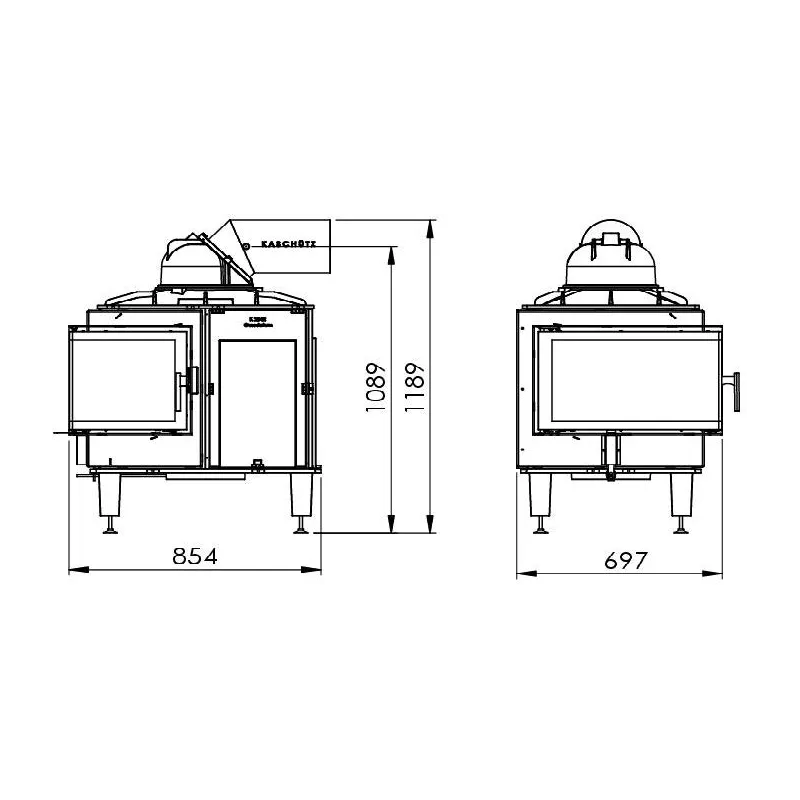

Firetherm 12 corner technical data sheet
Firetherm firebox assembly (in French)
Firetherm firebox installation manual

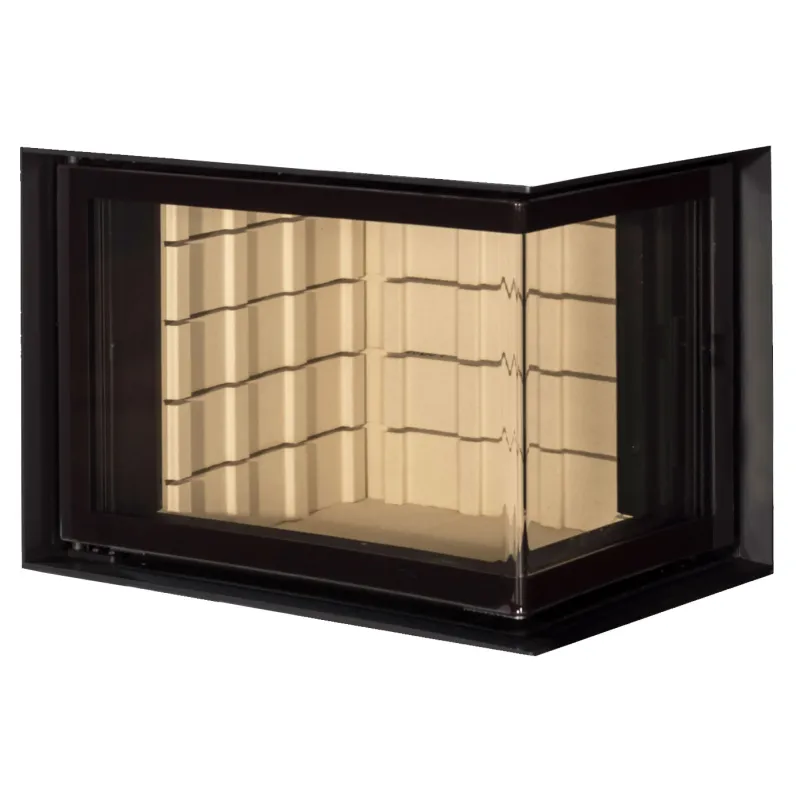

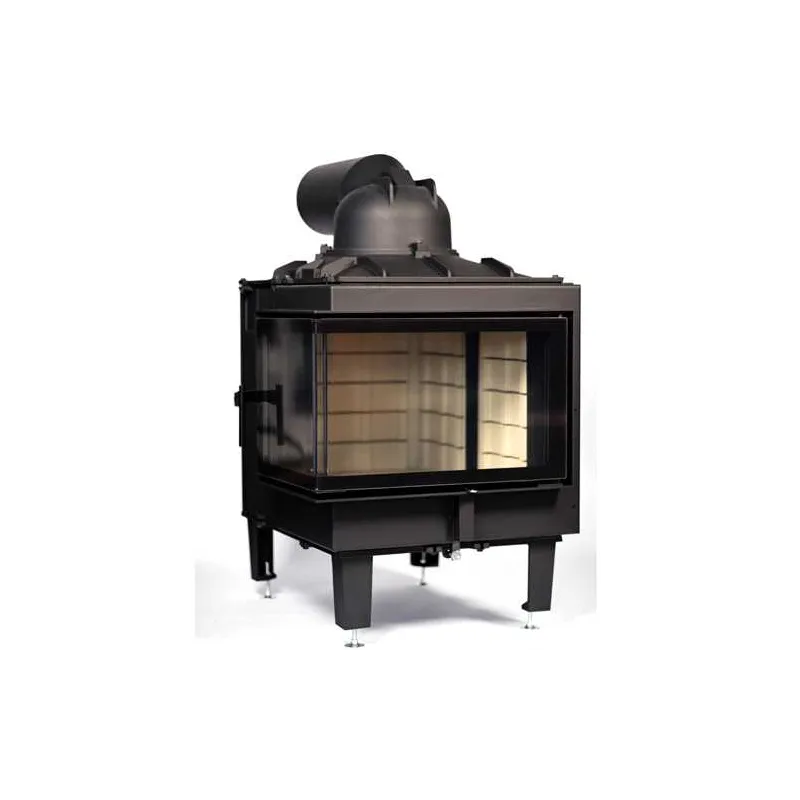

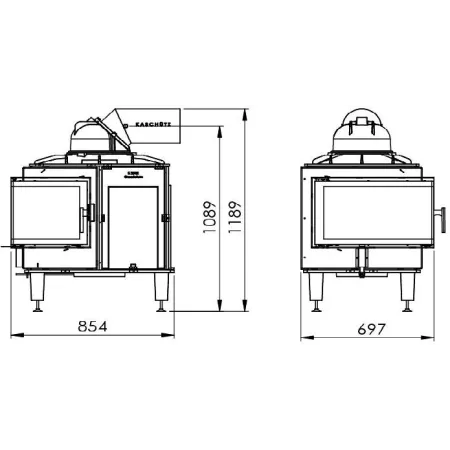

Firetherm 12 corner firebox - 12.5 kW / 13 kg
Specific 12.5 kW cast iron corner firebox for building high-quality made-to-measure heat-storage stoves, corner on the right or left to be specified.
- Energy efficiency class: A+
- Load: 5 to 13 kg per firing.
- Reloading interval: 4 h
- Nominal heat output: 12.5 kW
- Efficiency: >80 %
Sur Commande
Price:
€7,555.20
Tax included
Air inlet
Flue outlet
Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
Specific 12.5 kW cast iron corner firebox for building high-quality made-to-measure heat-storage stoves.
The Firetherm 12 corner stove insert for made-to-measure masonry heaters is a response to current trends and requirements in the field of design. The large corner doors with double glazing and horizontal orientation give a new dimension to heat-storage stoves.
It goes without saying that the technical parameters, the materials used and the uncompromising build quality surpass the products in this segment.
✅ Energy efficiency class: A+
✅ Load: 5 to 13 kg per firing.
✅ Reloading interval: 4 h
✅ Nominal heat output: 12.5 kW
✅ Efficiency: > 80 %
✅ Weight: 240 kg including 60 kg of refractory stones (grog)
✅ Combustion chamber dimensions: 430 (W) x 600 (D) x 510 mm (H)
