Specifications
| Material | Galvanised steel |
|---|---|
| Colour | Black |
| Length (overall) | 370 mm |
| Width (overall) | 370 mm |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Accessories |
Documentation:
Ecoten plate assembly (in French)

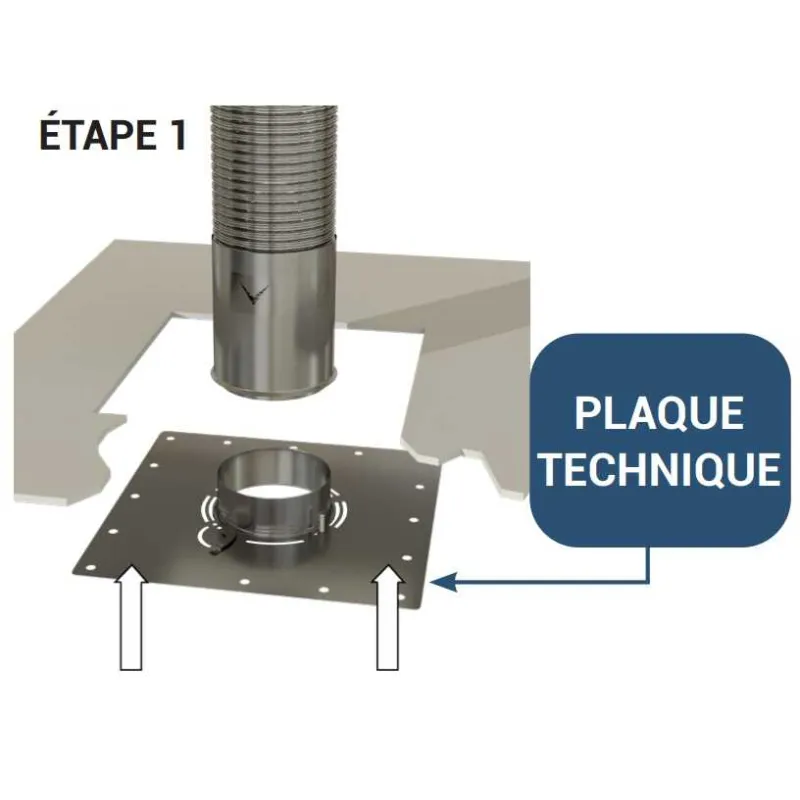

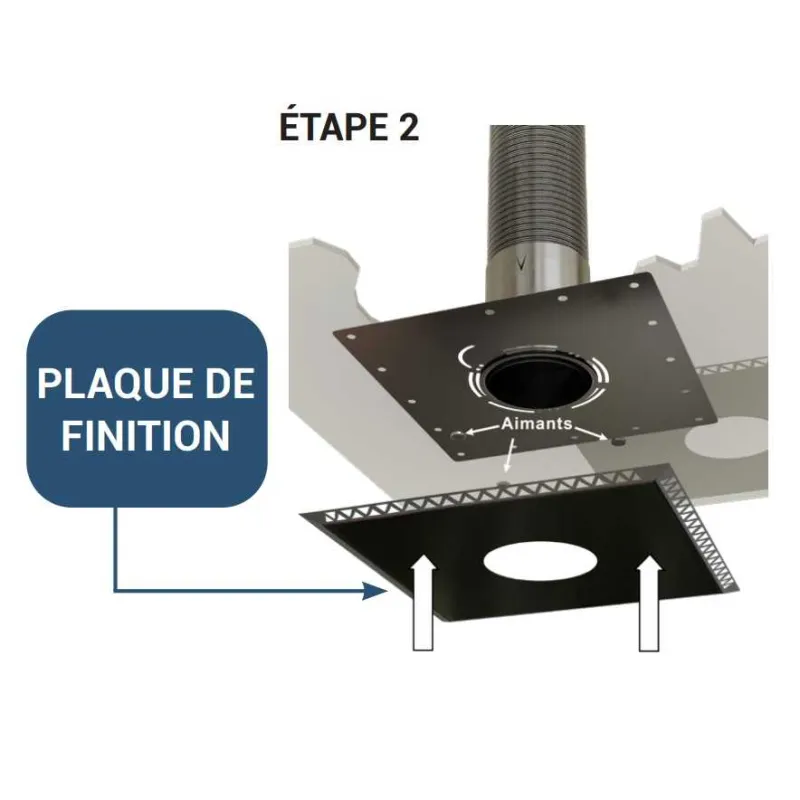

Assembly of Ecoten reinforced finishing plate
Reinforced black finishing plate - For flexible flue liner
The Ecoten black finishing plate is fixed to the ceiling: it hides the flue block visible in the room and gives a neat finish around the flexible flue liner. Its reinforced system is particularly recommended for carrying the extra weight of the clay pellets used for the thermal insulation of the flue. Available in various diameters.
Lead time: 2 to 3 weeks
Related products:

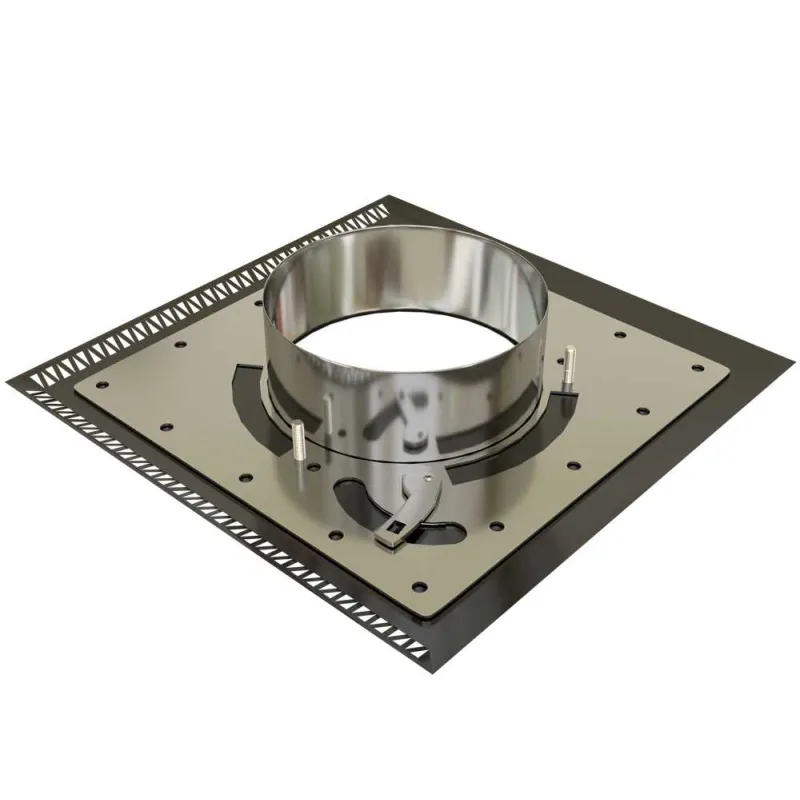

👉The 37 x 37 cm Ecoten reinforced finishing plate consists of a technical plate in galvanised steel and a finishing plate in black-lacquered stainless steel that attaches to it magnetically with 4 magnets. It is also fitted with a safety lock system that firmly secures the stainless steel stove to flexible flue liner connector and has perforations allowing bottom ventilation of the flue.
This reinforced system is particularly recommended when the masonry chimney flue is insulated with clay pellets or Biafeu, which adds extra weight at the bottom of the flue.
Fitting video:
https://m.youtube.com/watch?v=rp03pJzk-x0
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
