Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Connectors and adapters |
Documentation:
Stove - liner connector
Product sheet for stove to flexible liner connector

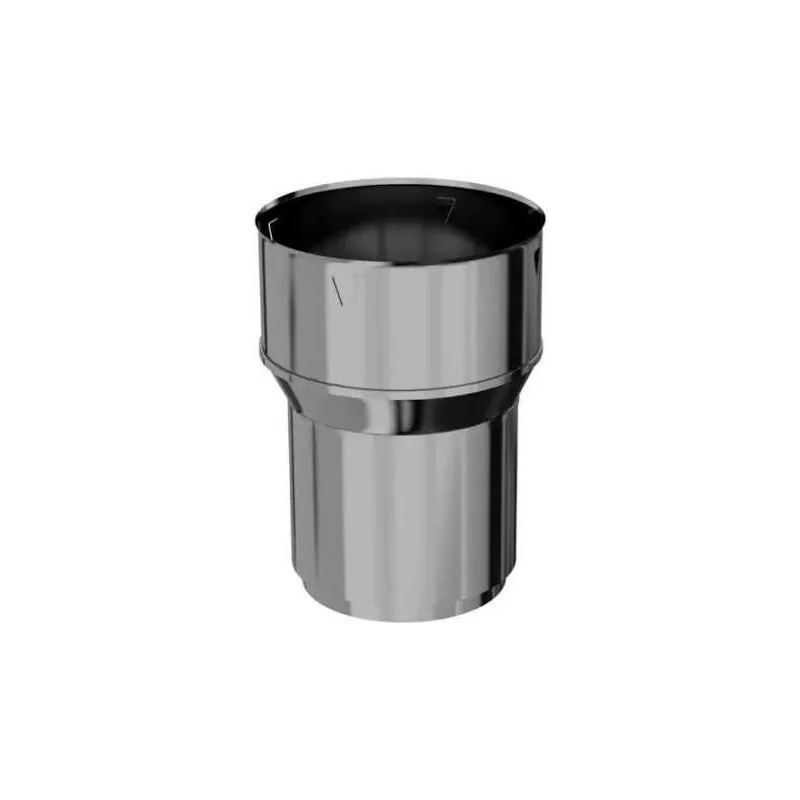

Sliding adaptor stove (M) to flexible flue liner (F)
Stainless steel adaptor allowing the flexible flue liner to be fitted to the rigid connecting flue pipe of the stove or of the wood-burning, pellet, etc. appliance. Its ingenious twin wall system allows the stove pipe to be fitted and removed easily. Available in various diameters with male socket on the stove side (bottom) and female socket on the flexible side (top) and option to change diameter.
Lead time: 2 to 3 weeks
Related products:
👉 The rigid to flexible adaptor in 304 stainless steel is an essential element for ensuring a sealed and secure connection between the rigid connecting flue pipe of the heating appliance and the flexible chimney liner.
Its ingenious design allows the stove pipe to be fitted and removed easily: indeed, on the stove side the adaptor is male and has a height of 12 cm in twin wall, which allows the rigid flue pipe to be pushed up into it so that it can be removed, cleaned and refitted easily. With this type of adaptor, there is no longer any need for a sliding stove pipe!
On the flexible side, the adaptor is female and the liner is held by a system of lugs that ensure a solid fixing.
➡️ For a flawless finish, we recommend combining this connector with the square finishing plate for flexible flue liner or with the round finishing plate with rosette.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
