Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Connectors and adapters |
Documentation:
Connector on connection plate (in French)

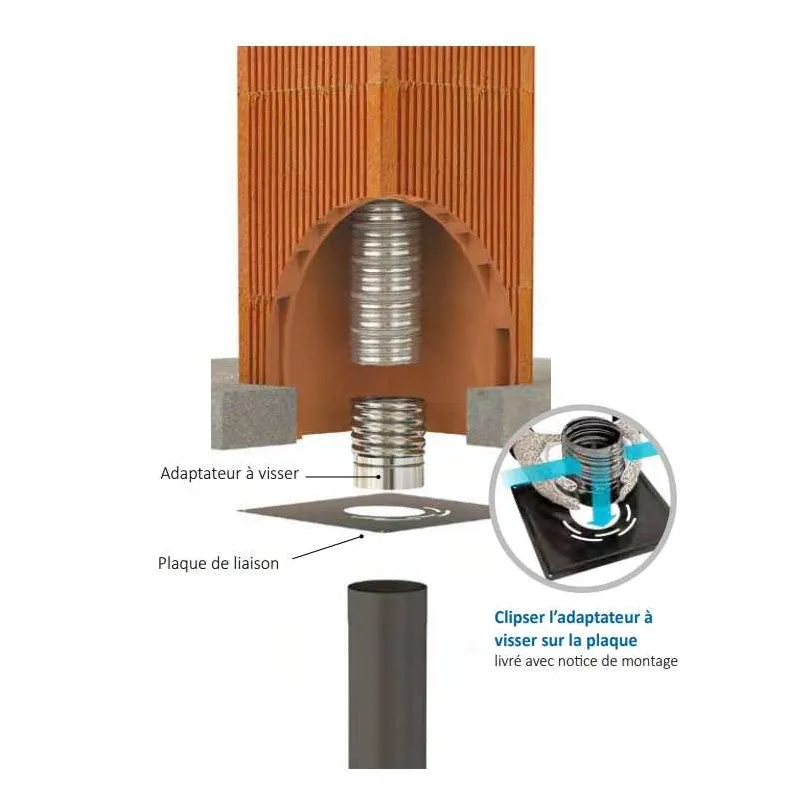

Assembly of screw-on connector and connection plate

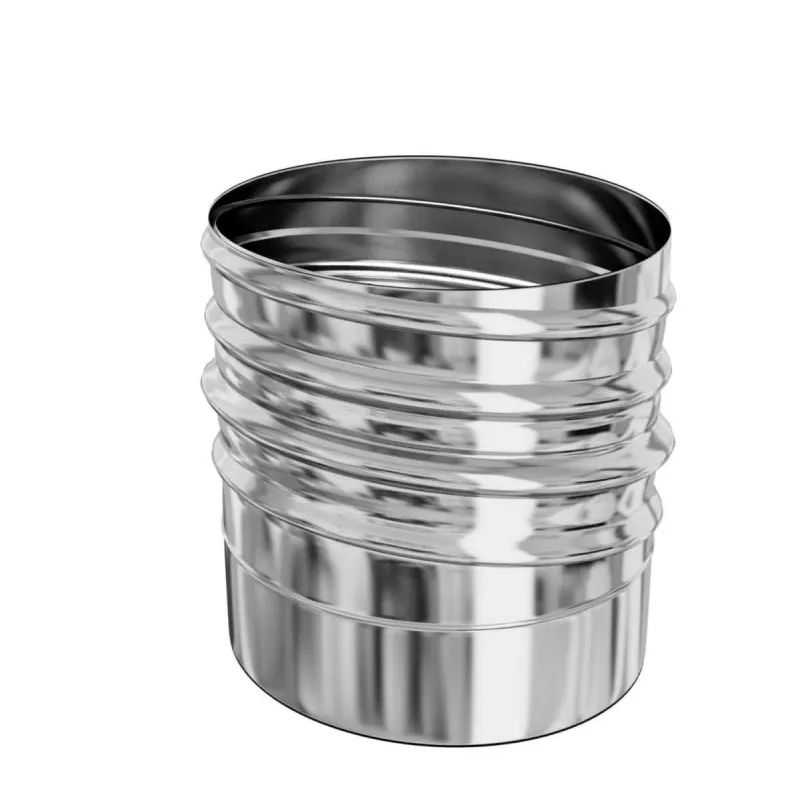

Screw-on connector, stove (M) to flexible flue liner (F)
Screw-on stainless steel connector for joining the flexible flue liner to the rigid connecting flue pipe of the stove or wood- or pellet-burning heating appliance... For a flawless finish, this connector should be combined with the black connecting plate.
Available in various diameters with a Male socket on the stove side (bottom) and a Female socket on the liner side (top) and option to change diameter.
Lead time: 2 to 3 weeks
Related products:
👉 The screw-on stainless steel rigid-to-flexible connector in 304 stainless steel is an essential component for a tight, secure connection between the rigid connecting flue pipe of the heating appliance and the flexible chimney liner.
Easy to install, it fits onto the flexible liner by screwing onto it, giving a stable, lasting fixing.
The connector is Male on the stove side (bottom) and Female on the liner side (top).
➡️ For a flawless finish, we recommend combining this connector with the black connecting plate.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
