Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Black |
| External diameter | 400 mm |
| RAL paint | RAL 9005 |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | 1 mm enamelled steel single-wall flue Double-skin flexible liner |
| Flue type | Accessories |
Documentation:
Magnetic finishing rosette (in French)
Magnetic finishing rosette assembly

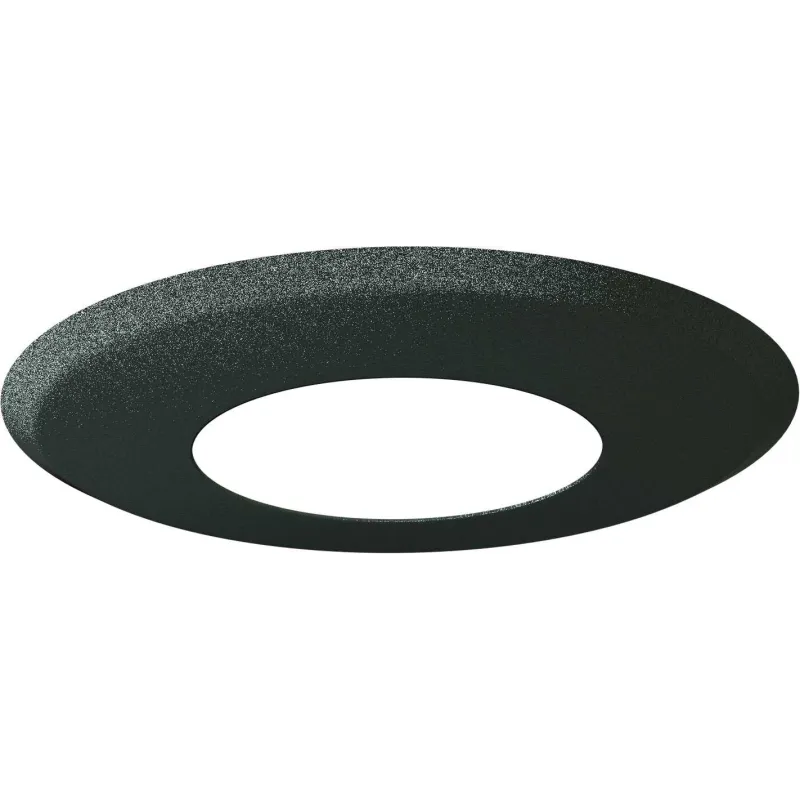

Magnetic finishing rosette - For flexible flue liner
Black magnetic finishing rosette to be fixed to the ceiling or wall, giving a clean, elegant finish in your room by concealing the entry of the flexible flue liner. To be combined with the stove-to-flexible-liner connector and the square finishing plate. Also compatible with 1 mm enamelled steel and 2 mm painted steel connecting flue pipes. Available in different diameters.
Lead time: 2 to 3 weeks
Related products:
👉 This black finishing rosette gives an impeccable look at the stove / liner connection. It can be installed in different ways, either on its own on the wall, or on the ceiling combined with a finishing plate.
➡️ For ceiling installation, it is advisable to use stove to flexible flue liner adaptor and then fix it (via its system of 3 x 2 magnets, included) to the square finishing plate for flexible flue liner, which conceals the ventilation slots of the latter while ensuring the low-level ventilation of the flue thanks to the thickness of the magnets.
➡️ For wall installation, the rosette is simply positioned on the wall using the 3 magnets (supplied), to be screwed to a non-combustible wall, thus hiding the gap around the flue.
Ceiling installation:
https://youtu.be/vRwJIRoHmu8?si=ESl6CJL176G0Zi2Y
Wall installation:
https://youtu.be/vRwJIRoHmu8?si=TByLG8Al5f4KfjYR
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
