Specifications
| Material | Galvanised steel |
|---|---|
| Colour | Black |
| Finish | Gloss |
| Length (overall) | 400 mm |
| Width (overall) | 400 mm |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Accessories |

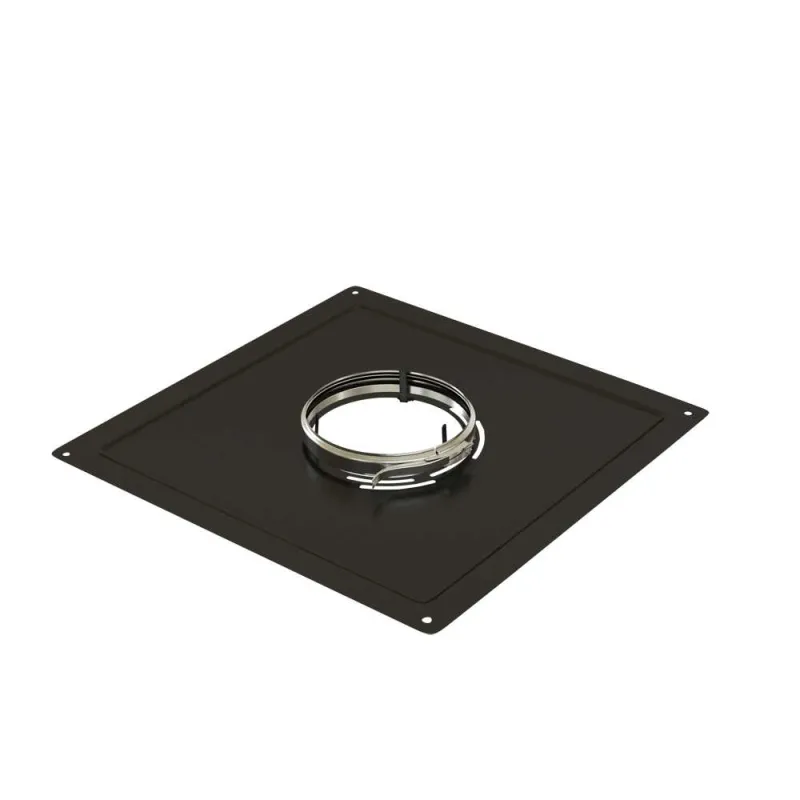

Square finishing plate - For flexible flue liner
Square trim plate in white or black lacquered galvanised steel, giving a clean, elegant finish in your room by concealing the entry of the flexible flue liner at the ceiling or wall. To be combined with the stove-to-flexible-liner connector. Available in black and white and in different diameters.
Lead time: 2 to 3 weeks
Related products:
👉 The 400 x 400 mm square galvanised steel trim plate gives a neat finish and a harmonious look at the ceiling or wall: it conceals the joints between the flue and the wall while improving the seal by limiting infiltration.
Its built-in system allows the stainless steel stove to flexible flue liner connector to be fixed to it, and its discreet slots ensure good ventilation of the assembly. It is available in White (RAL 9016) or matt black (RAL 9005).
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
