Specifications
| Material | Steel |
|---|---|
| Colour | Black |
| Finish | Matt |
| Wall thickness | 2 mm |
| Maximum service temperature | 1000°C |
| Standard | According to EN 1856-2 |
| Origin | Poland |
| Flue range | 2 mm painted steel single-wall flue |
| Flue type | Bends |
Documentation:

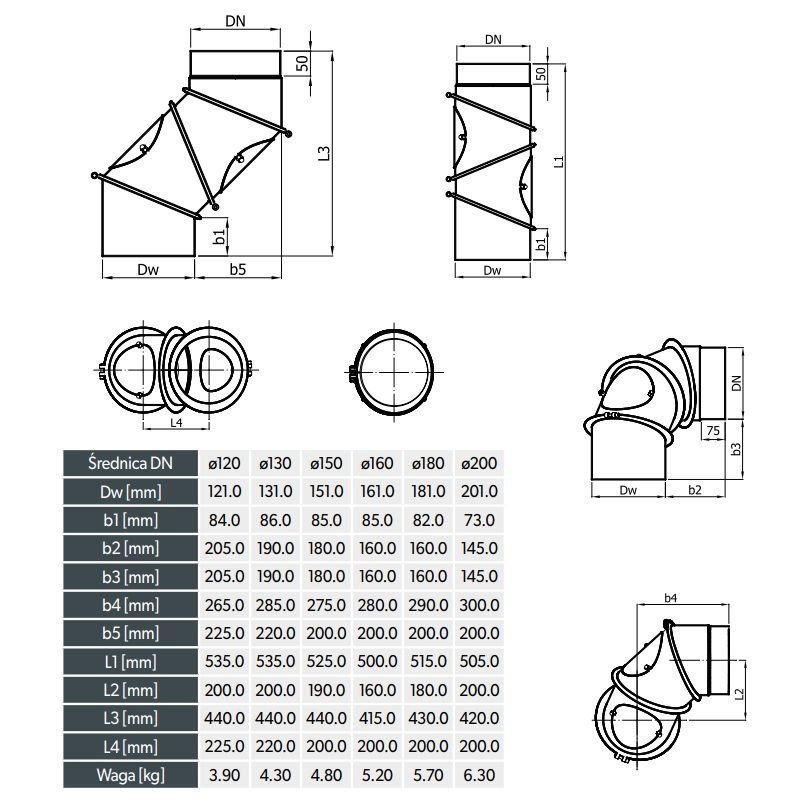

0-135 bend diagram
0-135 bend diagram
2 mm painted steel range
Declaration of performance, 2 mm painted steel - SPK range

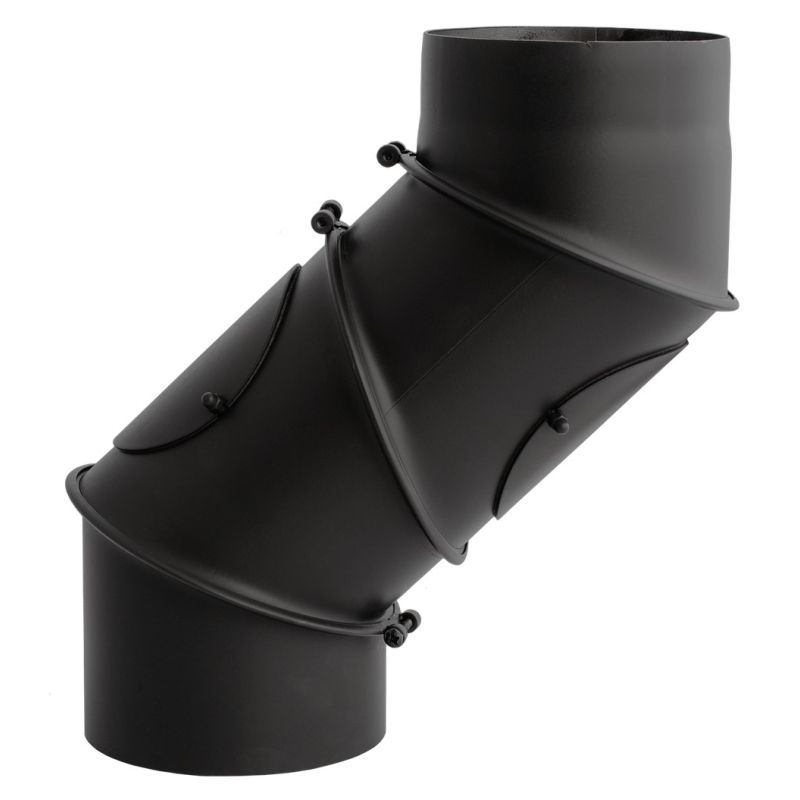

Adjustable 0 to 135° elbow with inspection hatches - 2 mm painted steel flue pipe
Adjustable 0 to 135° elbow in 2 mm painted steel single wall, fitted with 2 inspection hatches for easy maintenance, for connecting the stove to the chimney flue of individual wood-burning heating appliances while managing the offset in an attractive way.
Available in diameters of 150, 160, 180 and 200 mm.
En stock
👉 The adjustable 0 - 135° elbow in 2 mm black painted steel neatly connects the wood-burning heating appliance to the chimney flue with an offset of up to 135°.
A 135° offset is very often achieved using 2 x 45° elbows: the 0-135° elbow thus makes installation easier by using just one element.
Once adjusted, its 3 included clamping collars lock the elbow at the chosen angle.
Its special feature is that it is fitted with 2 inspection hatches for easy cleaning.
Its 50 mm male/female spigot is perfectly smooth and gives an impeccable finish.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
➡️ Coated with a black Senotherm paint that needs to be brought up to temperature to be "cured", it can be useful to get a refractory spray paint for a few touch-ups during installation.
What are the advantages of 2 mm painted steel?
✅ Withstands high temperatures of up to 1000°C.
✅ Does not deform under the effect of heat
✅ Substantial 2 mm thickness that ensures robustness and safety over time
✅ Excellent value for money
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
🔥2 mm painted steel flue pipes are designed to operate under N1 (40 Pa) sealing conditions up to 600° (T600) but can withstand temperatures of up to 1000°C.
