Specifications
| Material | Cast iron |
|---|---|
| External diameter | 263 mm |
| Internal diameter | 241 mm |
| Thickness | 21 mm |
| Net weight | 4 kg |
| Manufacturer | Pisla |
| Origin | Finland |
| Cooking surface | Cast iron |
Documentation:
2KL cooking ring diagram
Dimensioned drawing of the 1KL cast iron cooking ring
Ring for 2KL cast iron hob plate
2KL cast iron cooking ring, 263 mm diameter, for the HTT 5A cast iron hob plate, used in the construction of masonry cookers, masonry heaters...
Last items in stock
Related products:

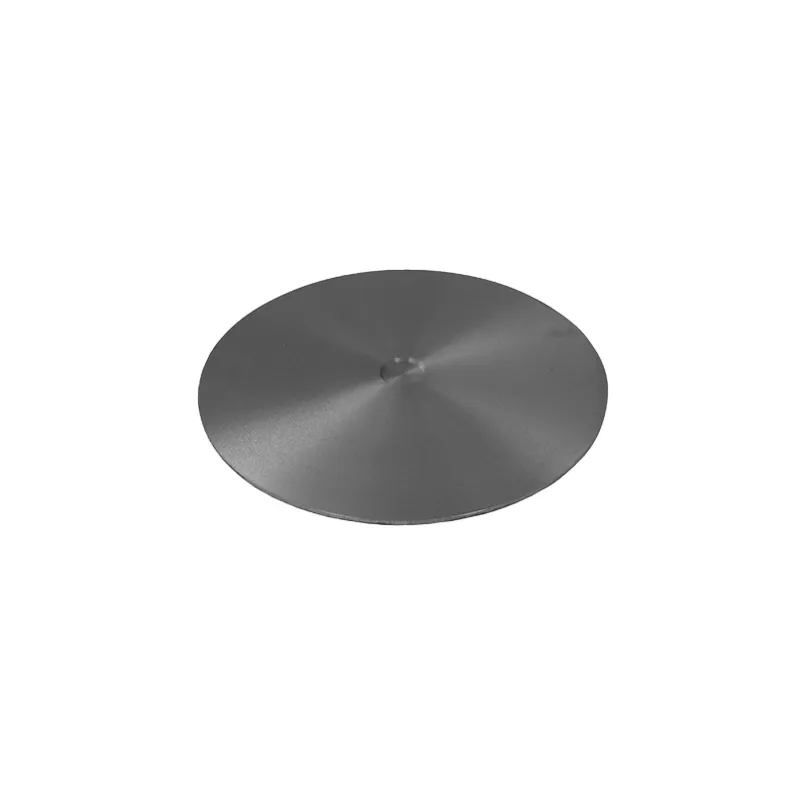

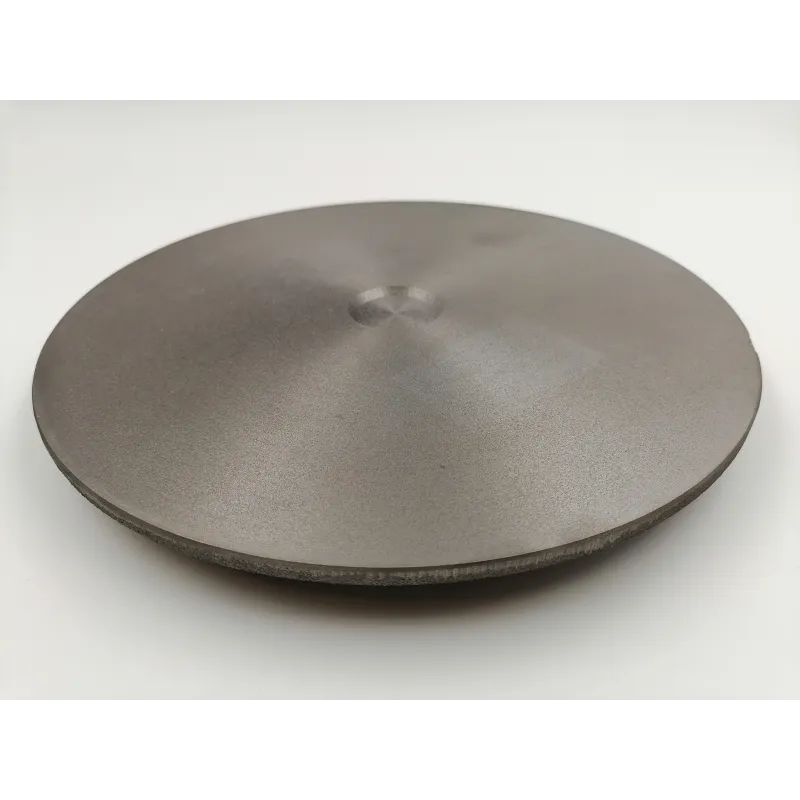

👉 This 2KL cooking ring, also called a hotplate, is made entirely of cast iron: it therefore withstands high temperatures and stores heat to release it evenly and for a long time.
Ideal for simmering, this 263 mm diameter cooking ring is one of the components of the HTT 5A cast iron hob plate.
Technical characteristics:
✅ Outer diameter: 263 mm
✅ Inner diameter: 241 mm
✅ Total thickness: 21 mm
✅ Weight: 4 kg

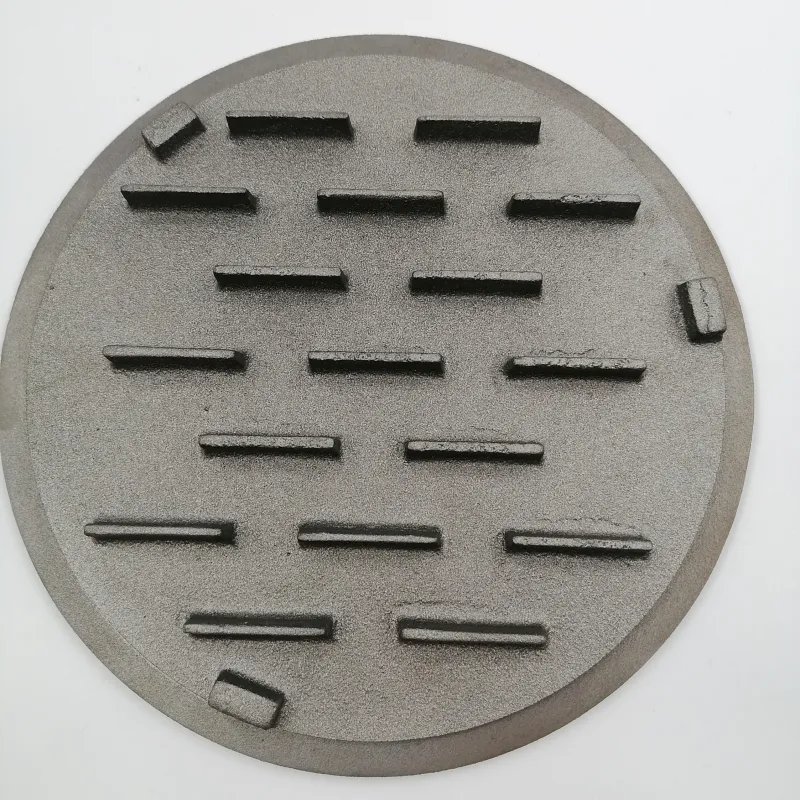

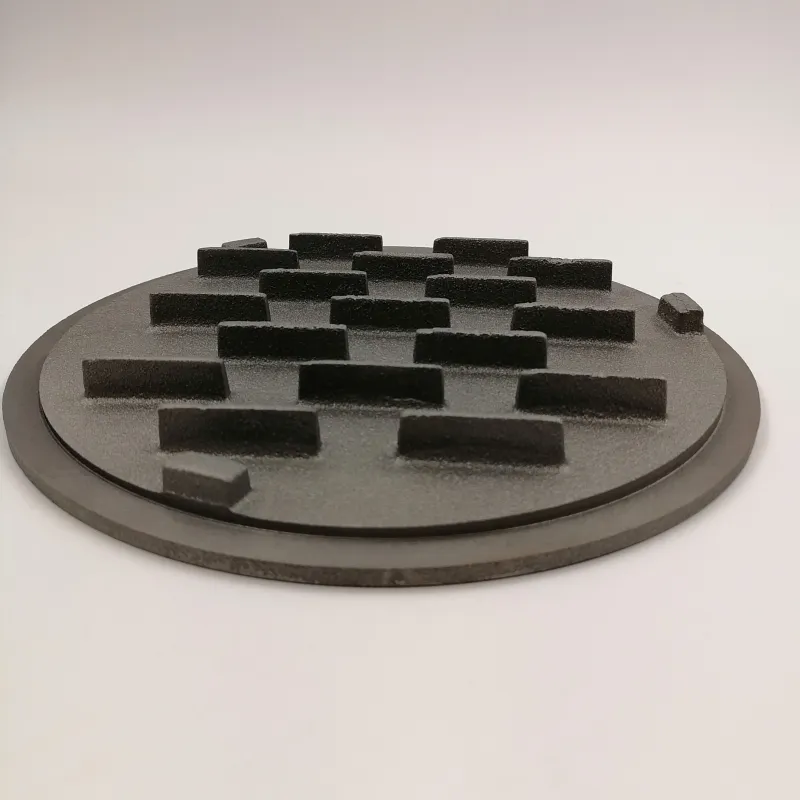

✅ Ribbed underside for better heat distribution
Fitting advice:
🔥 When designing, always allow a small expansion gap (a few millimetres) between the cast iron plate and the frame in firebricks or refractory stone. Cast iron expands when it heats up: without a gap, it could crack your masonry.
We therefore recommend using a glass fibre rope and/or a refractory sealant to allow for this expansion and ensure a perfect seal.
Care advice:
➡️ Before first use, rub the rings with a little vegetable oil and heat gently: this creates a natural protective layer against corrosion.
➡️ For cleaning, a simple brushing is enough.
⚠️ Avoid thermal shock and never pour cold water on a hot plate, as this could crack the cast iron.
