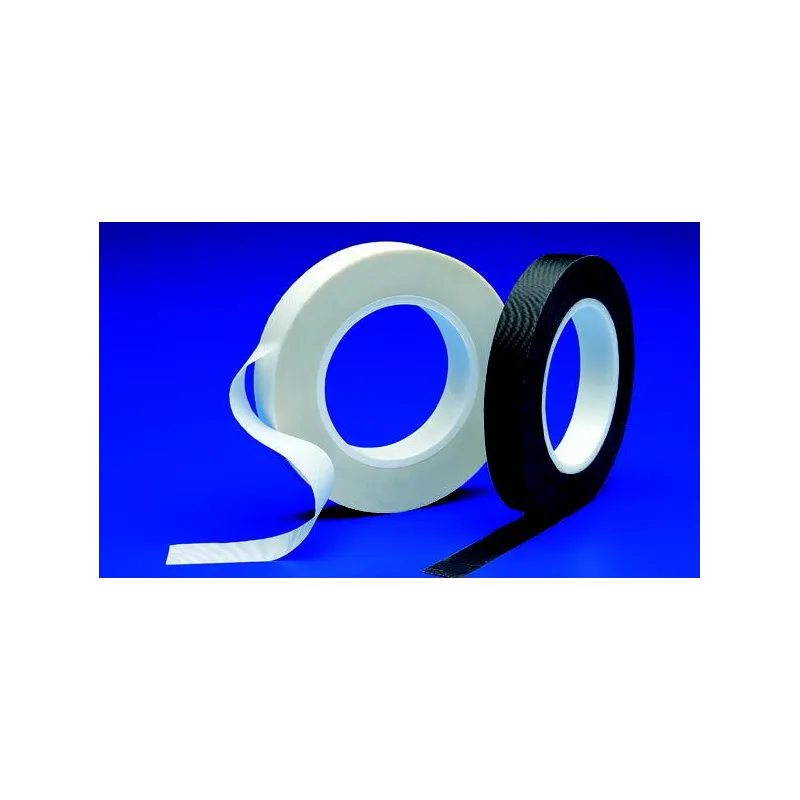

Glass fibre adhesive tape

Glass fibre adhesive tape for electrical insulation, impregnated, adhesive on one side, made from a blend of natural rubber with resins and fillers such as titanium oxide. It is particularly recommended for finishing the ends of braids because, being glass fibre based, it withstands high temperatures; the braid is thus more compact and does not fray after cutting.

Dimensions:

• Length: 50m
• Thickness: 2mm
• Width: 30mm

Applications:

Industrial furnaces, bread ovens or other situations that require braids to be cut and then jointed to size. For the electrical sector: small and medium transformers, electric motors, windings and coils.

Characteristics:

• Colour: white - black
• Thermal class: 130 (B)°C
• Operating temperature: 130°C
• Backing thickness: 100 ÷ 120 µm
• Total thickness: 160 ÷ 165 µm
• Adhesion to steel: 3 ÷ 4 N/cm
• Adhesion to backing: 1 ÷ 2 N/cm
• Elongation: 5%
• Breaking load: 280 N/cm
• Breakdown voltage: 2.5 kV
• Electrolytic corrosion: 1
• Density: 1.0 - 1.3 g/cm3
• Solubility in water: insoluble
