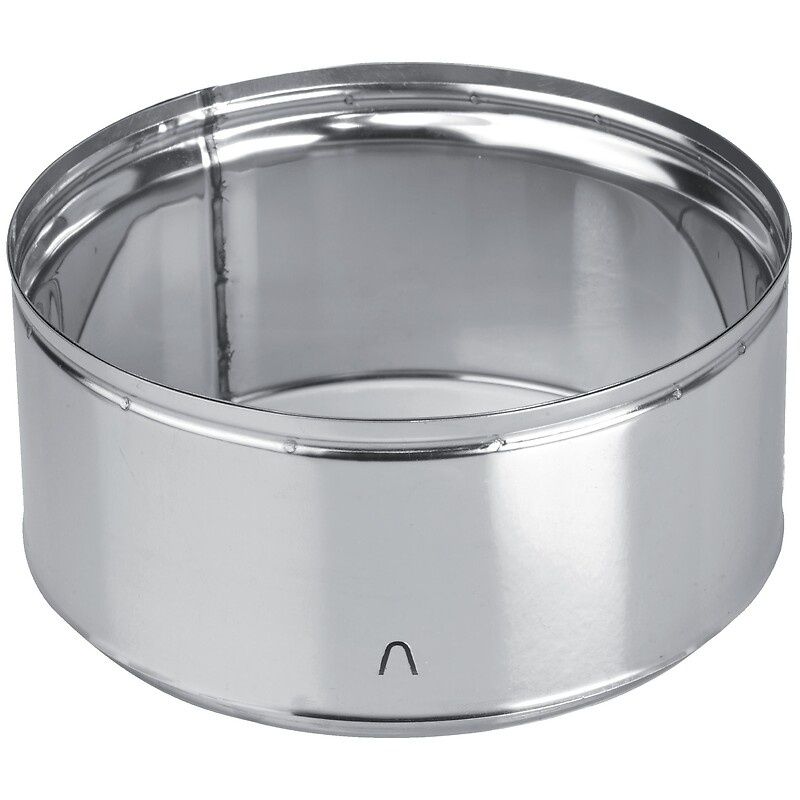

Top finishing cap - For flexible flue liner

👉 The 304 stainless steel cap is an essential component for finishing the top of the lined chimney flue, in accordance with DTU 24.1.

It serves several purposes:

➡️ Protection during sweeping: This is its main role. When the sweeping brush passes through, the bristles may catch and tear the inner strip of the flexible liner (especially at the top flue outlet). The cap covers the end of the flexible liner to guide the brush through without damage.

➡️ Holding the liner: The TEN cap has small internal metal lugs that "clip" onto the coils of the flexible liner, providing an excellent mechanical hold.

➡️ Sealing and finish: It gives a clean finish at the top of the chimney stack.

➡️Cowl support: It provides a stable base for fixing the chimney cowl (Chinese hat, anti-downdraught cowl, etc.).

⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm

In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
