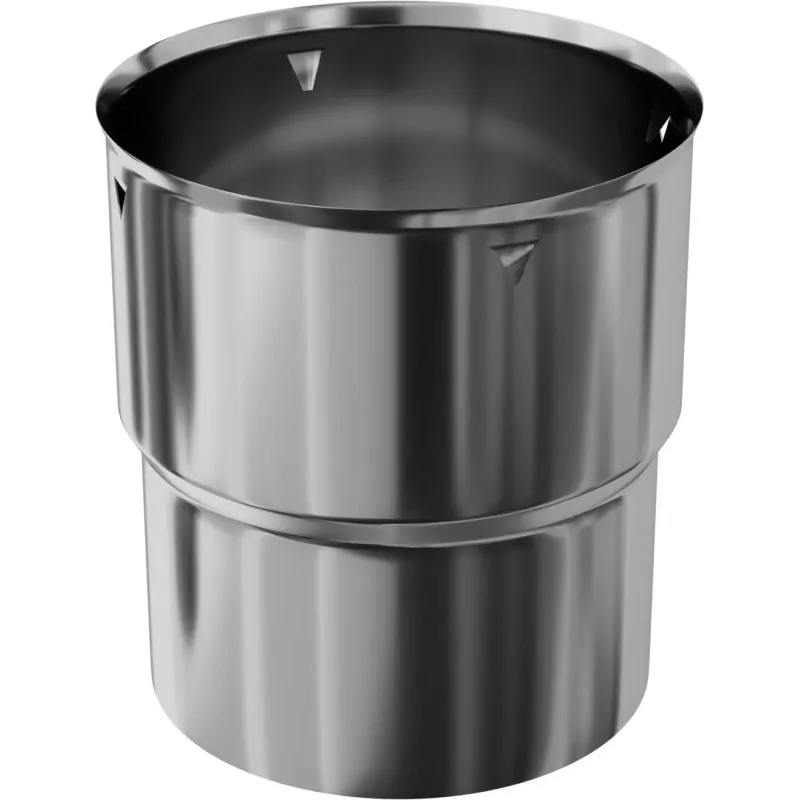

Standard connector, stove (M) to flexible flue liner (F)

👉 304 stainless steel connector for reducing the diameter between the flexible flue liner and the connecting flue pipe of the wood or pellet stove...
- The connector is male on the stove side (bottom) and female on the liner side (top).
- Its lug retaining system ensures a firm fixing of the flexible flue liner...

➡️ For a reinforced fixing, combine it with the claw hose clamp.

🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.

⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm

In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
