Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Length (overall) | 350 mm |
| Width (overall) | 350 mm |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Flashings and collars |

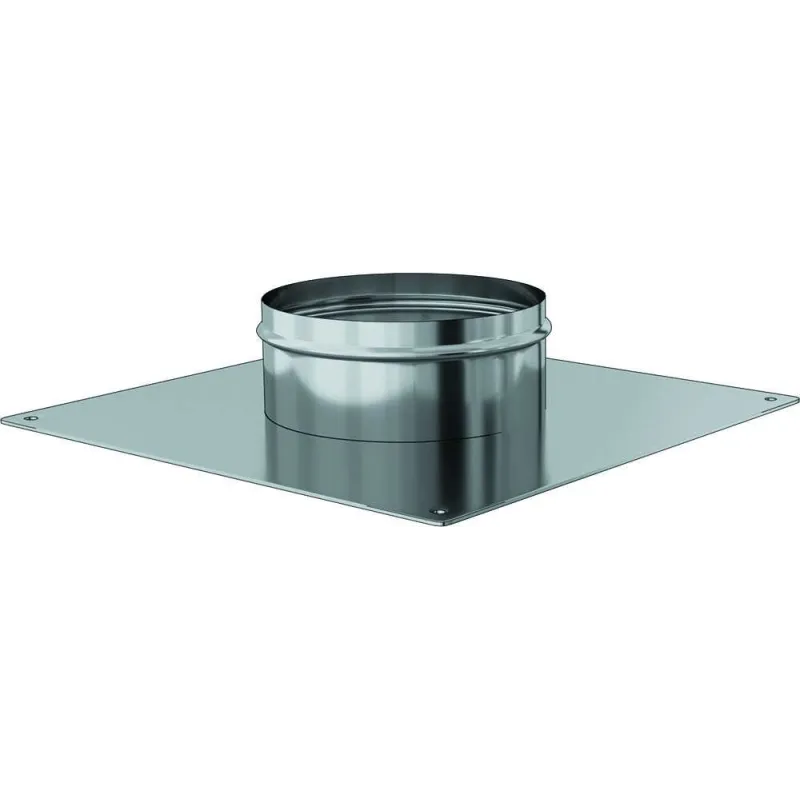

Square stainless steel sealing plate - For flexible flue liner
Square 304 stainless steel plate for sealing between the roof outlet and the flexible flue of wood-burning heating appliances such as wood stoves, fireplaces, inserts, masonry heaters, as well as pellet boilers and pellet stoves. Must be combined with the screw-on terminal. Available in various diameters.
Lead time: 2 to 3 weeks
Related products:
👉 The 304 stainless steel sealing plate is an essential element for the top finish of the flexible flue: it holds the flexible flue liner at the top and prevents rainwater getting in at the liner ventilation. In 304 stainless steel, square, its dimensions of 350 x 350 mm suit most installations.
Its built-in finishing spigot protrudes 60 mm for maximum stability. The flexible flue liner must protrude far enough from the finishing spigot to allow the screw-on terminal and then the rain cap or the anti-downdraught cowl.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
