Specifications
| Material | F17 stainless steel |
|---|---|
| Colour | Black |
| Finish | Gloss |
| Length (overall) | 400 mm |
| Width (overall) | 400 mm |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Accessories |
Documentation:
Connector on connection plate (in French)

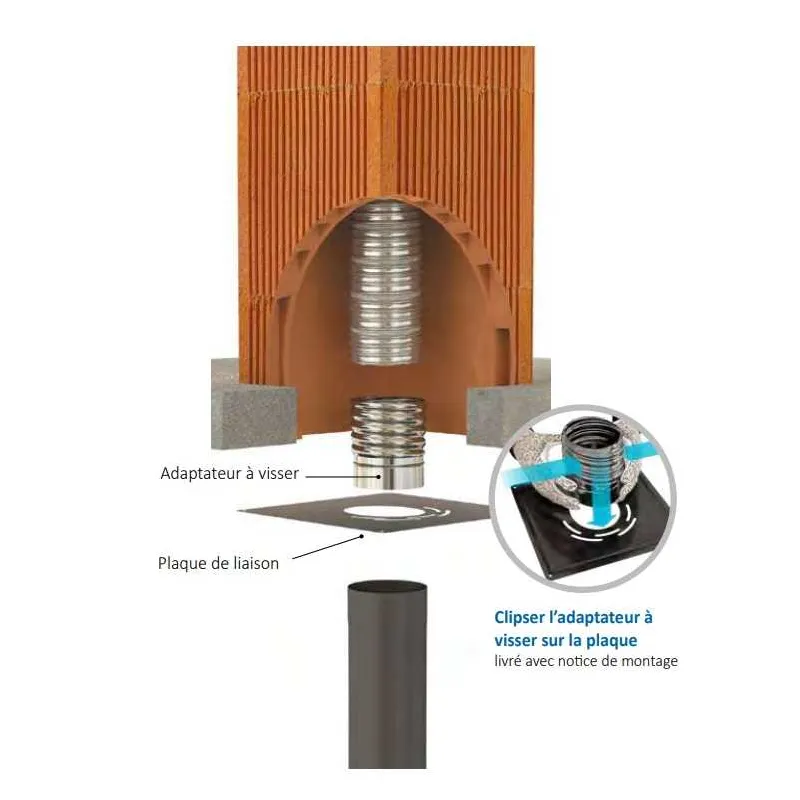

Assembly of screw-on connector and connection plate

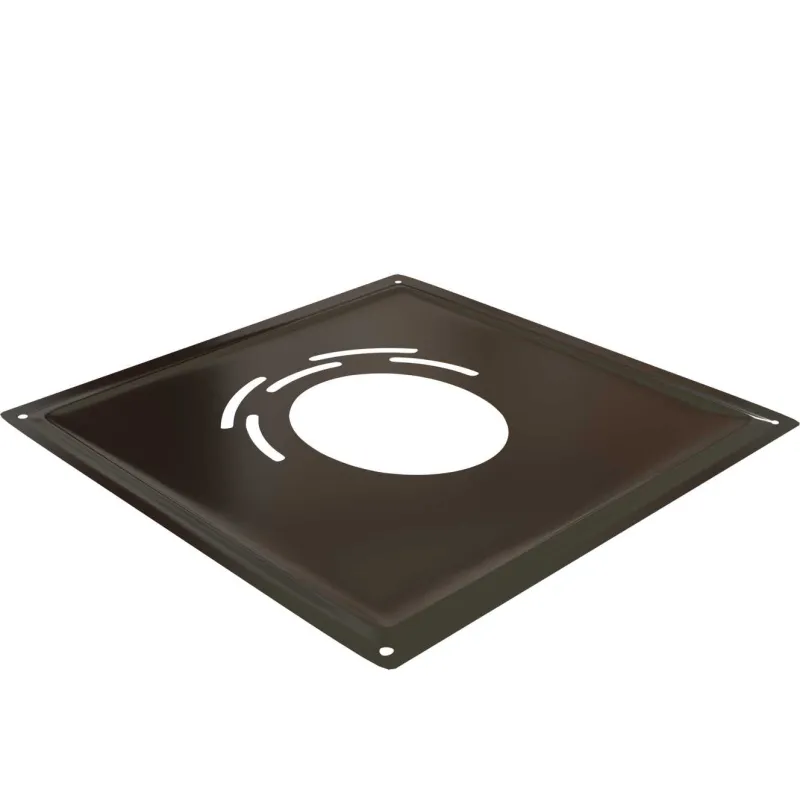

Black connecting plate - For flexible flue liner
Black connecting plate to be fixed to the ceiling, both hiding the flue block visible in the room and providing a fixing for the screw-on connector at the bottom of the flexible flue liner. Available in various diameters.
Lead time: 2 to 3 weeks
Related products:
👉 The 400 x 400 mm connecting plate in black-lacquered stainless steel gives a neat finish and a harmonious look on the ceiling or wall: it hides the flue block visible in the room and provides a fixing for the screw-on stove to flexible flue liner connector so that the heating appliance's connecting flue pipe can be connected.
Its discreet slots ensure good ventilation of the installation.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
