Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Accessories |
Documentation:
Screw-on terminal for flue liner
Product sheet for screw-on stainless steel terminal for flexible liner

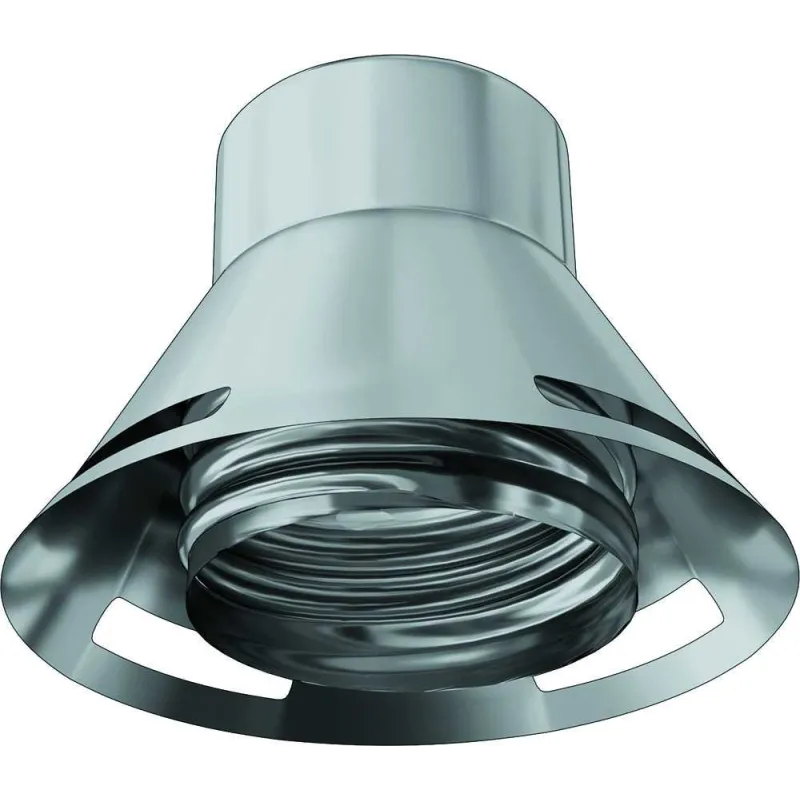

Screw-on stainless steel terminal - For flexible flue liner
Screw-on stainless steel terminal for twin-skin flexible flue liner, providing top ventilation: it sits on the sealing plate and allows the rain cap to be fixed.
Lead time: 2 to 3 weeks
Related products:

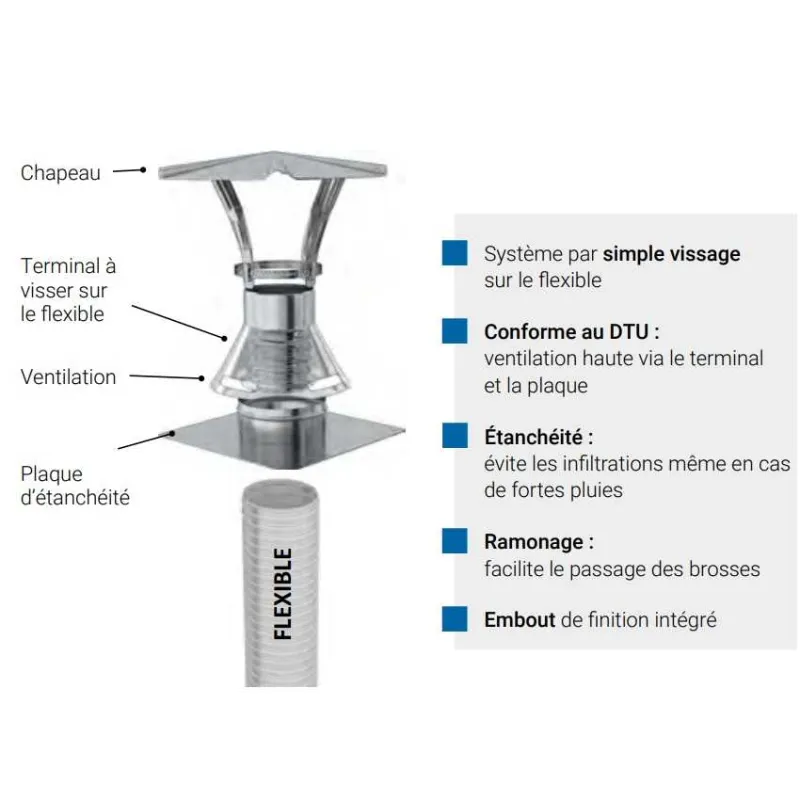

👉 The 304 stainless steel terminal simply screws onto the flexible liner through the sealing plate and provides the top ventilation required by the DTU. It also ensures a seal by covering the gap between the sealing plate and the liner, while allowing stable fixing of the rain cap.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
