Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Tees |

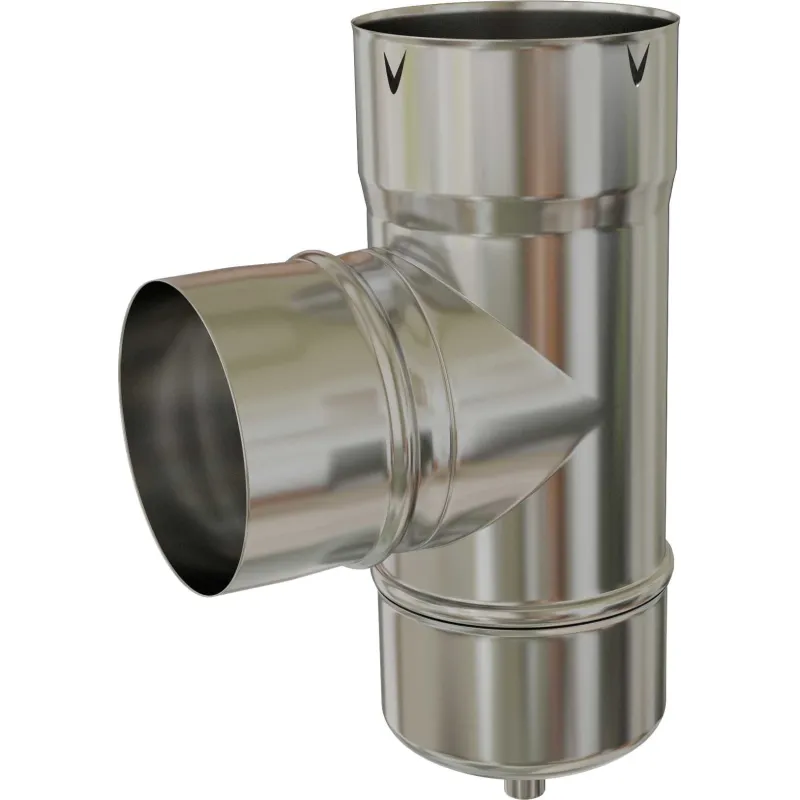

90° tee with drain cap - For flexible flue liner
90° double-socket tee with drain cap allowing the heating appliance to be connected directly to a flexible flue liner. Easy to install thanks to its lug retaining system.
In 304 stainless steel, available with a male or female branch to be chosen when ordering, and in various diameters.
Lead time: 2 to 3 weeks
Related products:
👉 Thanks to its double socket, the 90° tee allows the appliance to be connected directly to a lined masonry flue. It also collects the condensates coming from the flue liner and drains them through the drain cap. It attaches to the flue liner with a lug system that holds the liner securely in place.
It is offered with a male branch or a female branch depending on your needs and the type of installation.
➡️ For a lasting hold, it is essential to add a claw hose clamp on each side of the fitting.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅ Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
