Specifications
| Material | Stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 2 mm |
| Maximum service temperature | 1200°C |
| Temperature class (continuous operation) | T600 |
| Standard | According to EN 1856-2 |
| Certification | 1450-CPR-0007 |
| Origin | Poland |
| Flue range | 2 mm stainless steel single-wall flue |
| Flue type | Tees |
Documentation:
2 mm stainless steel range
Declaration of performance, 2 mm stainless steel - SPKA range

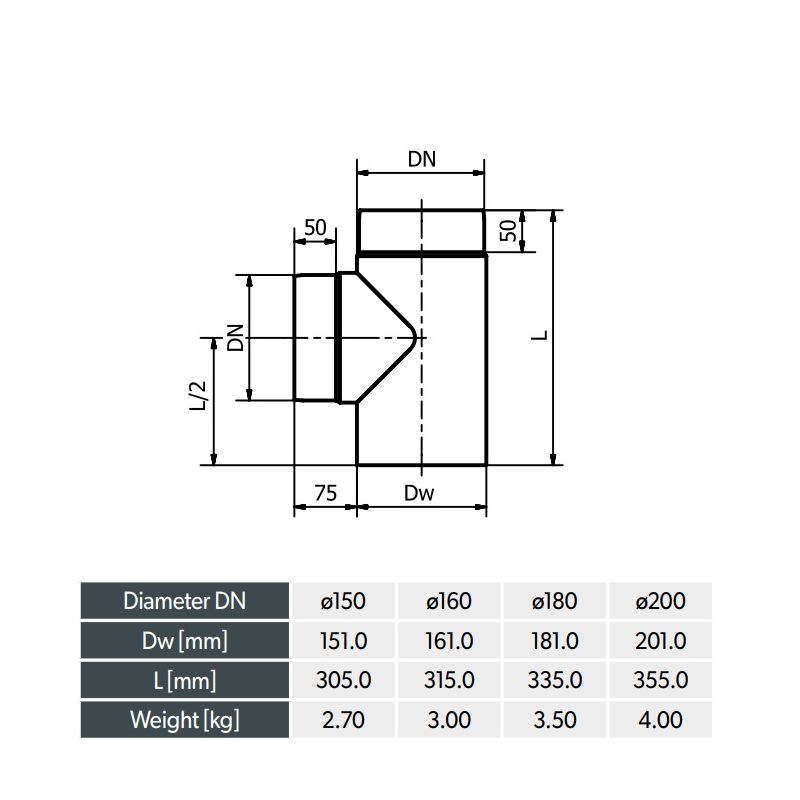

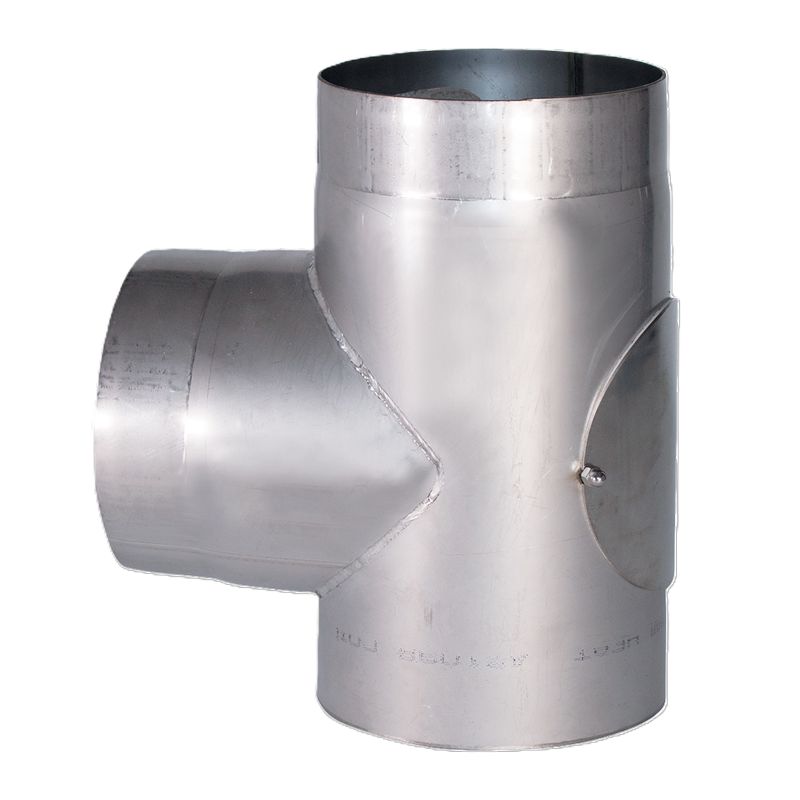

90° tee with inspection opening - 2 mm stainless steel flue pipe
90° tee with double socket and male branch (horizontal part) in 2 mm stainless steel, fitted with an inspection hatch, for connecting the appliance's flue pipe to the chimney flue (vertical) and to another flue pipe (horizontal) at the same time.
Particularly recommended in environments where there is a risk of condensation.
Available in diameters of 150, 160, 180 and 200 mm.
Sur Commande
👉 The 90° tee in 2 mm stainless steel with male branch lets you connect the wood-burning appliance simply and neatly to the chimney flue (vertically) and to a second flue pipe (horizontally): it allows condensate to drain and gives access for sweeping, and is fitted with an inspection hatch.
Its 50 mm male/female spigot is smooth and gives an impeccable finish.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
What are the advantages of 2 mm stainless steel?
✅ Resistance to very high temperatures of up to 1200°C.
✅ Exceptional mechanical strength: does not deform
✅ Substantial 2 mm thickness ensuring robustness and safety over time (lifetime resistance)
✅ Total immunity to acids
✅ Superior thermal inertia: the flue gases stay hot for longer, which improves the natural draught of the heating appliance
✅ Reduces the cooling of the gases, which limits condensation and the formation of creosote.
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
🔥2 mm stainless steel flue pipes are designed to operate in the N1 (40 Pa) sealing conditions up to 600° (T600) but can withstand temperatures of up to 1200° C.
