Specifications
| Material | Stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 2 mm |
| Maximum service temperature | 1200°C |
| Temperature class (continuous operation) | T600 |
| Standard | According to EN 1856-2 |
| Certification | 1450-CPR-0007 |
| Origin | Poland |
| Flue range | 2 mm stainless steel single-wall flue |
| Flue type | Bends |
Documentation:
2 mm stainless steel range
Declaration of performance, 2 mm stainless steel - SPKA range

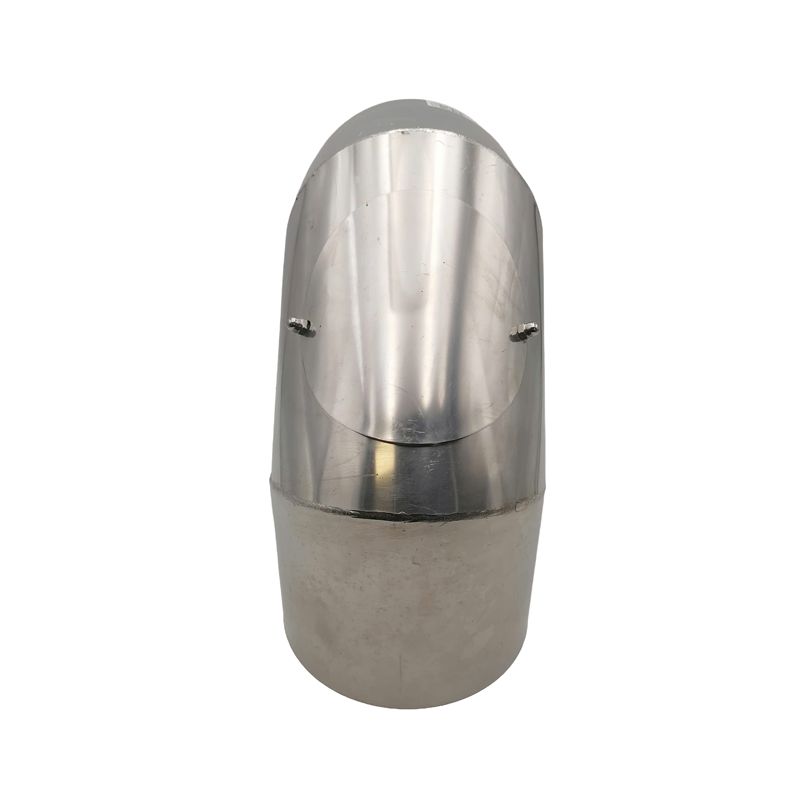

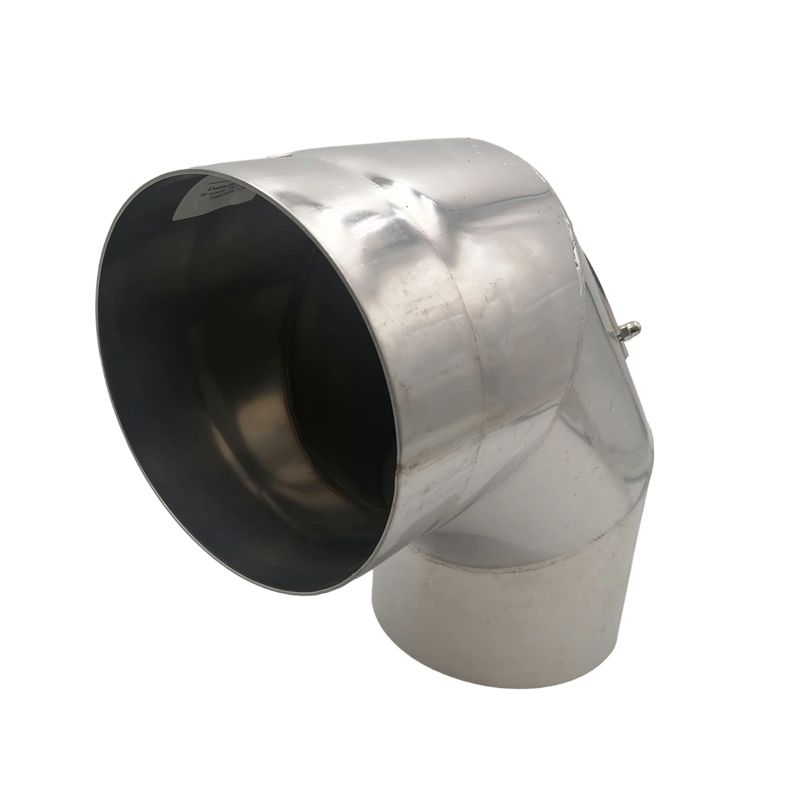

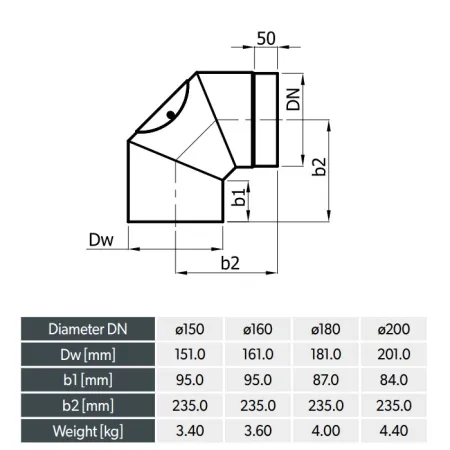

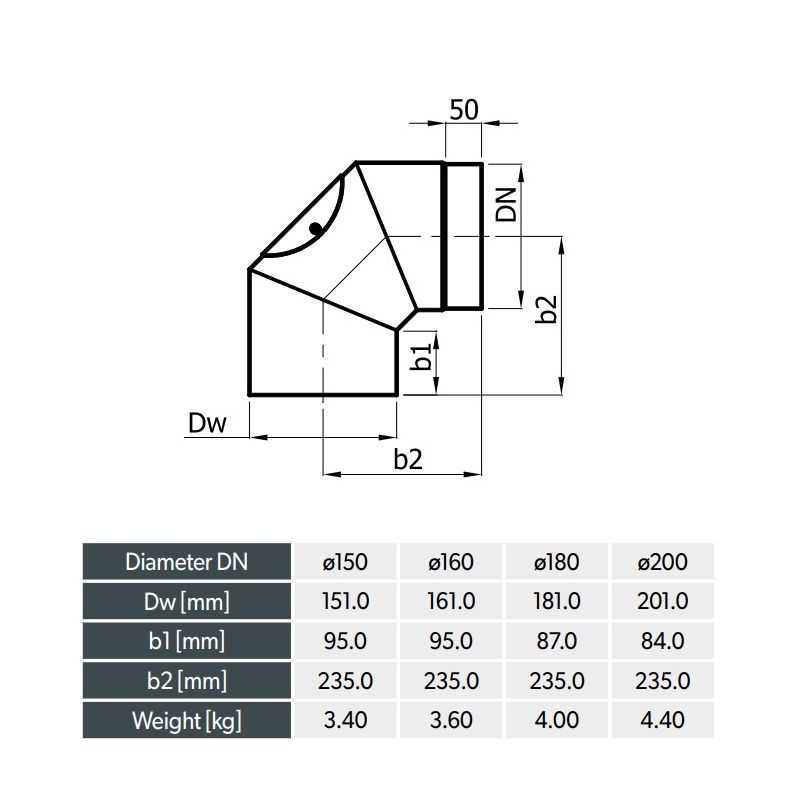

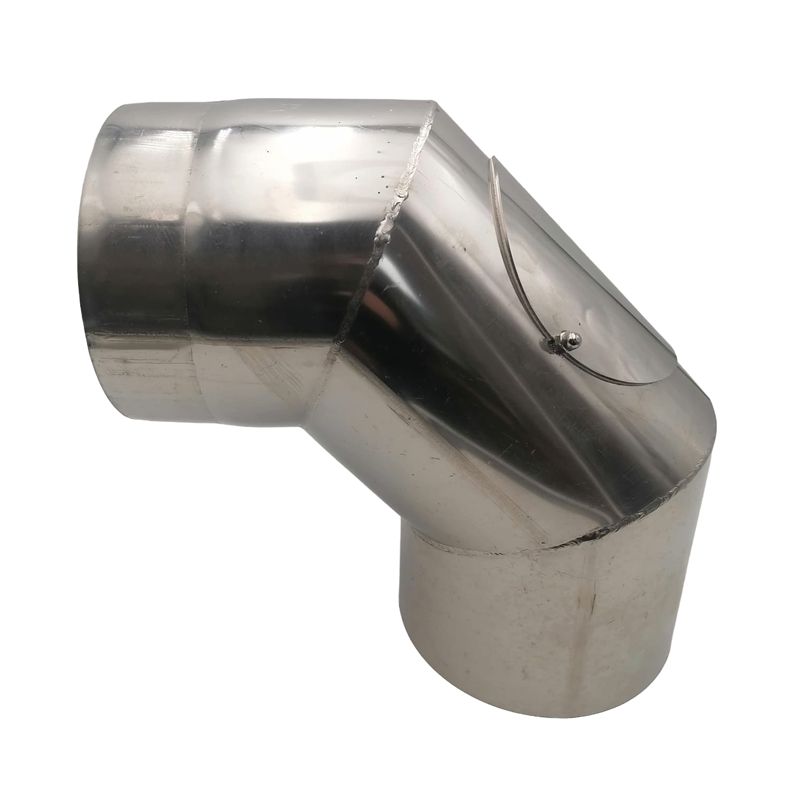

Fixed 90° elbow with access door - Stainless steel flue pipe 2 mm
Fixed 90° elbow in 2 mm single wall stainless steel, fitted with an access door for easier maintenance, for connecting the stove to the chimney flue of individual wood-burning appliances while managing the offset attractively.
Particularly recommended in environments where there is a risk of condensation.
Available in diameters of 150, 160, 180 and 200 mm.
Sur Commande
Related products:
👉 The fixed 90° elbow in 2 mm stainless steel neatly connects the wood-burning appliance to the chimney flue with a 90° offset.

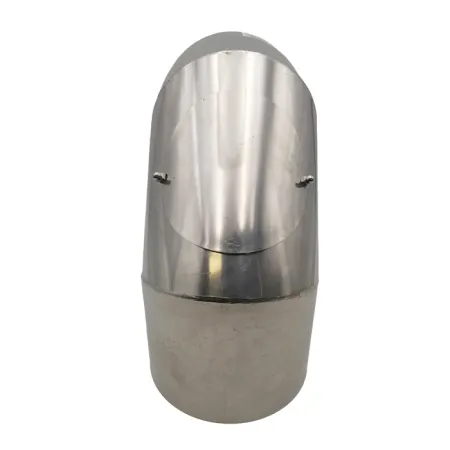

Its special feature is that it is fitted with an inspection door for easier cleaning.
Its 50 mm male/female spigot is perfectly smooth and gives an impeccable finish.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
What are the advantages of 2 mm stainless steel?
✅ Resistance to very high temperatures of up to 1200°C.
✅ Exceptional mechanical strength: does not deform
✅ Substantial 2 mm thickness ensuring robustness and safety over time (lifetime resistance)
✅ Total immunity to acids
✅ Superior thermal inertia: the flue gases stay hot for longer, which improves the natural draught of the heating appliance
✅ Reduces the cooling of the gases, which limits condensation and the formation of creosote.
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
🔥2 mm stainless steel flue pipes are designed to operate in the N1 (40 Pa) sealing conditions up to 600° (T600) but can withstand temperatures of up to 1200° C.
