Specifications
| Material | Cast iron |
|---|---|
| External diameter | 325 mm |
| Internal diameter | 300 mm |
| Thickness | 23 mm |
| Net weight | 6 kg |
| Manufacturer | Pisla |
| Origin | Finland |
| Cooking surface | Cast iron |
Documentation:
3KL cooking ring diagram
Dimensioned drawing of the 3KL cast iron cooking ring

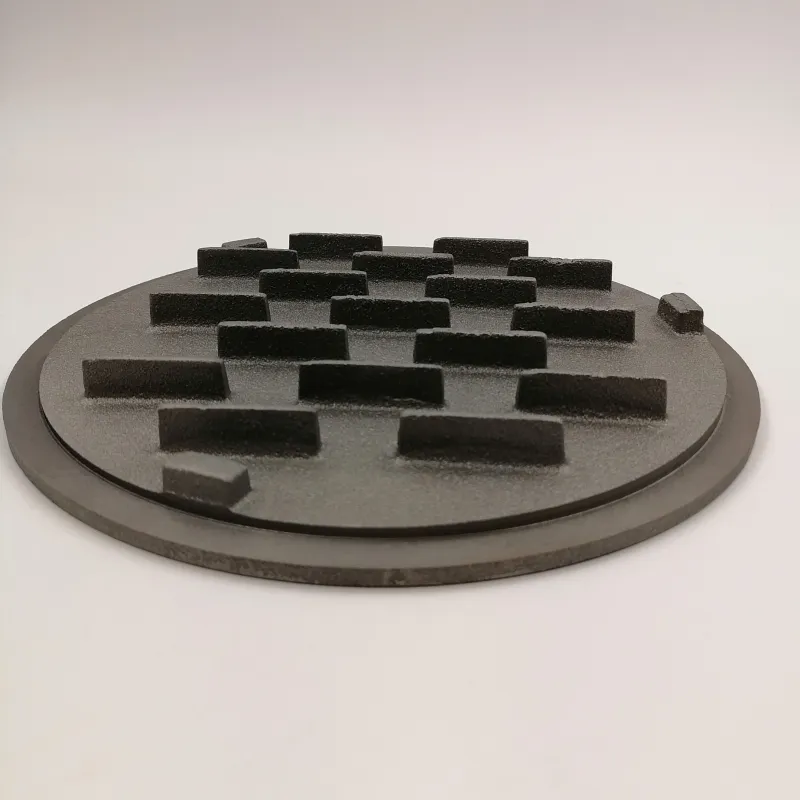

Ring for cast iron hob 3KL
3KL cast iron cooking ring, 325 mm diameter, for HTT 3A cast iron hob, used in the construction of masonry cookers, masonry heaters, etc.
En stock
Related products:
👉 This 3KL cooking ring, also called a hotplate, is made entirely of cast iron: it therefore withstands high temperatures and stores heat to release it evenly and for a long time.
Ideal for simmering, this 325 mm diameter cooking ring is one of the elements of the HTT 3A cast iron hob.
Technical characteristics:
✅ Outer diameter: 325 mm
✅ Inner diameter: 300 mm
✅ Total thickness: 23 mm
✅ Weight: 6 kg

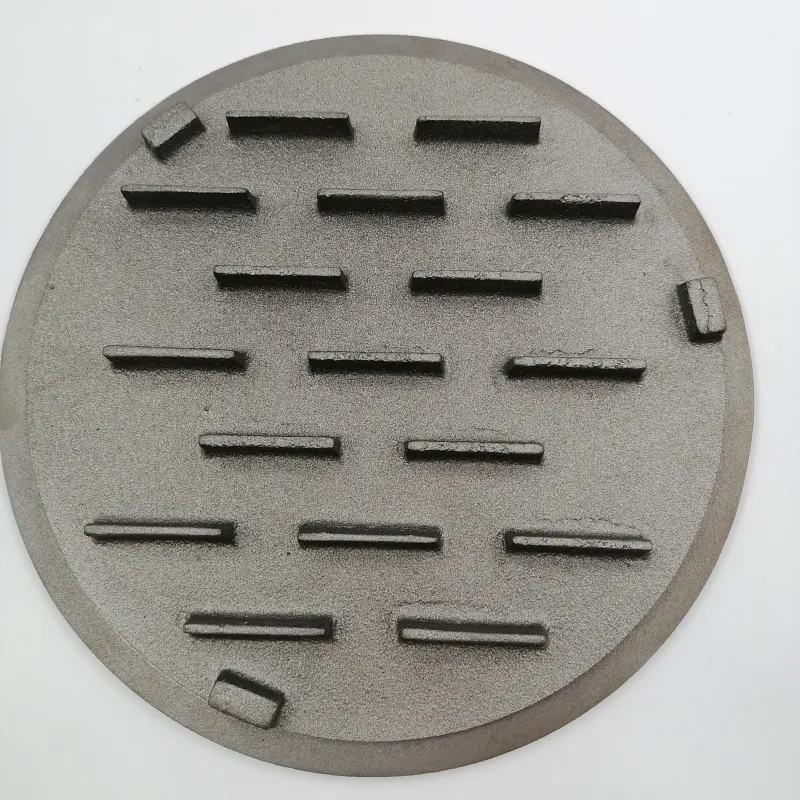

✅ Ribbed underside for better heat distribution
Fitting advice:
🔥 When designing, always allow a small expansion gap (a few millimetres) between the cast iron plate and the frame in firebricks or refractory stone. Cast iron expands when it heats up: without a gap, it could crack your masonry.
We therefore recommend using a glass fibre rope and/or a refractory sealant to allow for this expansion and ensure a perfect seal.
Care advice:
➡️ Before first use, rub the rings with a little vegetable oil and heat gently: this creates a natural protective layer against corrosion.
➡️ For cleaning, a simple brushing is enough.
⚠️ Avoid thermal shock and never pour cold water on a hot plate, as this could crack the cast iron.
