Specifications
| Heat output (1 firing) | 12 kW |
|---|---|
| Useful heat output | 6 kW |

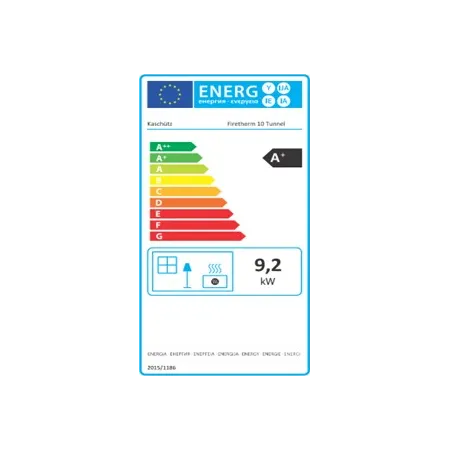

| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 6.2 Kg |
| Maximum wood load | 12.5 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |

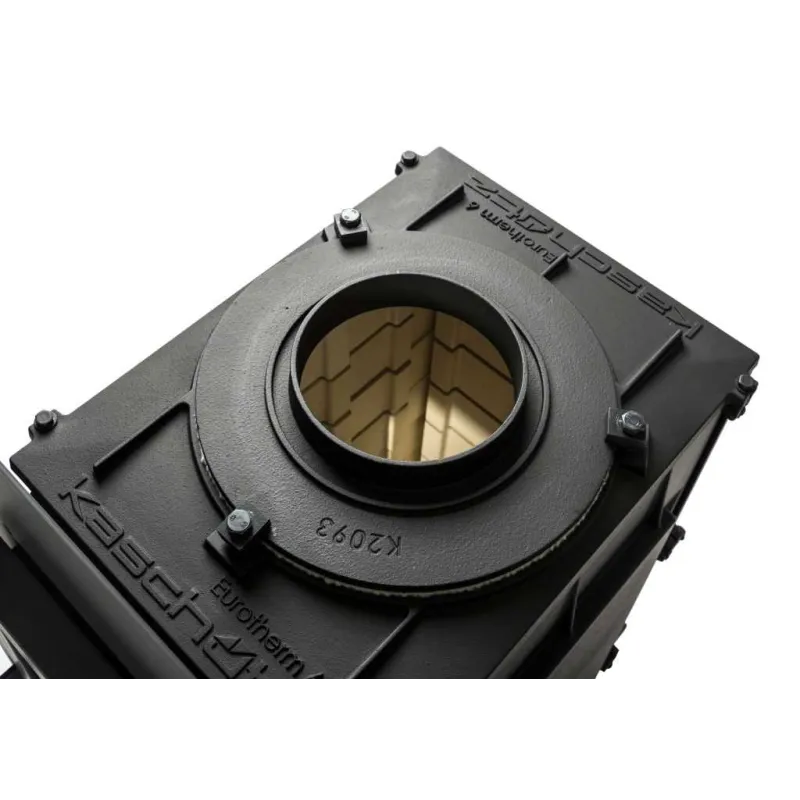

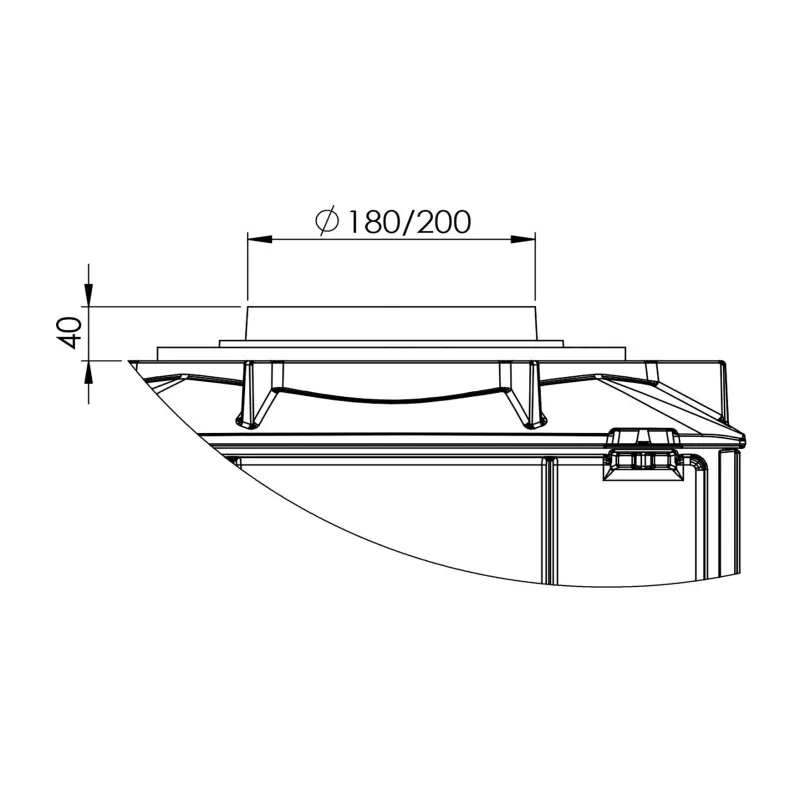

| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable Ductable and automatic |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 50.4 g / s |
| Energy efficiency index (EEI) | 117.2 |
| Net weight | 205 Kg |
| Standard | According to EN 13229 |
| Manufacturer | Kaschuetz |
| Origin | Austria |
Documentation:
Firetherm firebox manual (in French)
Firetherm firebox user manual
Firetherm 10 Tunnel performance
Firetherm 10 Tunnel declaration of performance
Firetherm 10 Tunnel data sheet
Firetherm 10 Tunnel technical data sheet
Firetherm firebox assembly (in French)
Firetherm firebox installation manual

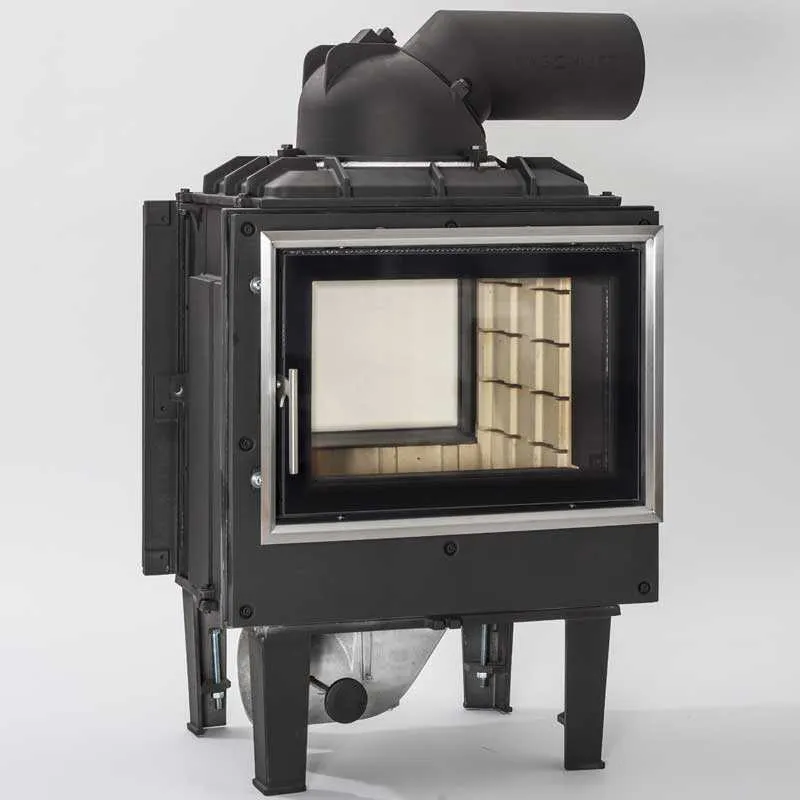

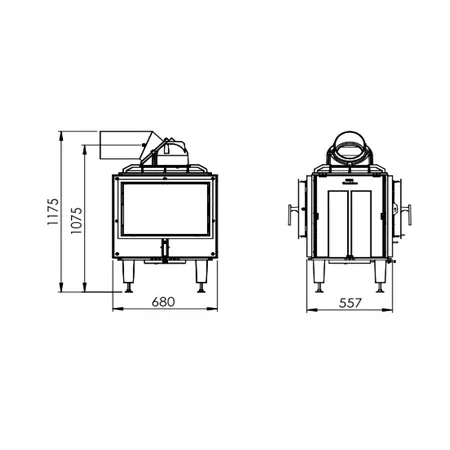

Firetherm 10 Automatic see-through cast iron firebox - 9 kW / 10 kg
Specific 10 kg / 9 kW cast iron firebox for building high-quality made-to-measure double-sided heat-storage stoves with electronic combustion control system, horizontal double-glazed door and firebox with multi-point air injection (UZ37).
- Load: 5 to 10 kg per firing
- Nominal heat output: 9 kW
- Efficiency: >80 %
Sur Commande
Price:
€7,029.60
Tax included
Air inlet
Flue outlet

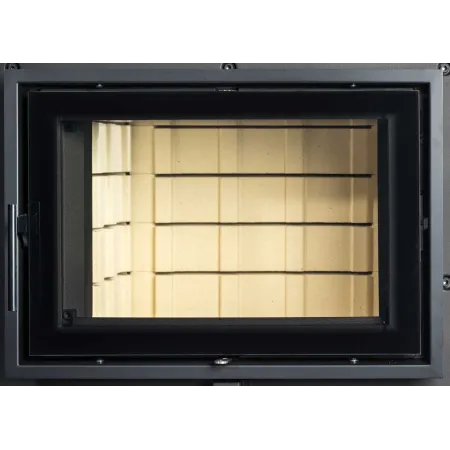

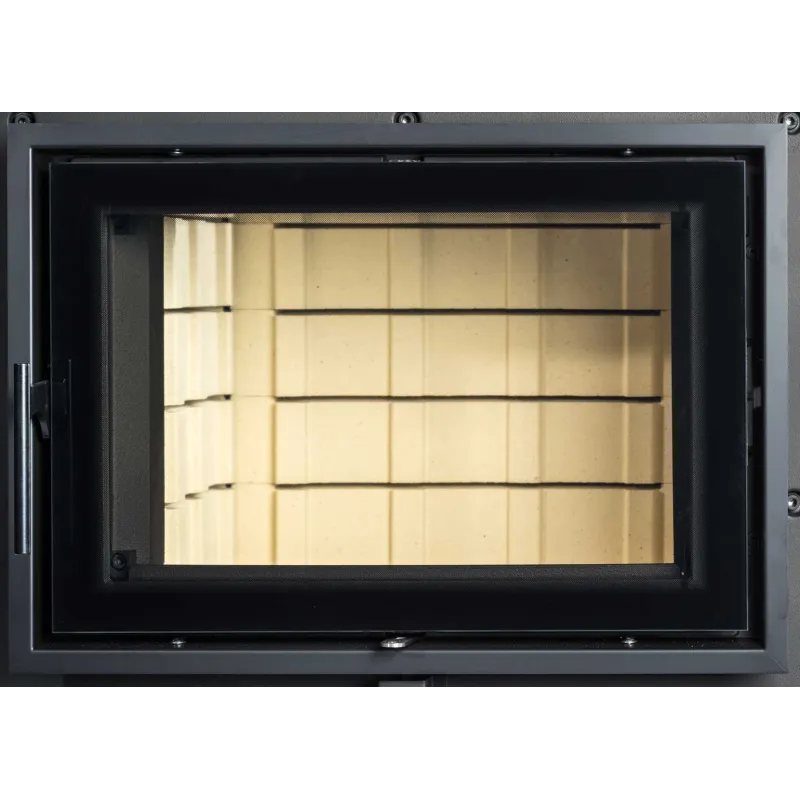

Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
Specific 10 kg / 9 kW cast iron firebox for building high-quality made-to-measure double-sided heat-storage stoves with horizontal double-glazed glass and firebox with multi-point air injection (UZ37), fitted with the "Euromatic" electronic combustion control system.
✅ Energy efficiency class: A+
✅ Load: 5 to 10 kg per firing.
✅ Reloading interval: 4 h
✅ Nominal heat output: 9 kW
✅ Efficiency: >80 %
✅ Weight: 205 kg, including 45 kg of refractory stones (grog)
✅ Combustion chamber dimensions: 430 (W) x 345 (D) x 490 mm (H)

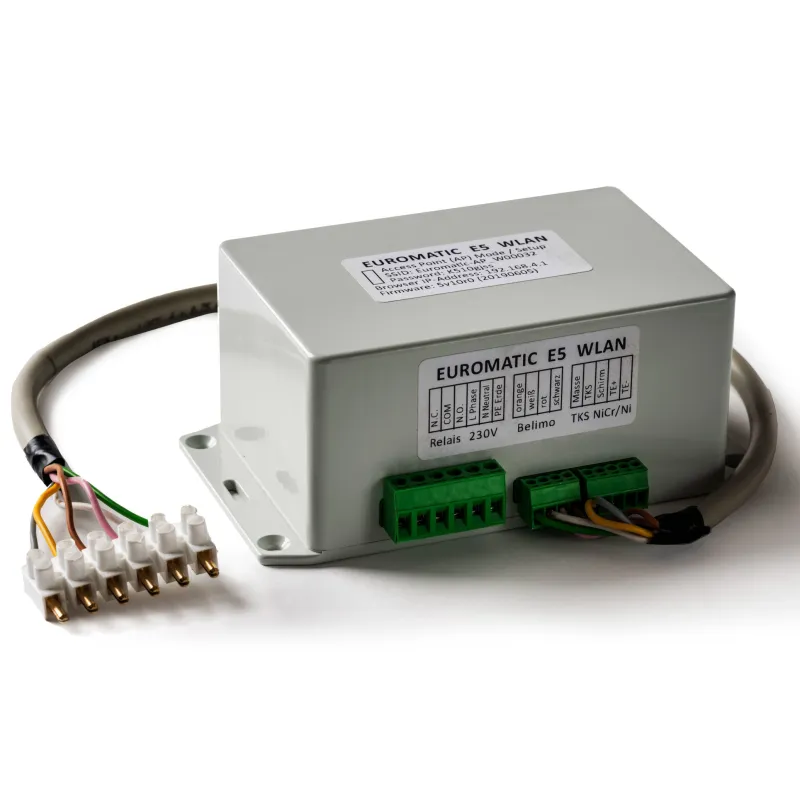

Description of the Euromatic electronic combustion control system:
The Euromatic combustion control closes the combustion air supply at the optimal moment, in several control stages and fully automatically: no more waiting or checking, Euromatic does it for you.
Compatible with installations using internal (in the room) or external (outdoor) combustion air.
This system is controlled either by Wi-Fi via an app to download on your smartphone, or by a wall-mounted touch screen.

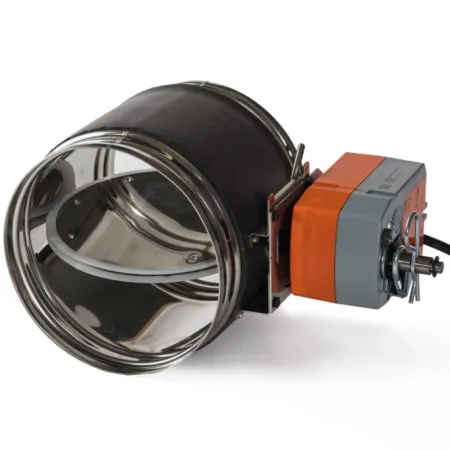

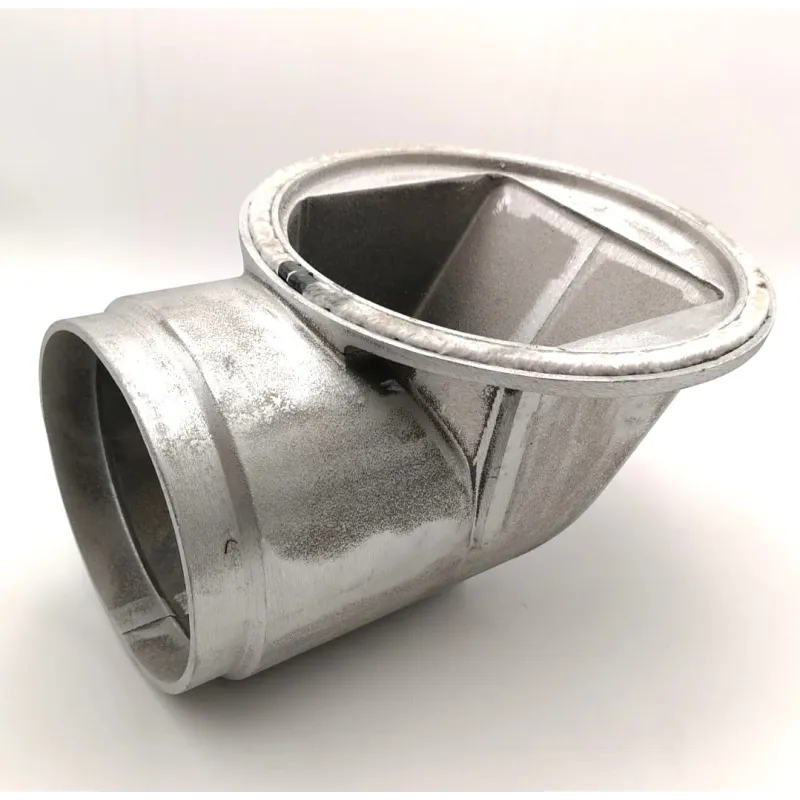

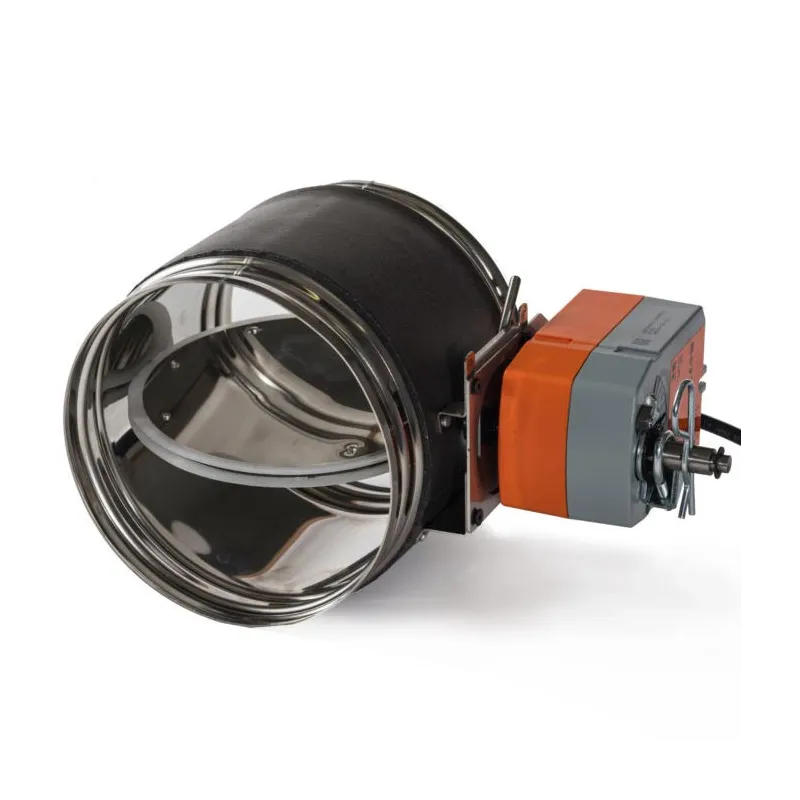

On the Firetherm 10 See-through Automatic model, the air outlet is vertical (Ø 160 mm) or horizontal (Ø 160 or 180 mm): the system is supplied with the horizontal or vertical adapter, the aluminium flexible hose and the motorised air damper.
