Specifications
| Heat output (1 firing) | 11 kW |
|---|---|
| Useful heat output | 4.7 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 5 kg |
| Maximum wood load | 12.5 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |

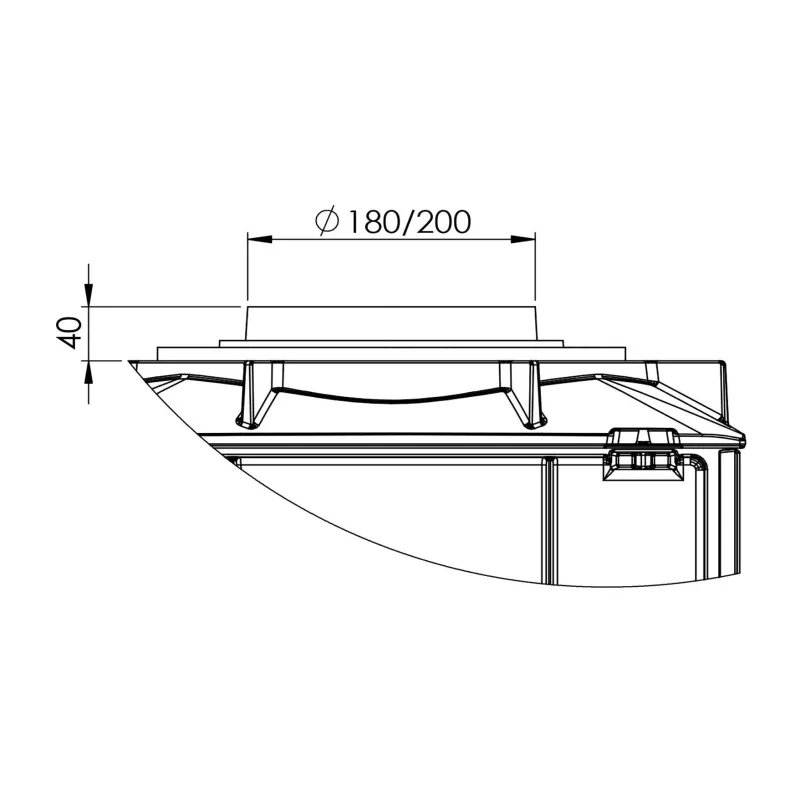

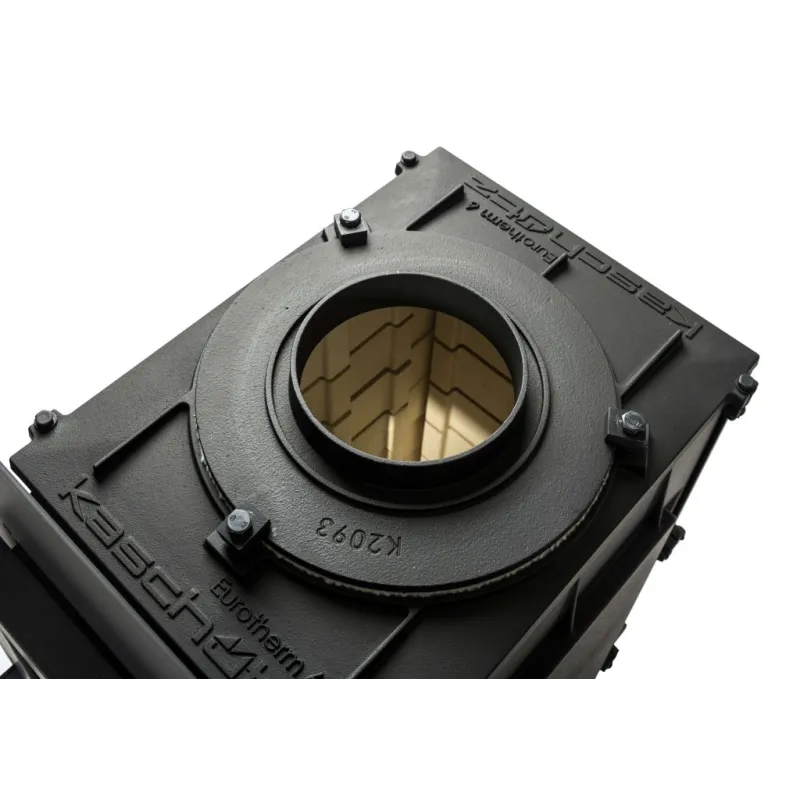

| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 43.6 g / s |
| Energy efficiency index (EEI) | 107.9 |
| Net weight | 185 Kg |
| Manufacturer | Kaschuetz |
| Origin | Austria |
| Food contact | No |
| Contains wood | No |
Documentation:
Eurotherm firebox manual (in French)
Eurotherm firebox user manual
Eurotherm 10 Tunnel performance
Eurotherm 10 Tunnel declaration of performance
Eurotherm 10 Tunnel data sheet
Eurotherm 10 Tunnel technical data sheet
Eurotherm firebox assembly (in French)
Eurotherm firebox installation manual

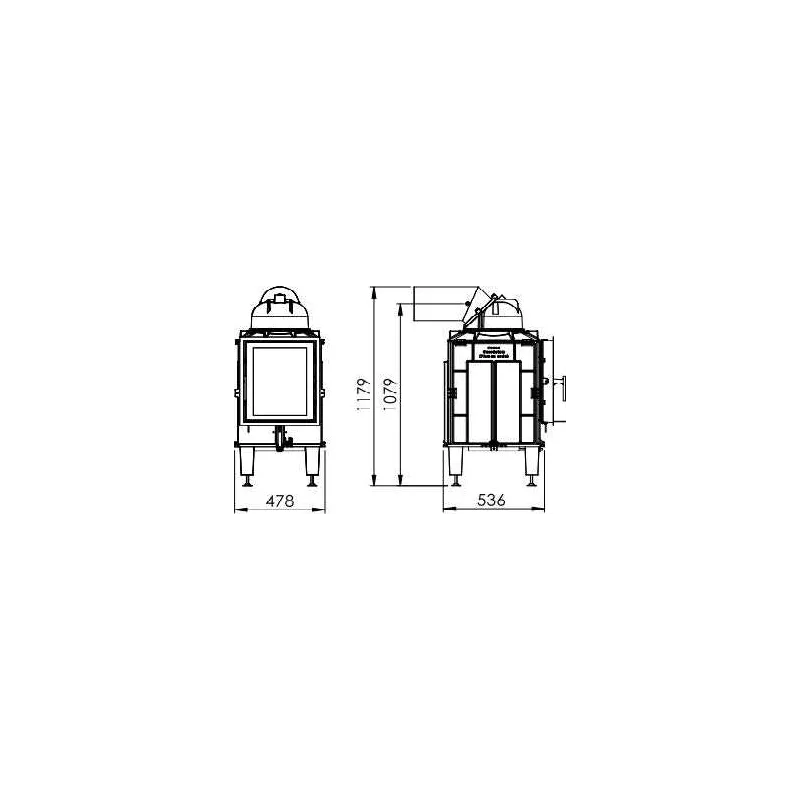

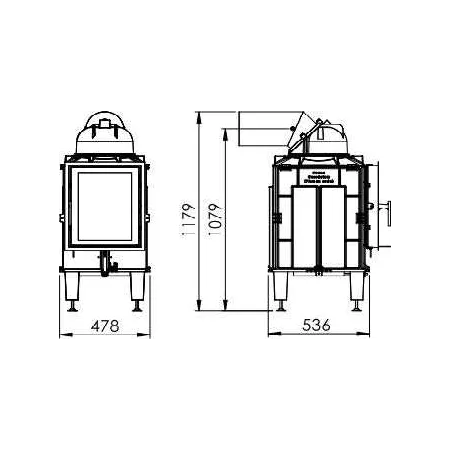

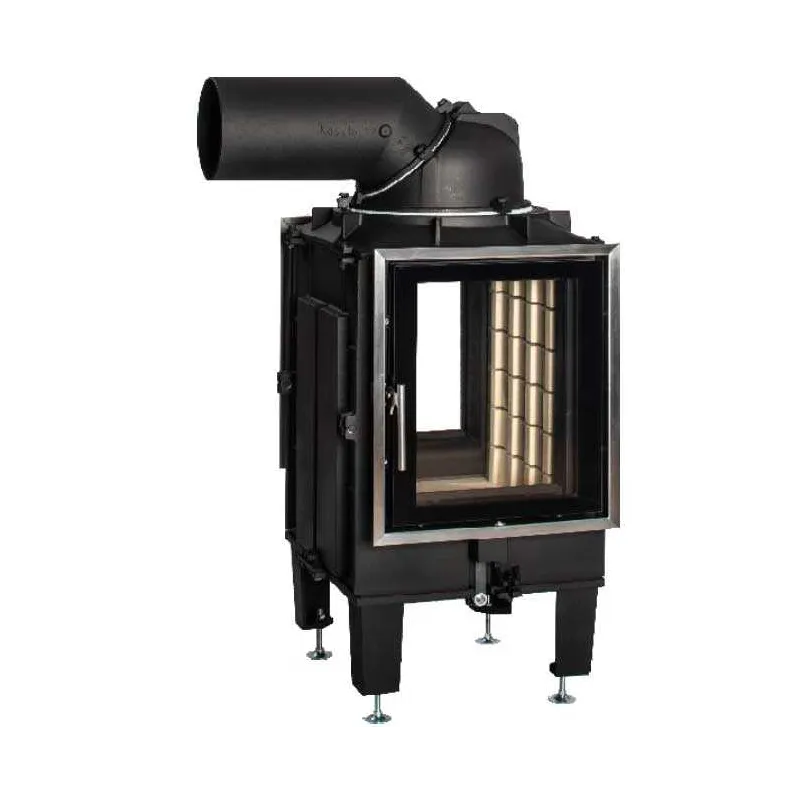

Eurotherm 10 see-through cast iron firebox - 11 kW / 12.5 kg
Specific see-through or "tunnel" cast iron firebox with multi-point air injection to the UZ 37 standard, for building high-quality bespoke heat-storage stoves.
- Load: 5 to 12.5 kg per firing
- Nominal heat output: 11 kW
- Efficiency: > 80 %
Sur Commande
Price:
€4,231.20
Tax included

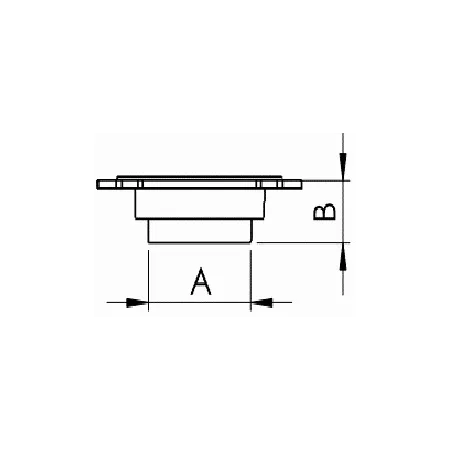

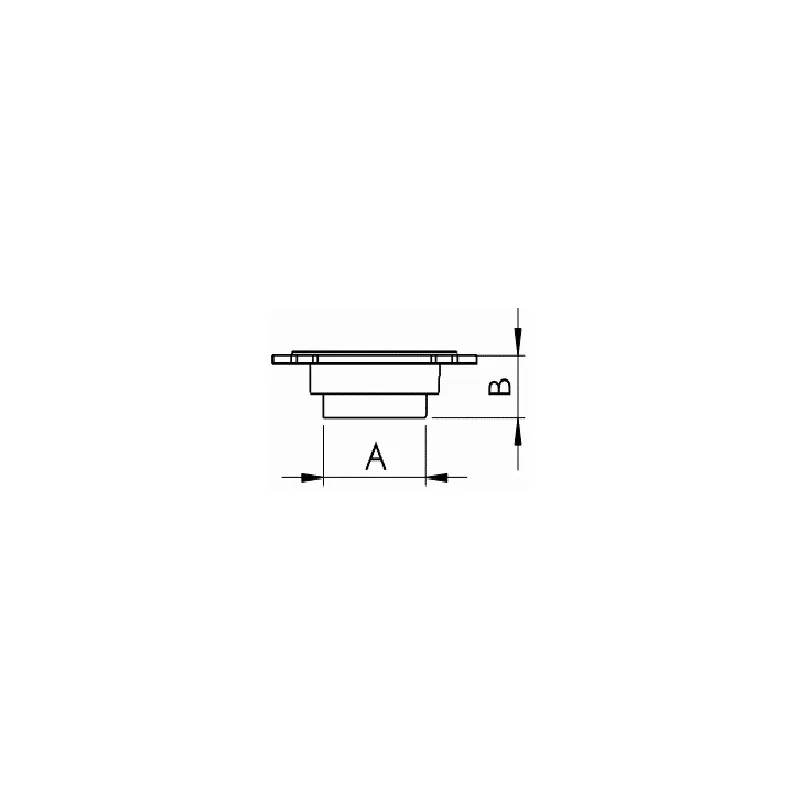

Air inlet
Flue outlet

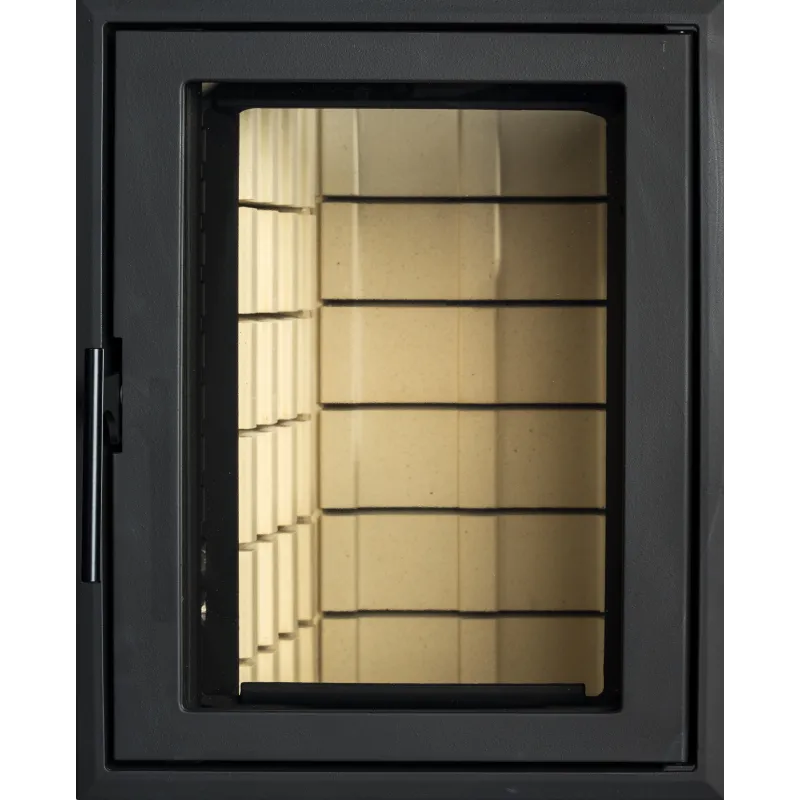

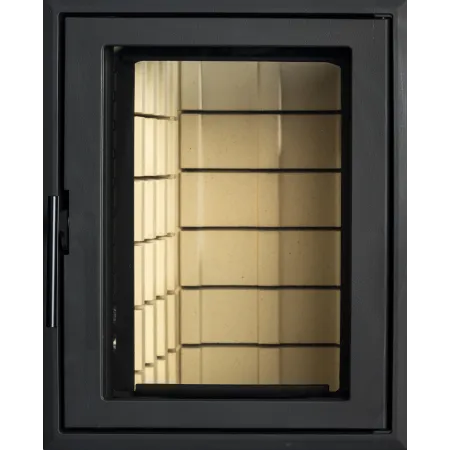

Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
Specific double-sided cast iron firebox with multi-point air injection, UZ 37 standard, for building high-quality made-to-measure heat-storage stoves.
✅ Nominal heat output: 11 kW
✅ Logs: 33 cm
✅ Weight: 185 kg including 40 kg of refractory stones
✅ Efficiency: > 80 %
✅ Efficiency: > 80 %
✅ Harmonised technical specifications (standards): EN 13229, 1. BIMSCHV Stufe2, Art 15a (ab 2015), UZ 37
✅ Combustion chamber dimensions: 295 (W) x 375 (D) x 500 mm (H)
