Specifications
| Heat output (1 firing) | 12 kW |
|---|---|
| Useful heat output | 6 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 6.2 Kg |
| Maximum wood load | 12.5 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |
| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 50.4 g / s |
| Energy efficiency index (EEI) | 117.2 |
| Net weight | 205 Kg |
| Standard | According to EN 13229 |
| Manufacturer | Kaschuetz |
| Origin | Austria |
Documentation:
Firetherm 10 technical data sheet
Firetherm 10 technical data sheet
Firetherm firebox manual (in French)
Firetherm firebox user manual
Firetherm 10 performance
Firetherm 10 declaration of performance
Firetherm firebox assembly (in French)
Firetherm firebox installation manual

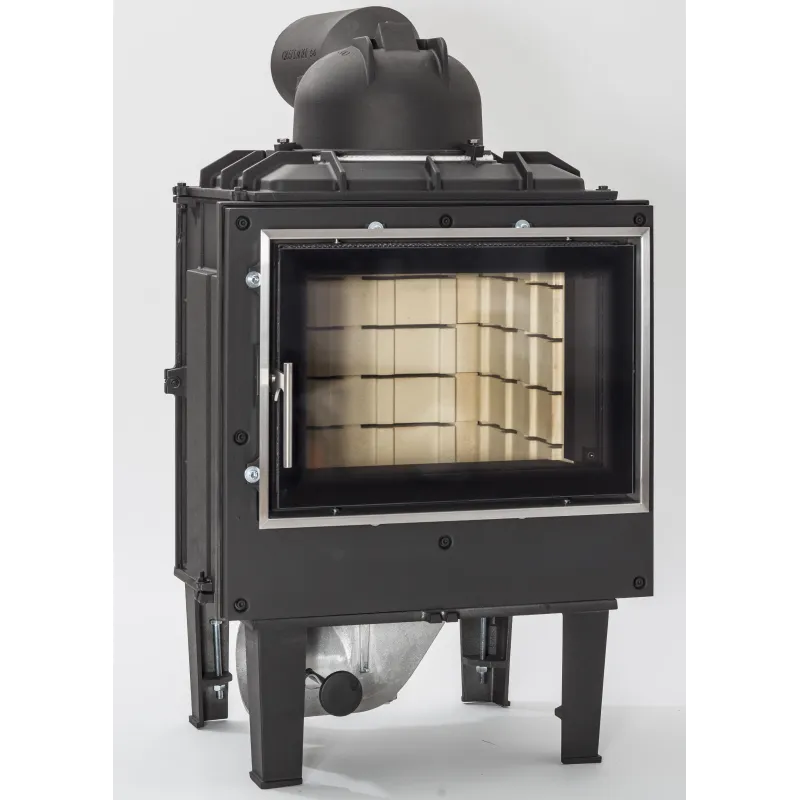

Firetherm 10 cast iron firebox - 12 kW / 12.5 kg
Specific cast iron firebox with multi-point air injection to the UZ 37 standard, for building high-quality bespoke heat-storage stoves.
- Load: 6.2 to 12.5 kg per fire
- Nominal heat output: 12 kW
- Efficiency: >80 %
Sur Commande
Price:
€4,212.00
Tax included
Air inlet

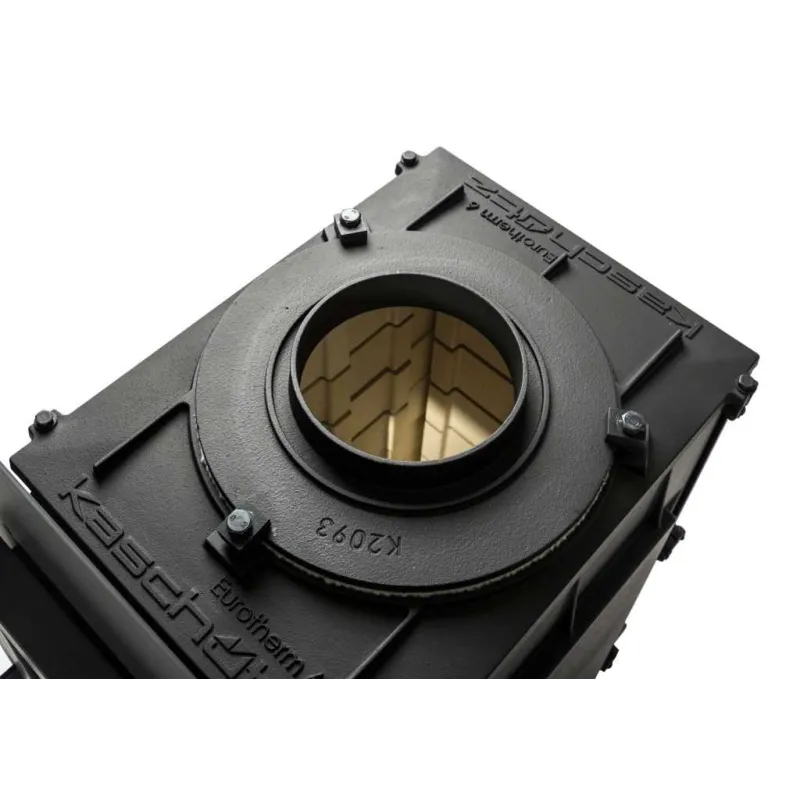

Flue outlet

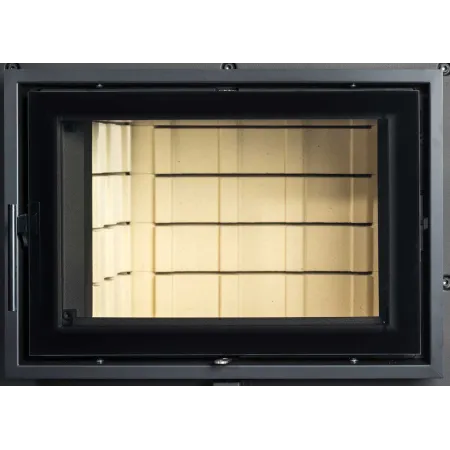

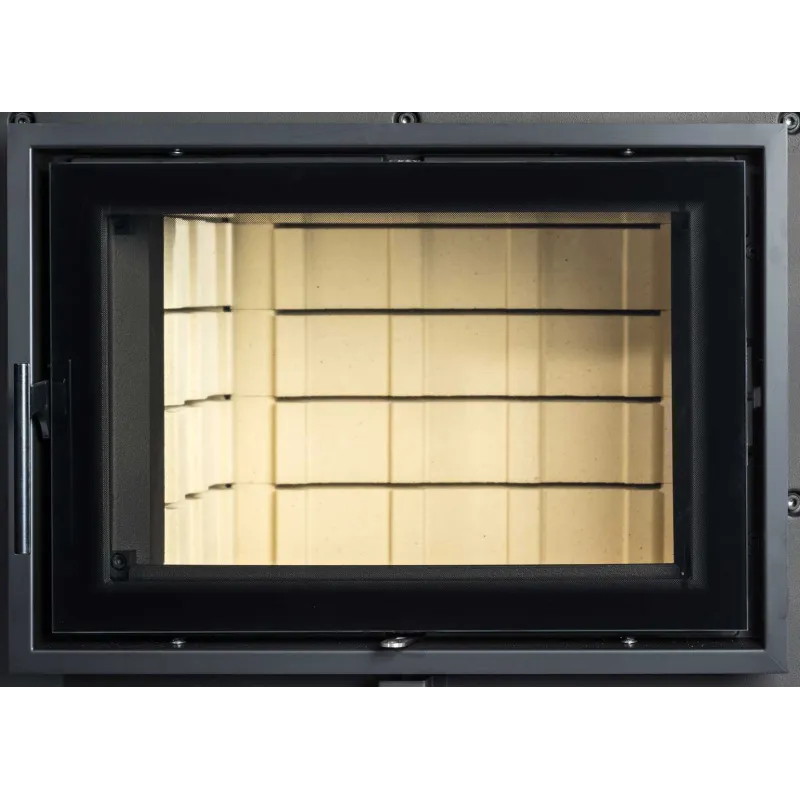

Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
12.5 kg / 12 kW cast iron firebox specifically for building high-quality bespoke heat-storage stoves, with horizontal double-glazed glass and a firebox with multi-point air injection (UZ37).
✅ Energy efficiency class: A+
✅ Load: 6.2 to 12.5 kg per fire.
✅ Reloading interval: 4 h
✅ Nominal heat output: 12 kW
✅ Efficiency: >80 %
✅ Weight: 205 kg, including 45 kg of refractory stones (grog)

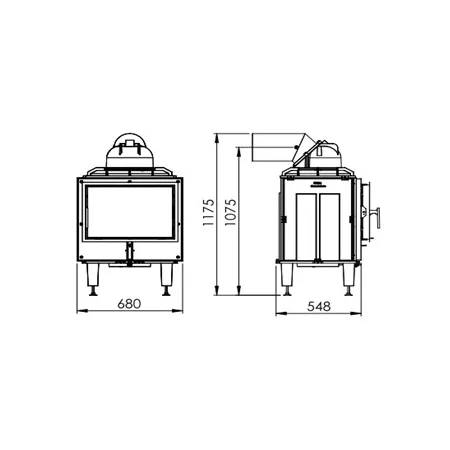

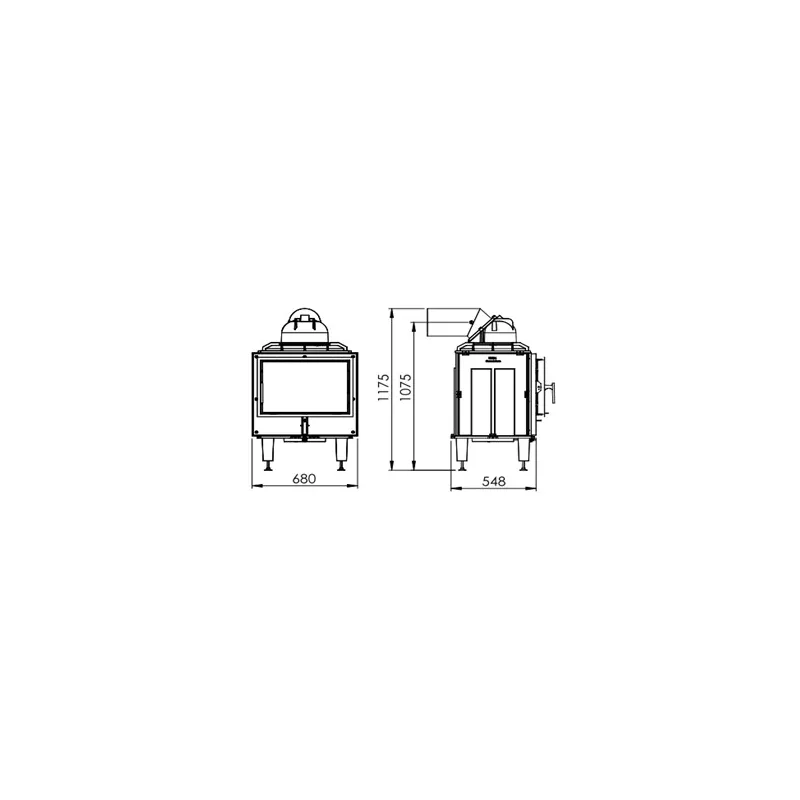

✅ Combustion chamber dimensions: 430 (W) x 345 (D) x 490 mm (H)
