Specifications
| Heat output (1 firing) | 11.5 kW |
|---|---|
| Useful heat output | 5.6 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 5 kg |
| Maximum wood load | 12.5 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |

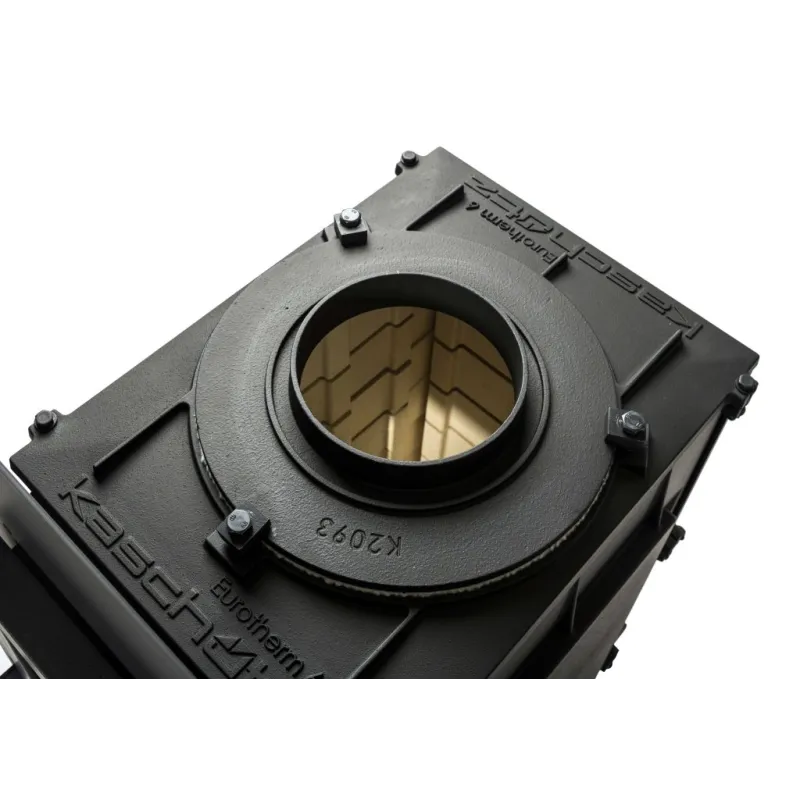

| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 43.6 g / s |
| Energy efficiency index (EEI) | 117.3 |
| Net weight | 205 Kg |
| Standard | According to EN 13229 |
| Manufacturer | Kaschuetz |
| Origin | Austria |
Documentation:
Firetherm 10 Edge technical data sheet
Technical data sheet for the Kaschutz Firetherm 10 cast iron corner firebox
Firetherm firebox manual (in French)
Firetherm firebox user manual
Firetherm firebox assembly (in French)
Firetherm firebox installation manual

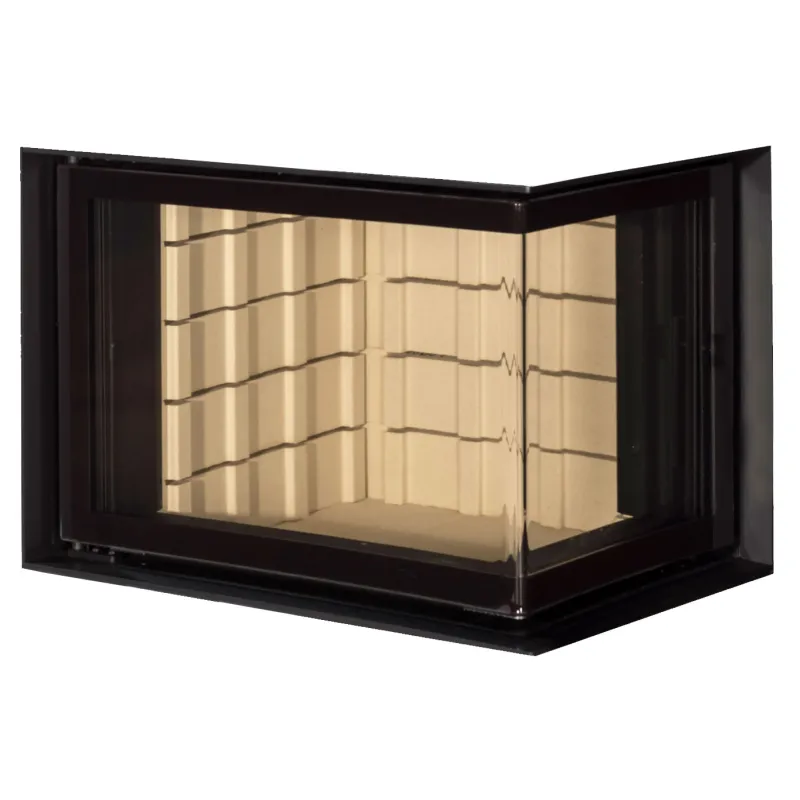

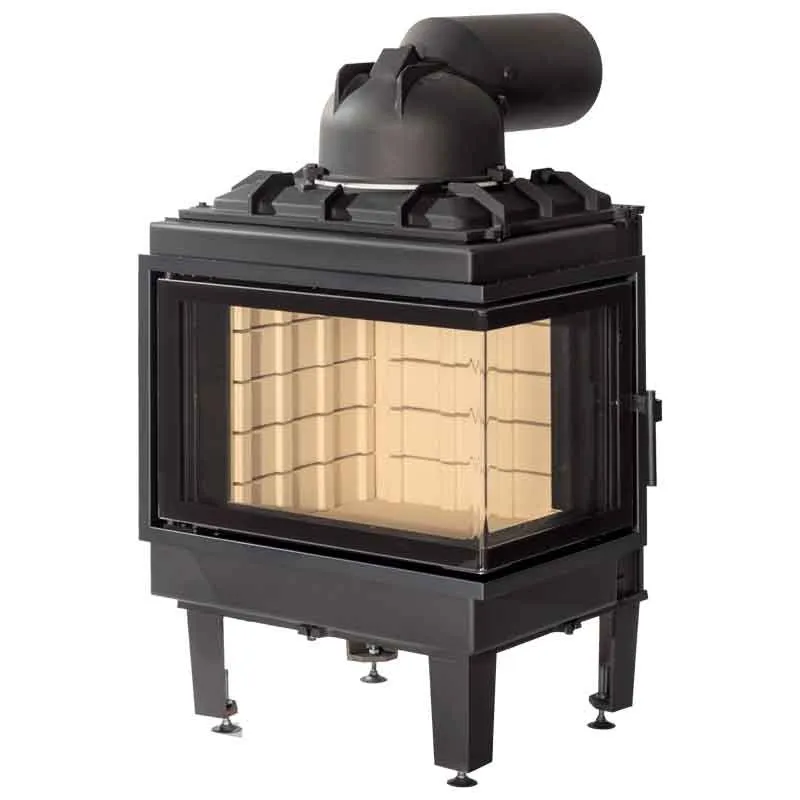

Firetherm 10 corner firebox - 11.6 kW / 12.5 kg
11.6 kW cast iron corner firebox specifically for building high-quality bespoke heat-storage stoves; left- or right-hand corner to be specified.
- Energy efficiency class: A+
- Load: 5 to 12.5 kg per fire.
- Reloading interval: 4 h
- Nominal heat output: 11.6 kW
- Efficiency: >80 %
Sur Commande
Price:
€5,889.60
Tax included
Air inlet
Flue outlet
Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
11.6 kW cast iron corner firebox specifically for building high-quality bespoke heat-storage stoves.
The Firetherm 10 corner stove insert for bespoke masonry heaters is a response to current trends and requirements in design. The large corner doors with double glazing and horizontal orientation give a new dimension to heat-storage stoves.
It goes without saying that the technical parameters, the materials used and the uncompromising build quality surpass the products in this segment.
✅ Energy efficiency class: A+
✅ Load: 5 to 12.5 kg per fire.
✅ Reloading interval: 4 h
✅ Nominal heat output: 11.6 kW
✅ Efficiency: > 80 %
✅ Weight: 205 kg, including 45 kg of refractory stones (grog)
✅ Combustion chamber dimensions: 430 (W) x 385 (D) x 490 mm (H)
