Specifications
| Material | Steel |
|---|---|
| Finish | Matt |
| Width (overall) | 350 mm |
| Width (internal) | 310 mm |
| Height (overall) | 350 mm |
| Height (internal) | 310 mm |
| Thickness | 40 mm |
| Wall thickness | 2 mm |
| Air passage | 340 cm² |
| Net weight | 1.88 kg |
| Standard | According to NF DTU 24.2 |
| Origin | Spain |
| Air grille type | Square |

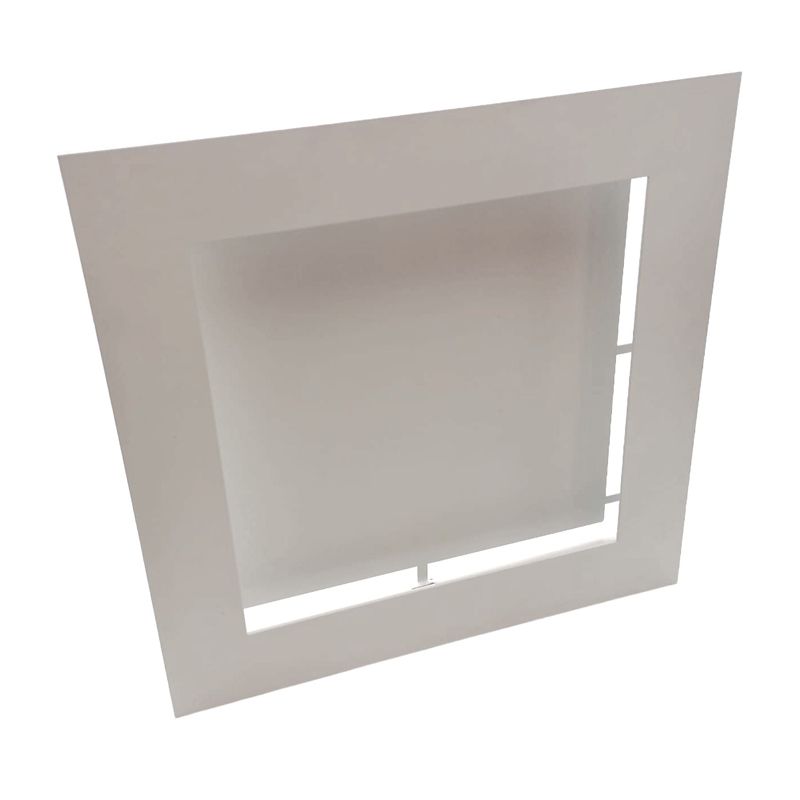

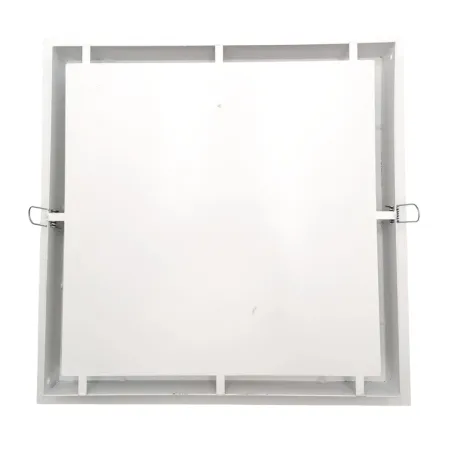

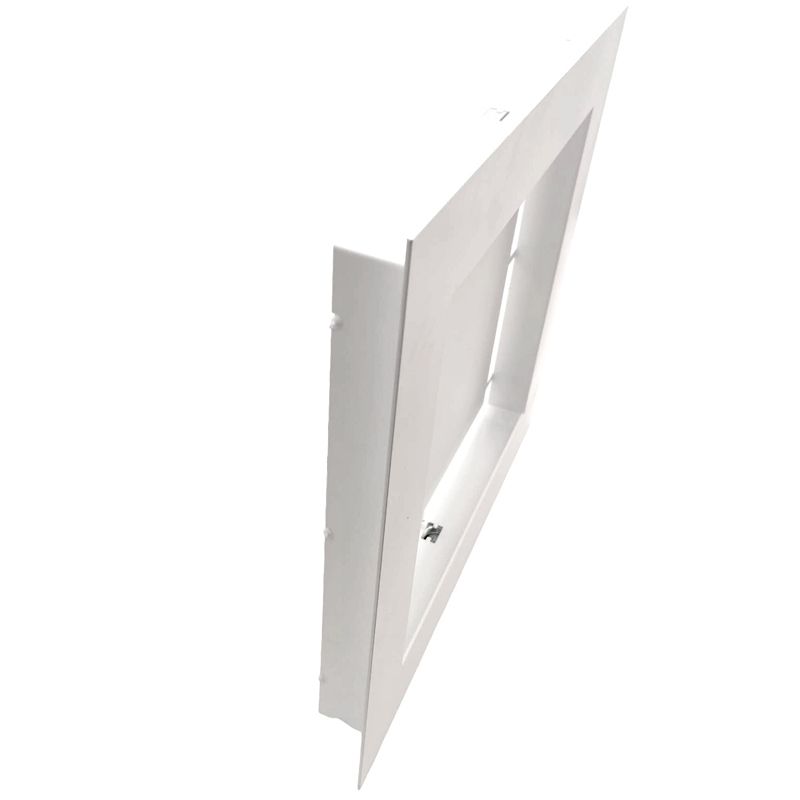

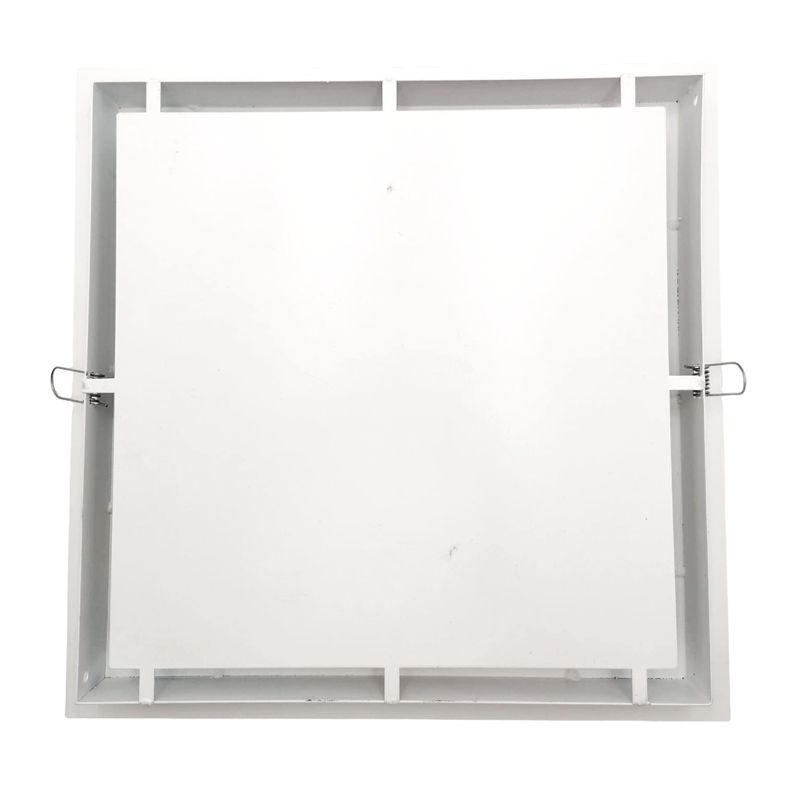

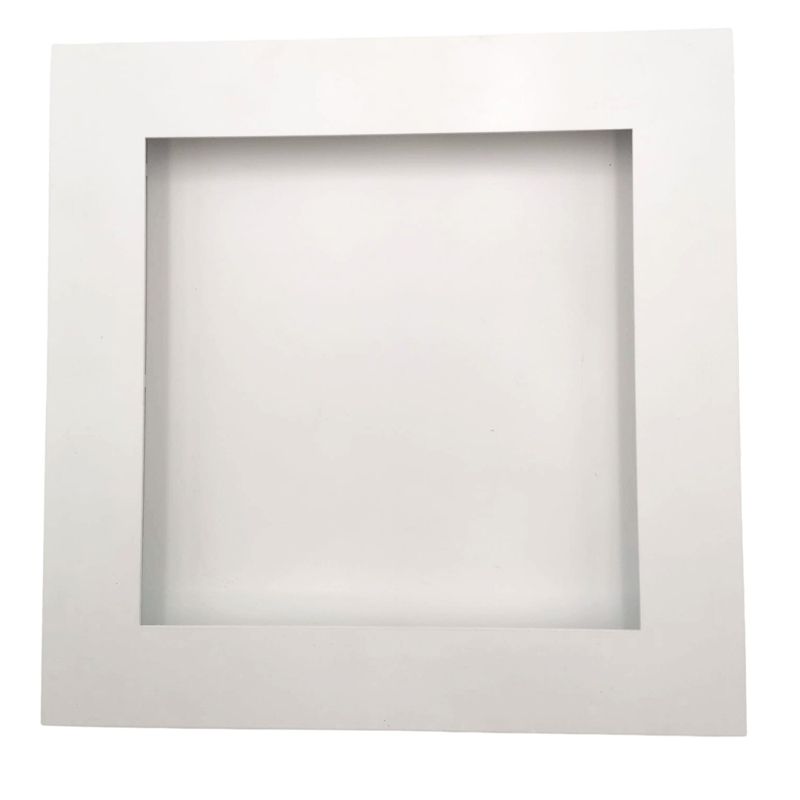

Slot hot air grille - 350 x 350 mm
Used as a convection, decompression or ventilation grille, this square 350 x 350 mm air grille with a neat finish fits easily into the cladding of your fireplace, masonry heater, insert, etc.
Available in black and white to suit all interiors.
Last items in stock
Related products:
👉 The Slot grille 350 x 350 mm allows distributes hot air evenly in the room, without creating an overly direct or unpleasant air flow. It can also serve as a hot air intake to recover heat from one room to another or into a ventilation network.
Useful in convection heating systems, stoves, fireplaces, inserts, humidity-controlled ventilation, etc. Its clean lines will let it blend perfectly into your room.
Technical characteristics:
- Overall dimensions: 350 x 350 mm
- Cut-out dimensions: 310 x 310 mm
- Front air passage dimensions: 247 x 247 mm
- Total thickness: 40 mm
- Front thickness: 2 mm
- Air passage: 340 cm²
- Weight: 1.88 kg
Advantages of the Slot hot air grille:
✅ In 2 mm thick steel: durability and strength guaranteed!
✅ Easy installation thanks to its side clip fixing system
✅ Matt black (RAL 9005 TXT) or white (RAL 9003) painted steel
✅ Compliant with the NF DTU 24.2 standard
✅ 100% recyclable materials
This grille is compatible with the sub-frame for hot air grille 350 x 350 mm and with the connection box for hot air grille 350 x 350 mm Ø 150 mm.
Explanatory video of the installation of the Slot air grille:
