Specifications
| Heat output (1 firing) | 47 kW |
|---|---|
| Useful heat output | 2.2 kW |

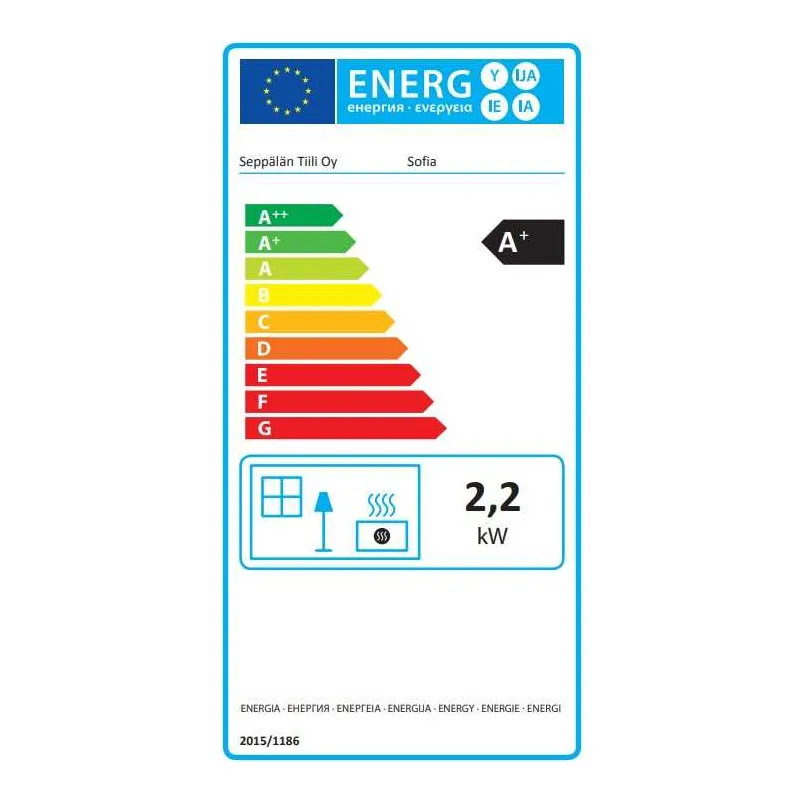

| Energy efficiency class | A+ |
| Efficiency | 88 % |
| Maximum wood load | 12.7 kg in 3 loads (5 kg + 3.85kg + 3.85 kg) |
| Log length | 33 cm |
| Firing duration | 1h30 to 2h |
| Heat release duration | 54 h |
| Width (overall) | 1070 mm |
| Depth (overall) | 775 mm |
| Height (overall) | 1900 mm |
| Flue outlet | Metal connector 120 x 200 x 250 mm |
| Air inlet diameter | 110 to 125 mm |
| Air inlet | Ductable (via Air Box option) Manual - via the ash pan |
| Draught | 12 Pa |
| Flue gas mass flow rate | 25.4 g / s |
| Time at 50% of maximum temperature | 35.3 h |
| Time at 25% of maximum temperature | 53.7 h |
| Max. flue gas temperature (safe combustion) | 233° C |
| ETAS (seasonal energy efficiency) | 78 % |
| Carbon monoxide (CO) emissions | 1250 mg/Nm³ |
| Fine particulate matter (PM) emissions | 29 mg/Nm³ |
| Organic gaseous compounds (OGC) emissions | 67 mg/Nm³ |
| Nitrogen oxides (NOx) emissions | 106 mg/Nm³ |
| Net weight | 1950 Kg |
| Standard | According to EN 15250 |
| Certification | Ecodesign 2022 |
| Manufacturer | Tiileri |
| Origin | Finland |
| Food contact | No |
| Contains wood | No |
Documentation:
Lighting Tiileri stoves (in French)
Lighting your Tiileri masonry heater correctly

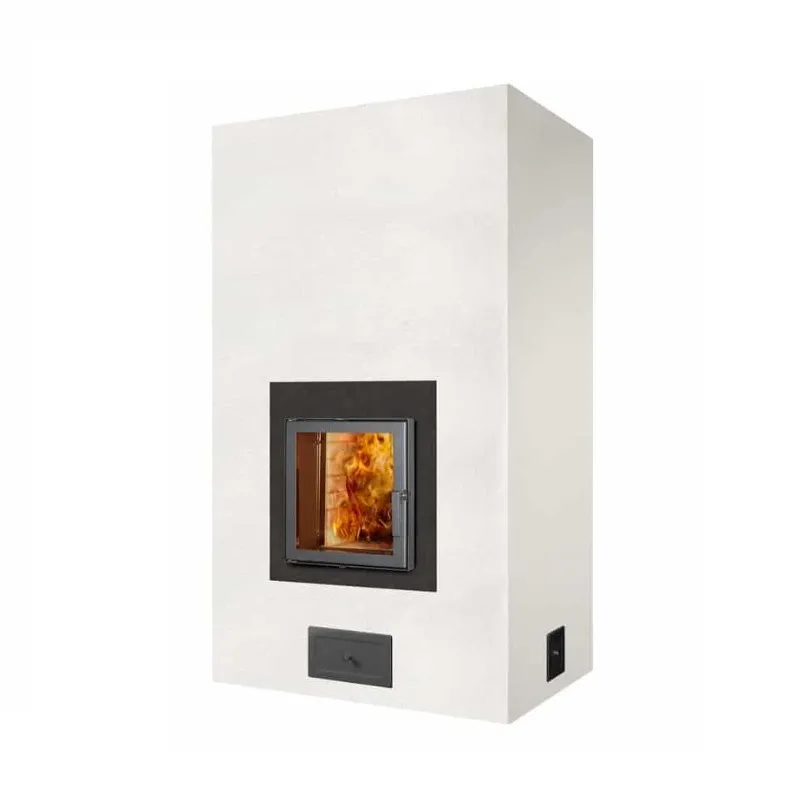

"Sofia" masonry heater kit 2.2 kW - Render - Bottom flue outlet
Sofia, a Finnish masonry heater kit, is the ideal solution for devotees of gentle, continuous heat who want to build the centrepiece of their home themselves.
With its mass of 1980 kg of firebricks, the Sofia heater releases the heat of one firing for 53.7 hours (declaration of performance, EN 15250 standard): it can heat a large room or a small house (75 to 125 m²), and its "modern render" finish can be customised to suit everyone's taste and thus make it a unique piece.
It is offered here with the flue outlet in the bottom position.
Made to order
Price:
€5,294.88
Tax included
Colour
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
The masonry heater: an ecological and economical solution for your home.
In a world where the need for heating solutions is becoming acute, the masonry heater stands as a relevant choice on the market.
Weighing 1950 kg, this "Sofia" masonry heater embodies the perfect blend of tradition and modernity and offers much more than a simple heating appliance. Indeed, this heat-storage stove will quickly become the heart of your home, providing gentle, constant heat to create a comfortable and welcoming atmosphere.
Why choose the Sofia masonry heater?
The Sofia masonry heater offers many advantages for efficient, comfortable heating.
First of all, its substantial mass of 1950 kg of dense firebricks allows it to store optimally the heat produced by burning wood (33 cm logs).
Thus, after a first load of 5 kg followed by two additional loads of 3.8 kg, Sofia will release heat steadily for several hours, which sets it apart from conventional wood stoves that need to be reloaded regularly.
Moreover, its heating versatility makes it an ideal solution both as the main heating for a house of 75 to 125 m² and as supplementary heating, for example for a conservatory or an occasionally used room.
In addition, by efficiently storing the thermal energy released by the flames, it provides optimal thermal comfort throughout the day and night thanks to a gentle, prolonged release of heat by radiation and convection.
Its modularity and customisable design, according to needs and room layout, make it a unique product!
Quality and durability of the masonry heater
The Sofia masonry heater stands out for the robustness of its construction, made possible by the use of high-quality Finnish materials.
Indeed, made with grog firebricks that can withstand high temperatures, its masonry structure of almost 2 tonnes ensures its durability over time.
Its ability to distribute heat evenly while guaranteeing energy efficiency makes it a lasting investment for lovers of wood heating.
Easy installation: a kit ideal for self-build!
Installing this masonry heater is made easier by its modular design, and all the materials needed to build it are included in this kit:
✅ The firebricks
✅ The refractory mortar for laying the bricks
✅ The finishing render, available in 6 colours
✅ All the hardware in black or grey steel (to be specified):

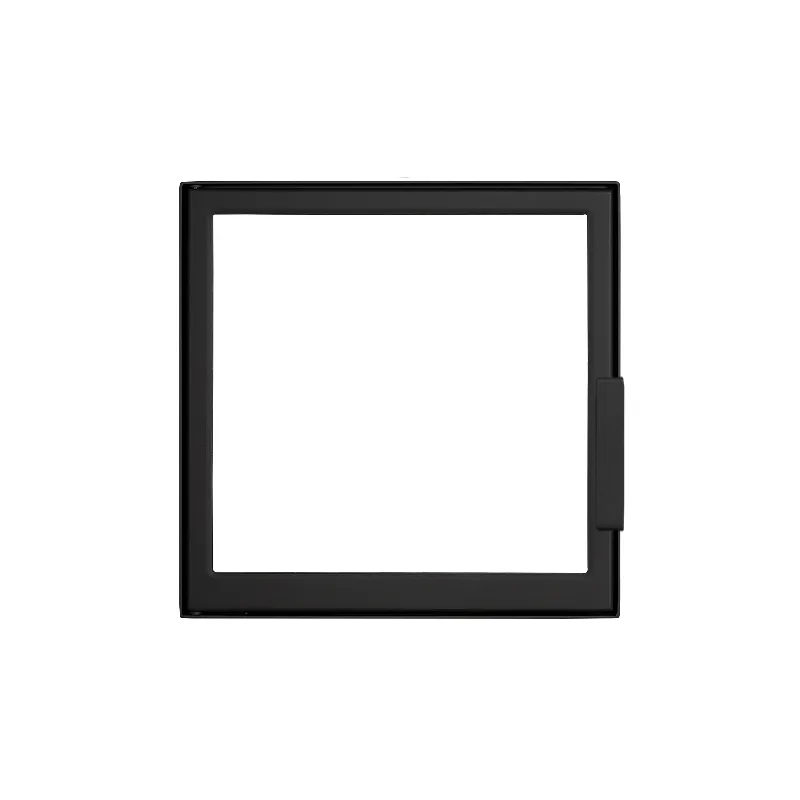

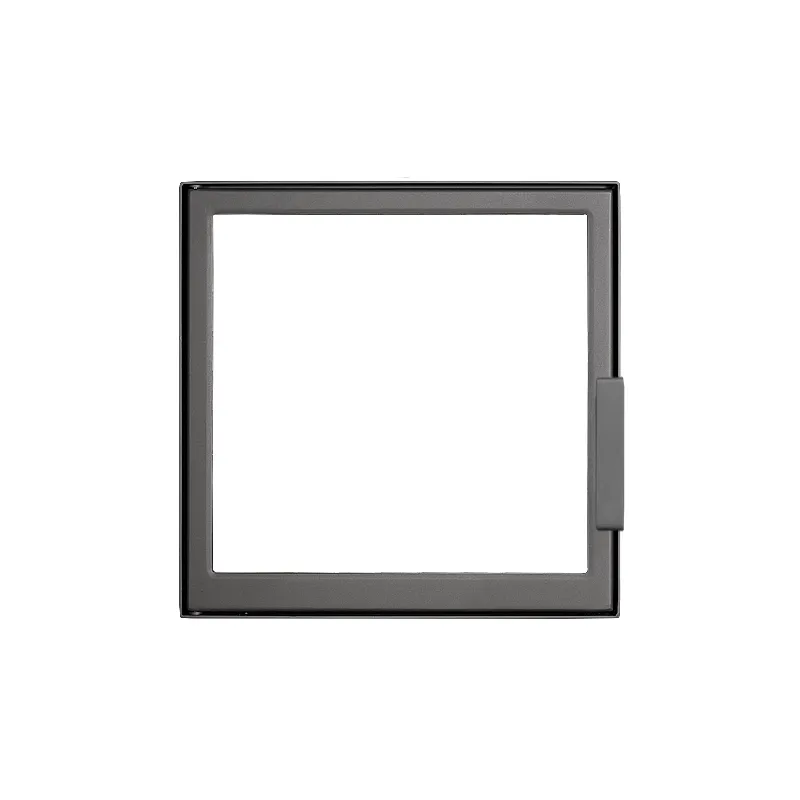

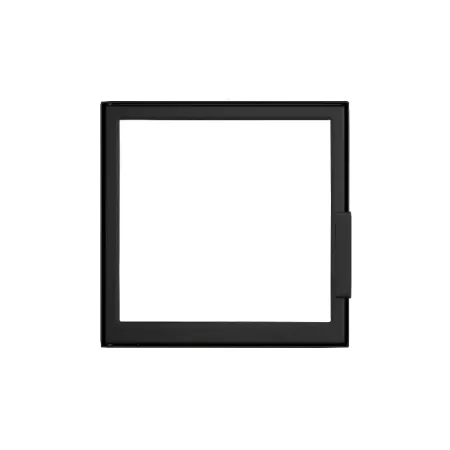

- 1 firebox door (Handle on the left or right, to be specified), recess dimensions 410 x 410 mm
- 1 ash door, recess dimensions 270 x 130 mm, which, when open, provides an air inlet when needed.
- 2 soot doors (Can be fitted on the front or on the sides), recess dimensions 130 x 130 mm
✅ The hardware is also offered in black cast iron: this free option must be added when ordering and changes the look of the stove. See the option " Cast iron hardware for Tiileri masonry heater kits - Without oven ".
✅ A ceramic finishing plate in "Carbon" colour (made up of 9 ceramic tiles) to be installed around the firebox door, providing an aesthetic contrast with the render.

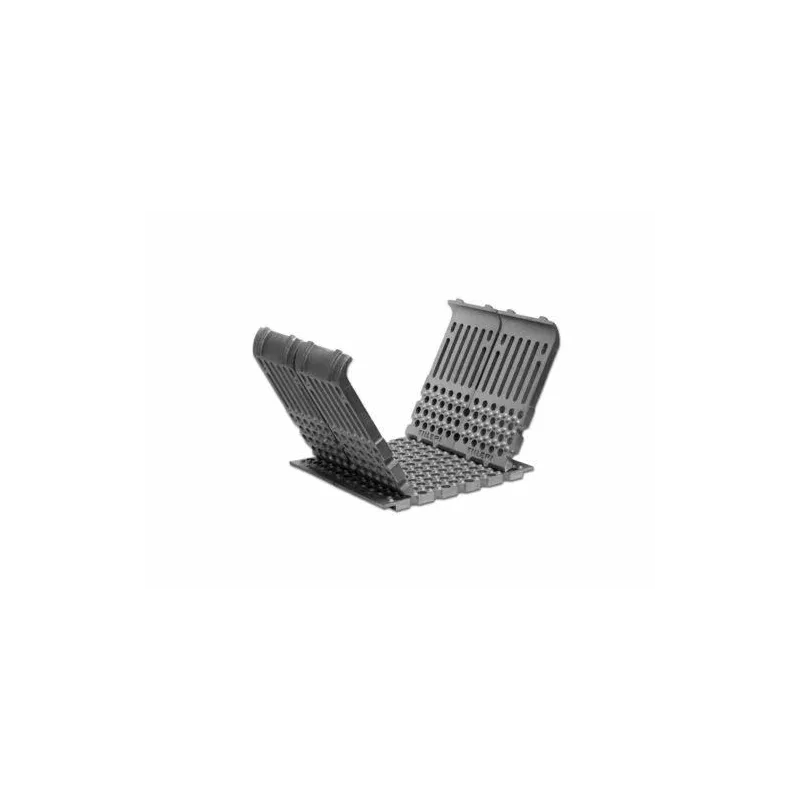

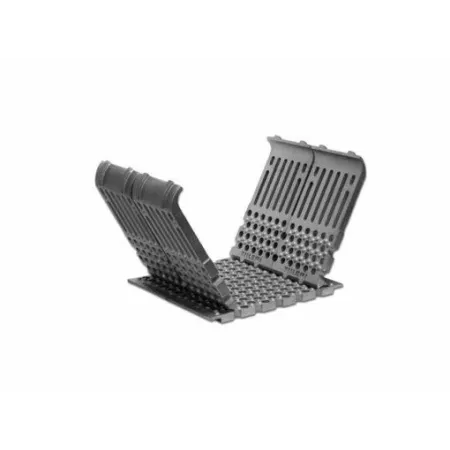

✅ 6 cast iron grates (2 lower grates and 4 inclined grates), a system patented by Tiileri.

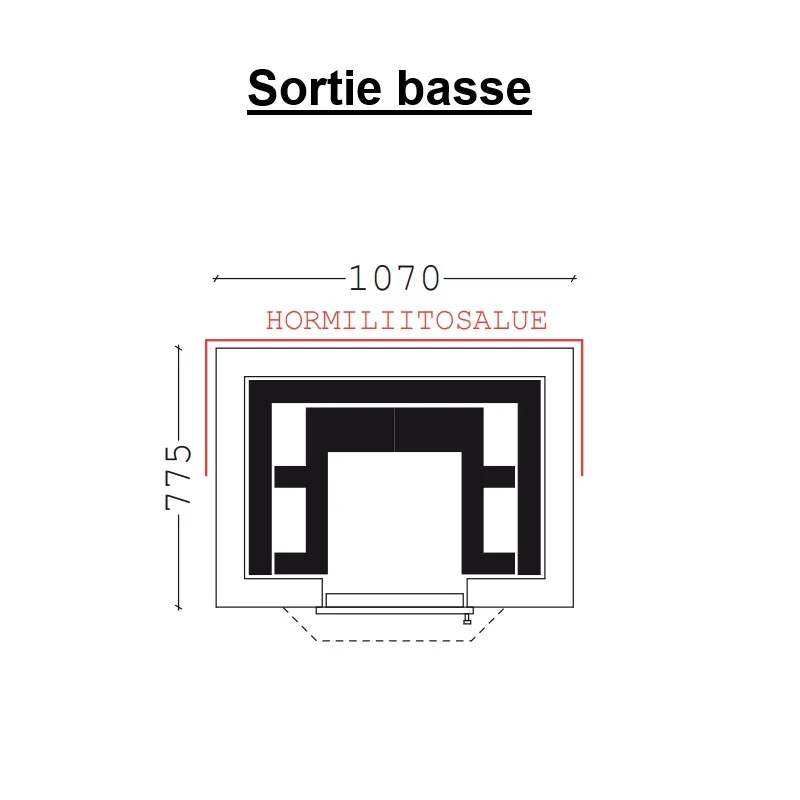

✅ A flue outlet centred at the rear bottom via a 120 x 200 x 250 mm metal connection sleeve.
✅ An assembly guide and practical advice guarantee a trouble-free installation.
Optional:
For this stove we offer the " AirBox " option, which makes your heating appliance airtight while bringing in cold outdoor air in a controlled way and according to need.
Conclusion
Whether you are a passionate self-builder or a wood-heating professional, the Sofia masonry heater is for everyone: an ecological, economical and durable heating solution and at the same time the centrepiece of the home thanks to its conviviality and customisable decorative look, Sofia will meet all your requirements!
By offering this stove, Cœur de Foyer wishes to make a lasting contribution to the comfort of homes, both thermally and aesthetically.
