Specifications
| Material | Enamelled steel |
|---|---|
| Colour | Black |
| Finish | Matt fine texture |
| Wall thickness | 0.7 mm |
| Maximum service temperature | 450°C |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-2 |
| Certification | CE 2270-CPR-048 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | 1 mm enamelled steel single-wall flue |
| Flue type | Connectors and adapters |

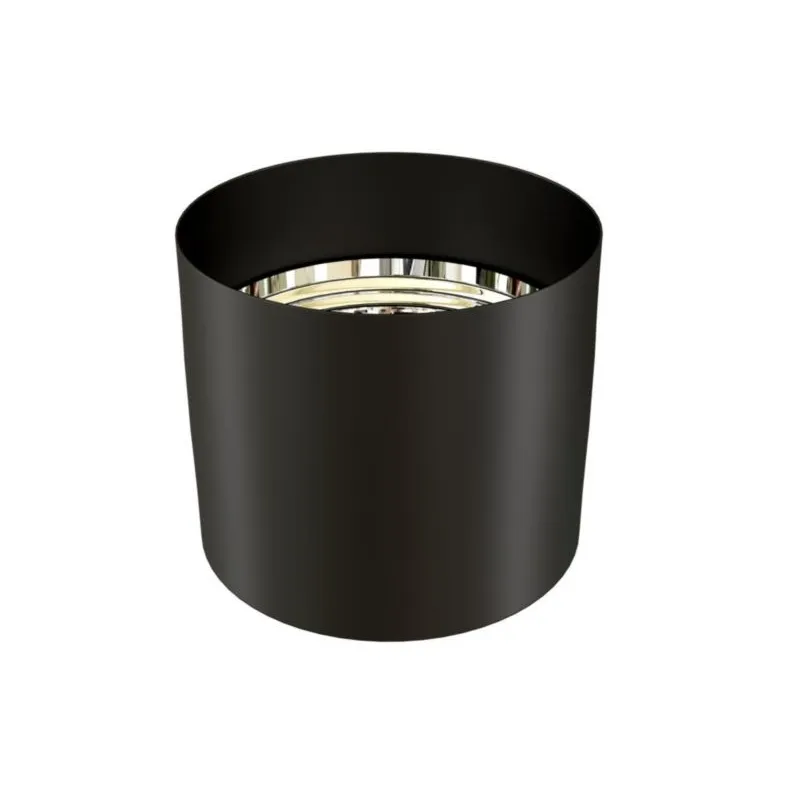

Anti-creosote adaptor Female / Female - Enamelled flue pipe 1 mm
Single wall black enamelled steel adaptor, used as an anti-creosote or anti-condensation sleeve to be positioned at the outlet spigot of wood-burning appliances such as wood stoves, fireplaces, inserts, masonry heaters, etc.
Available in diameters 125 to 200 mm.
Lead time: 2 to 3 weeks
Related products:
👉 The anti-creosote or anti-condensation adaptor in 1 mm black enamelled steel is an indispensable part for guaranteeing the cleanliness and safety of your installation
This Female / Female sleeve connects directly onto the stove's outlet spigot (male).
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
➡️ Made in France by TEN, the flue specialist for more than 70 years, the pipe is made of continuously welded enamelled steel, guaranteeing robustness and high resistance to acids, high temperatures and scratches.
What is enamelled steel?
Enamel is a glass made from a mixture of mineral materials (silica, quartz...) melted at 1200° C and ground, then applied to the steel and fused by firing at 840° C.
What are the advantages of Ten enamelled steel?
✅ Colour stability under heat
✅ Acid resistance
✅ Strength
✅ Resistance to scratches, abrasion, impacts and wear
✅ Holds neither bacteria nor odours
✅ Clean, durable and attractive material
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
