Specifications
| Material | Enamelled steel |
|---|---|
| Colour | Black |
| Finish | Matt fine texture |
| Length (overall) | 500 mm |
| Wall thickness | 1 mm |
| Maximum service temperature | 450°C |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-2 |
| Certification | CE 2270-CPR-048 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | 1 mm enamelled steel single-wall flue |
| Flue type | Straight lengths |

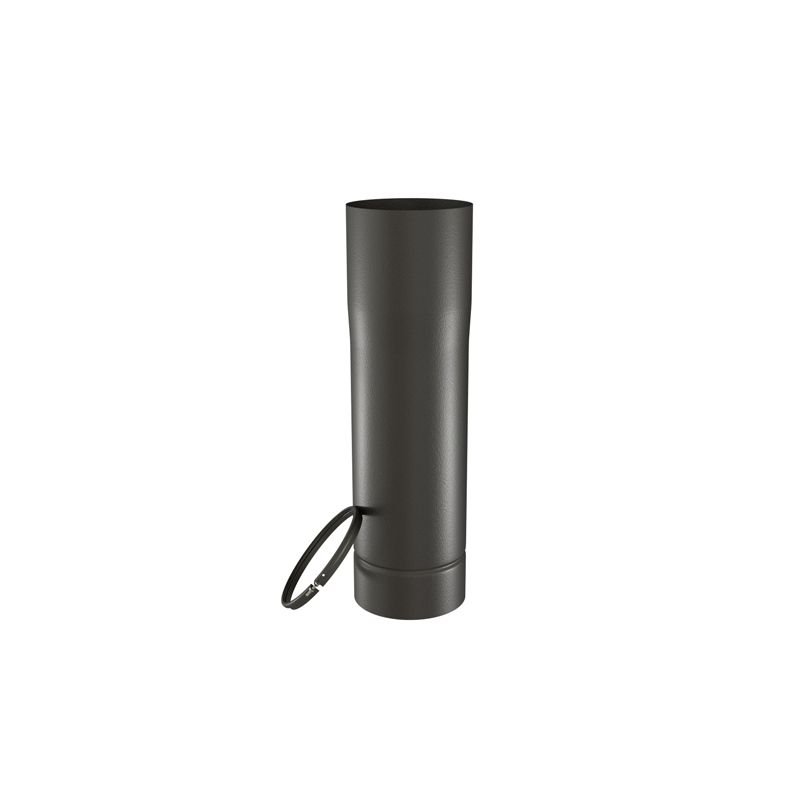

Straight length 500 mm adjustable from 60 to 360 mm - Enamelled flue pipe 1 mm
Sliding flue pipe, 500 mm long, with adjusting ring, working length 60 to 360 mm, in 1 mm single wall enamelled steel, for connecting the stove to the chimney flue so that it can be easily removed for maintenance.
Available in 100, 125, 150 and 180 mm diameters.
Lead time: 2 to 3 weeks
Related products:

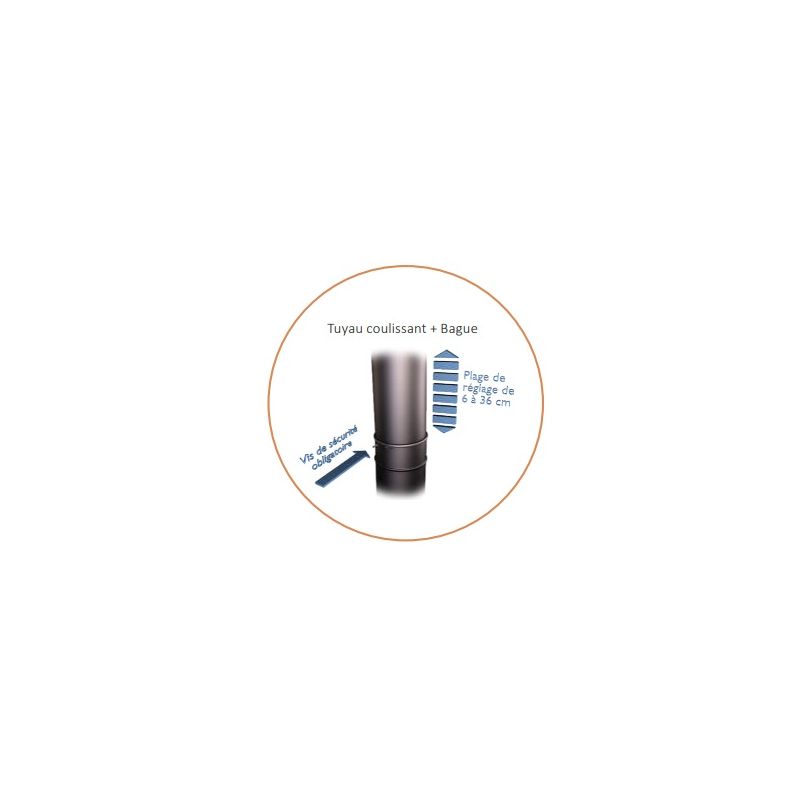

👉 The 500 mm sliding straight length in 1 mm black enamelled steel connects the heating appliance to the chimney flue: its male side slides into the pipe below to obtain a working length of 60 to 360 mm and, once adjusted, its locking ring secures the pipe. It therefore allows the stove pipe to be fitted and removed easily, particularly for maintenance.
Example: If the sliding pipe is connected to a 50 cm pipe, you will obtain a total length of 56 cm minimum to 86 cm maximum.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
➡️ Made in France by TEN, the flue specialist for over 70 years, the pipe is in 1 mm thick enamelled steel, continuously welded, guaranteeing strength and high resistance to acids, high temperatures and scratches.
What is enamelled steel?
Enamel is a glass made from a mixture of mineral materials (silica, quartz...) melted at 1200° C and ground, then applied to the steel and fused by firing at 840° C.
What are the advantages of Ten enamelled steel?
✅ Colour stability under heat
✅ Acid resistance
✅ Strength
✅ Resistance to scratches, abrasion, impacts and wear
✅ Holds neither bacteria nor odours
✅ Clean, durable and attractive material
⚠️ Reminder of the safety distances according to the NF DTU 24.1 standard:
The safety distance to be kept between a single-wall connecting flue pipe and a combustible material (plasterboard, panelling, PVC, OSB, etc.) is 3 times the nominal diameter of the pipe, with a minimum of 37.5 cm.
However, this distance can be reduced to 1.5 times the diameter of the pipe (with a minimum of 20 cm) by using insulation such as calcium silicate boards (fitted with an air gap) or wall protection boards with built-in insulation.
