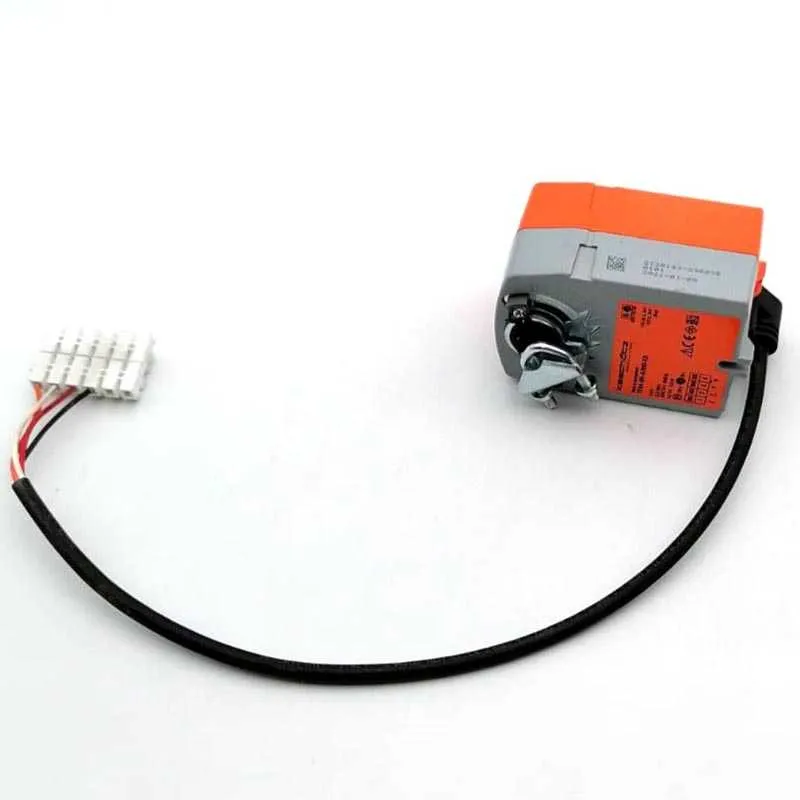

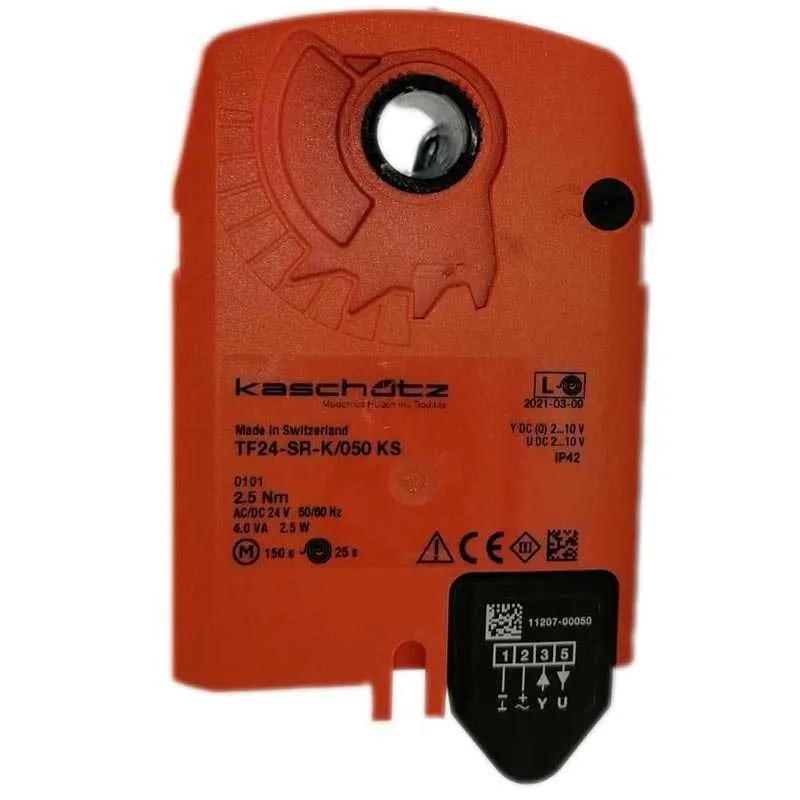

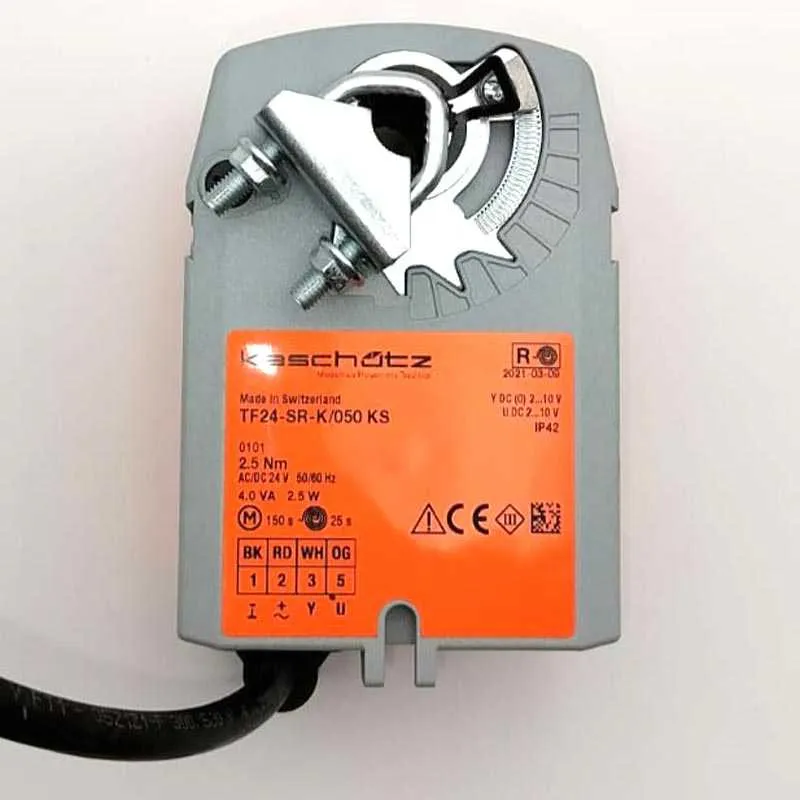

Motor for regulating damper
Motor for operating the blade of a Kaschutz air regulating damper
Last items in stock
Specifications
- AC/DC voltage
- AC/DC 24 V
- Power consumption (running)
- 2.5 W
- Power consumption (standby)
- 1 W
- power consumption for cable sizing
- 4 VA
- Control supply connection
- Cable 1 m, 4x 0.75 mm²
- Torque
- 2.5 Nm
- Control type
- DC 2...10 V
- Direction of motor movement
- selectable using the L / R switch
- Direction of rotation (safety function)
- Selectable by L / R mounting
- Handles
- No
- Angle of rotation
- 95
- Running time (motor)
- 150 s / 90°
- Running time (safety function)
- <25 s
- Mechanical interface
- Damper drive: Universal drive nut 6...12.7 mm
- Protection rating
- IP42
- Ambient temperature
- -30...50°C [-22...122°F]
