Specifications
| Heat output (1 firing) | 18.5 kW |
|---|---|
| Useful heat output | 7 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 7.5 Kg |
| Maximum wood load | 20 kg |
| Log length | 50 cm |
| Material | Cast iron and refractory stone |

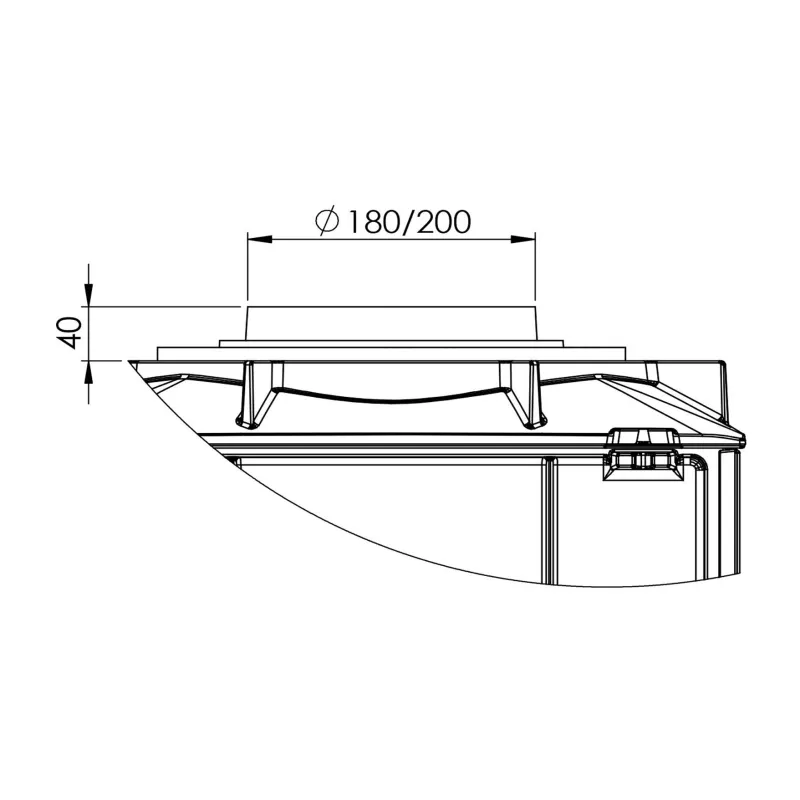

| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 180 or 200 mm |
| Air inlet | Ductable |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 45.7 g / s |
| Energy efficiency index (EEI) | 114.1 |
| Net weight | 285 Kg |
| Standard | According to EN 13229 |
| Manufacturer | Kaschuetz |
| Origin | Austria |
| Food contact | No |
| Contains wood | No |
Documentation:
Eurotherm firebox manual (in French)
Eurotherm firebox user manual
Eurotherm 12 technical data sheet
Eurotherm 12 technical data sheet
Eurotherm 12 performance
Eurotherm 12 declaration of performance
Eurotherm firebox assembly (in French)
Eurotherm firebox installation manual

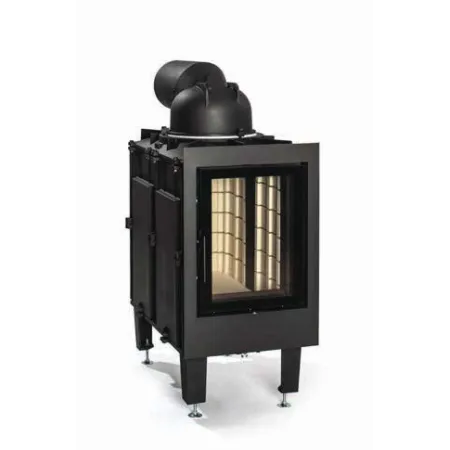

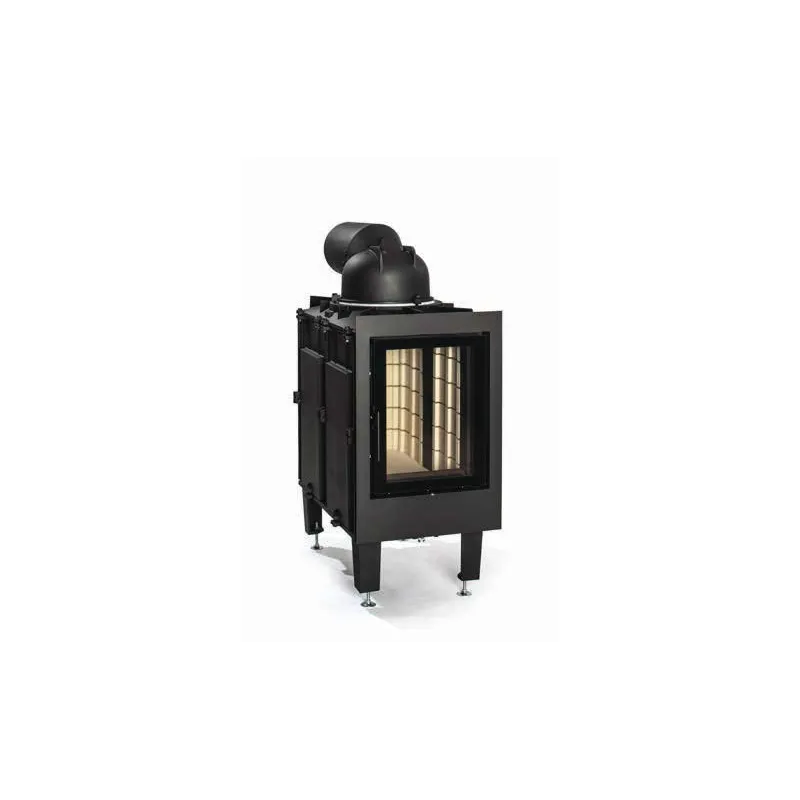

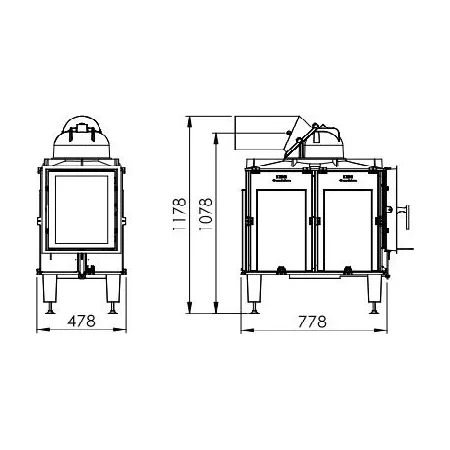

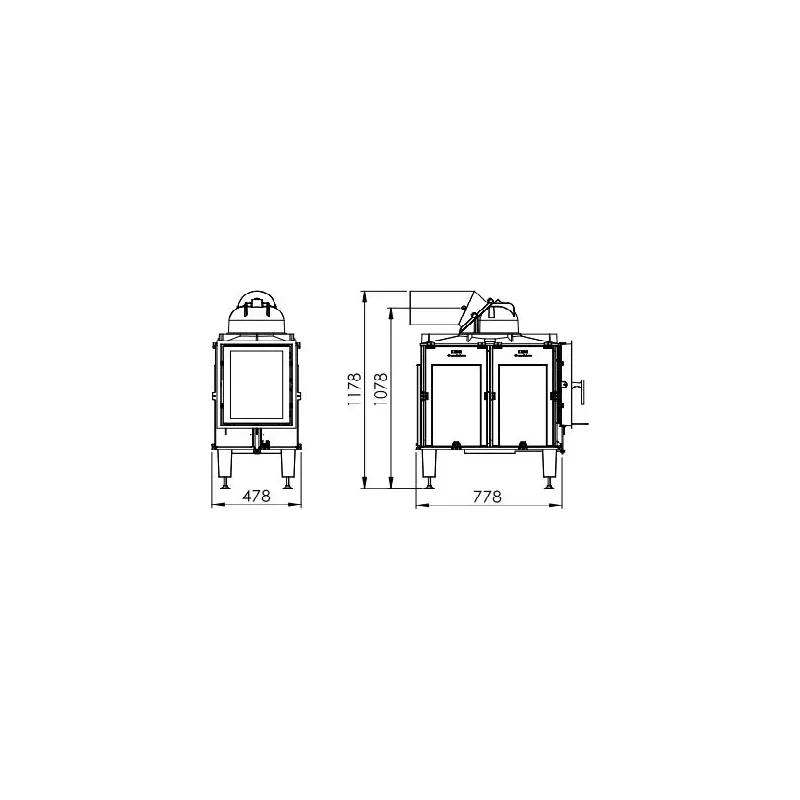

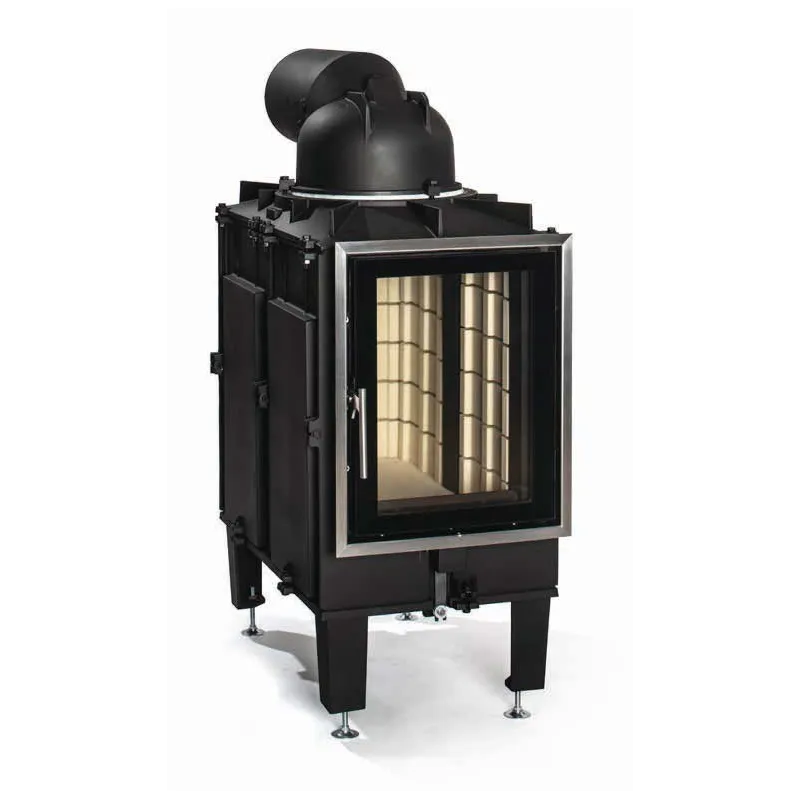

Eurotherm 12 cast iron firebox - 18.5 kW / 20 kg
Specific cast iron firebox with multi-point air injection to the UZ 37 standard, for building high-quality bespoke heat-storage stoves.
- Load: 7.5 to 20 kg per firing
- Nominal heat output: 18.5 kW
- Efficiency: > 80 %
Sur Commande
Price:
€4,888.80
Tax included

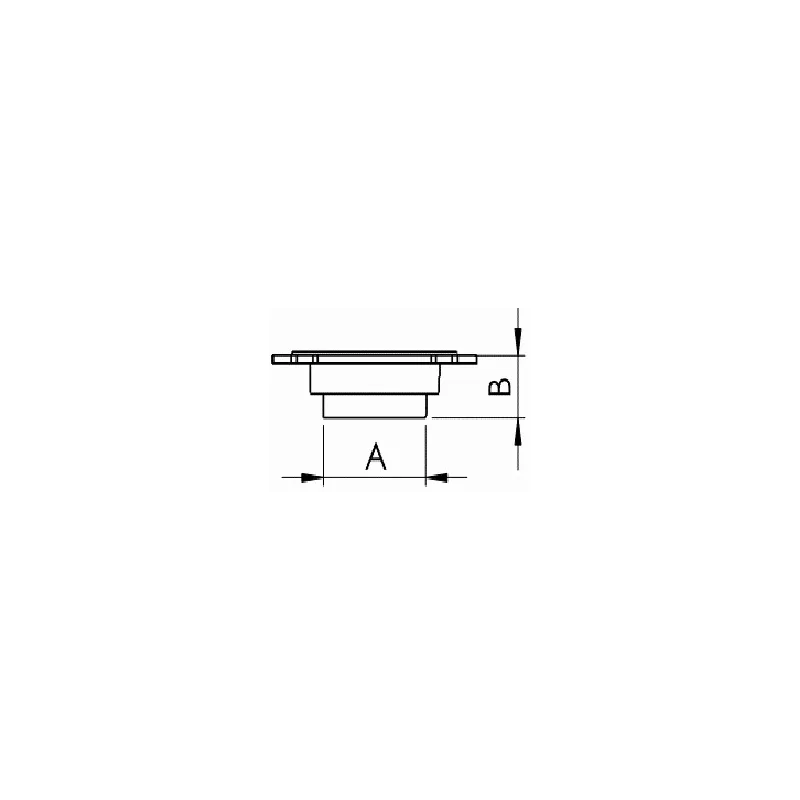

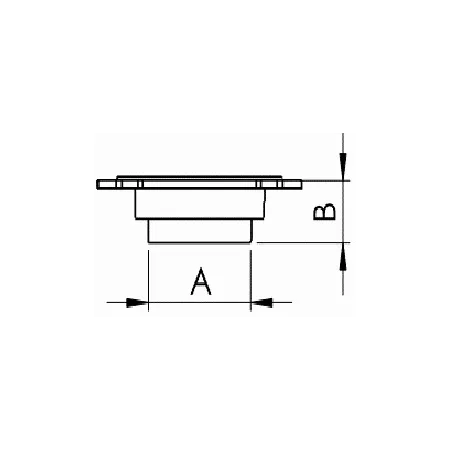

Air inlet

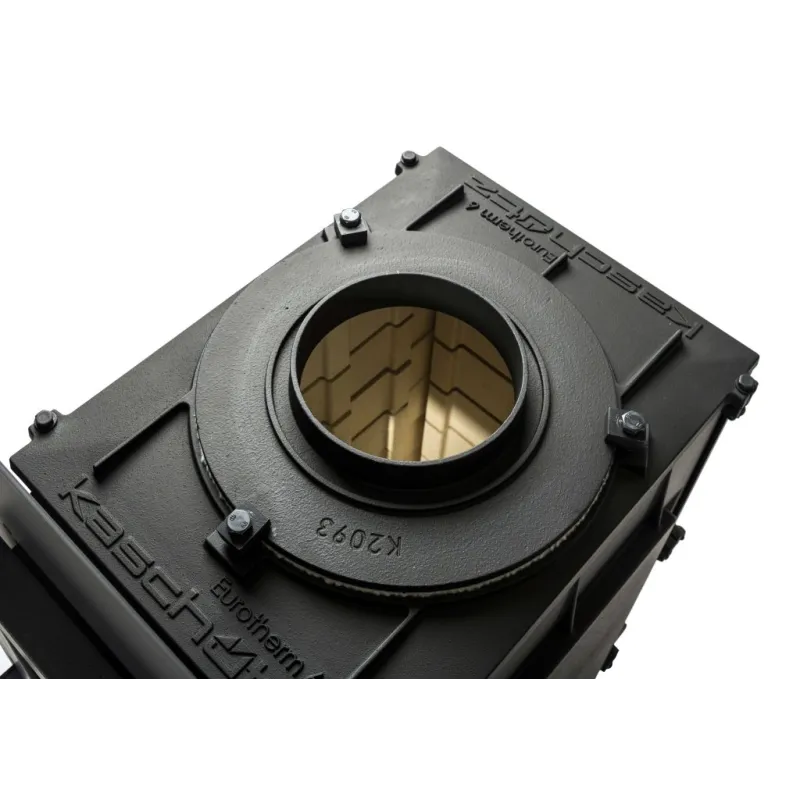

Flue outlet

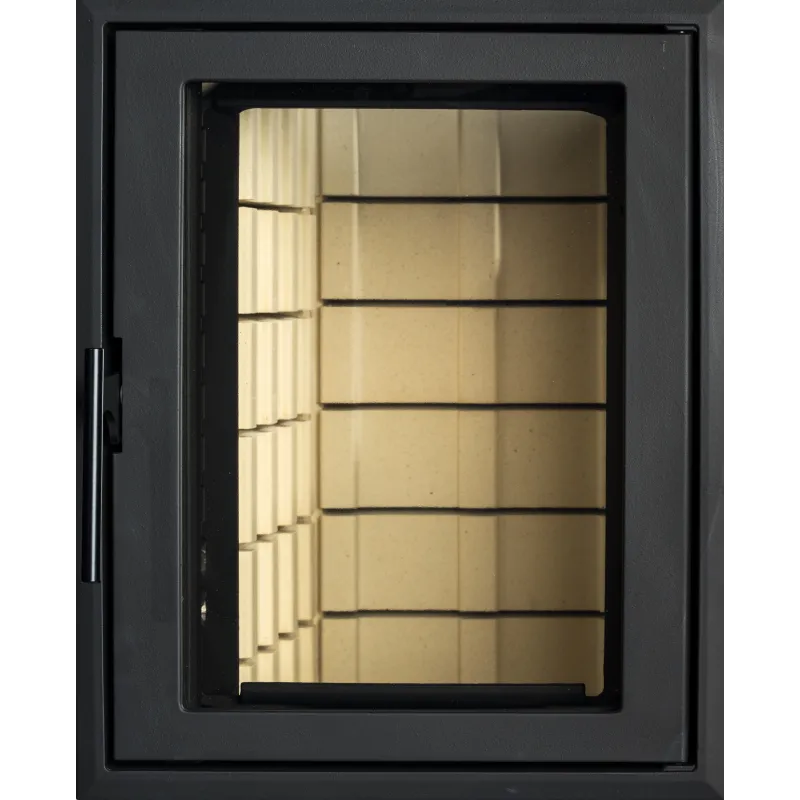

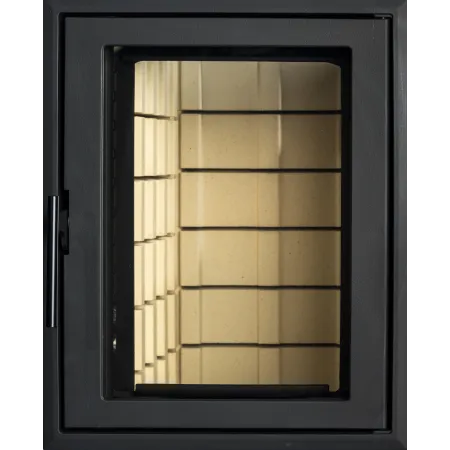

Door model
Product customization
Don't forget to save your customization to be able to add to cart
Related products:
20 kg / 18.5 kW cast iron firebox for building high-quality bespoke heat-storage stoves, with vertical double-glazed glass and firebox with multi-point air injection (UZ37).
✅ Energy efficiency class: A+
✅ Energy efficiency class: A+
✅ Nominal heat output: 18.5 kW
✅ Reloading interval: 4 h
✅ Reloading interval: 4 h
✅ Logs: 50 cm

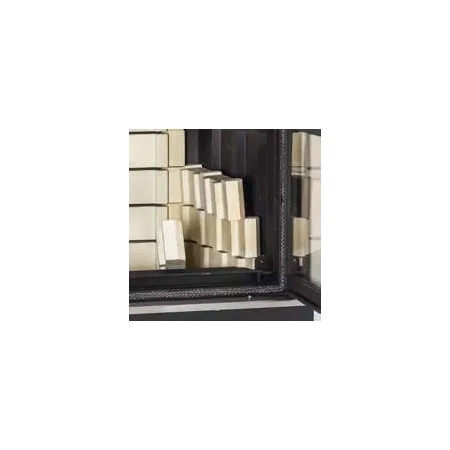

✅ Weight: 195 kg (cast iron) + 90 kg stones
✅ Efficiency: > 80 %

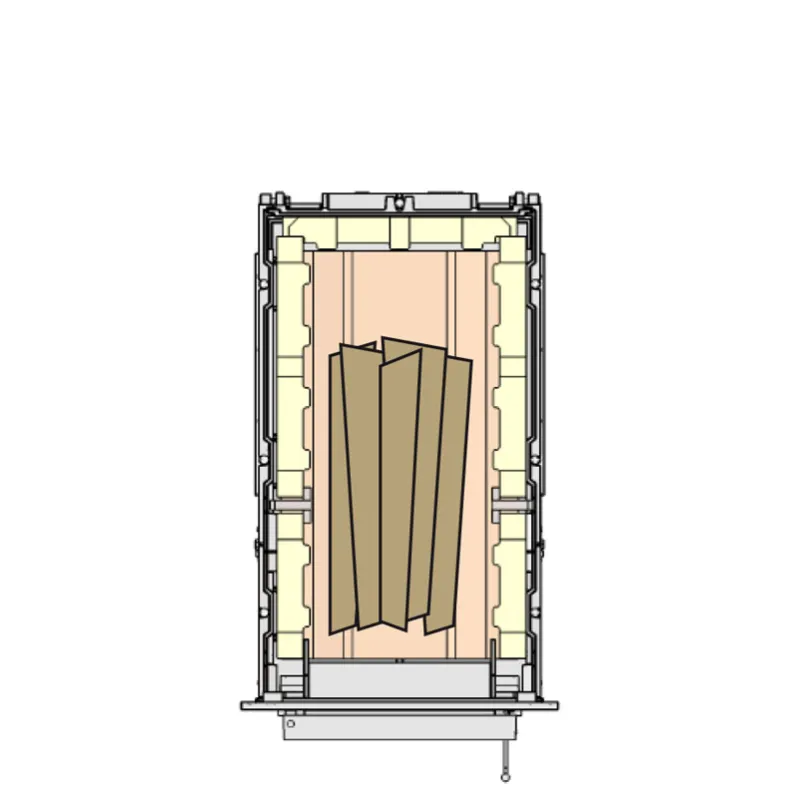

✅ Combustion chamber dimensions: 290 (W) x 620 (D) x 500 mm (H)
✅ Harmonised technical specifications (standards): EN 13229, 1. BIMSCHV Stufe2, Art 15a (ab 2015), UZ 37
✅ Combustion chamber dimensions: 290 (W) x 620 (D) x 500 mm (H)
✅ Harmonised technical specifications (standards): EN 13229, 1. BIMSCHV Stufe2, Art 15a (ab 2015), UZ 37
