Specifications
| Material | Steel |
|---|---|
| Finish | Matt |
| Width (overall) | 500 mm |
| Width (internal) | 457 mm |
| Height (overall) | 250 mm |
| Height (internal) | 210 mm |
| Thickness | 40 mm |
| Wall thickness | 2 mm |
| Air passage | 426 cm² |
| Net weight | 2 kg |
| Standard | According to NF DTU 24.2 |
| Origin | Spain |
| Air grille type | Rectangular |

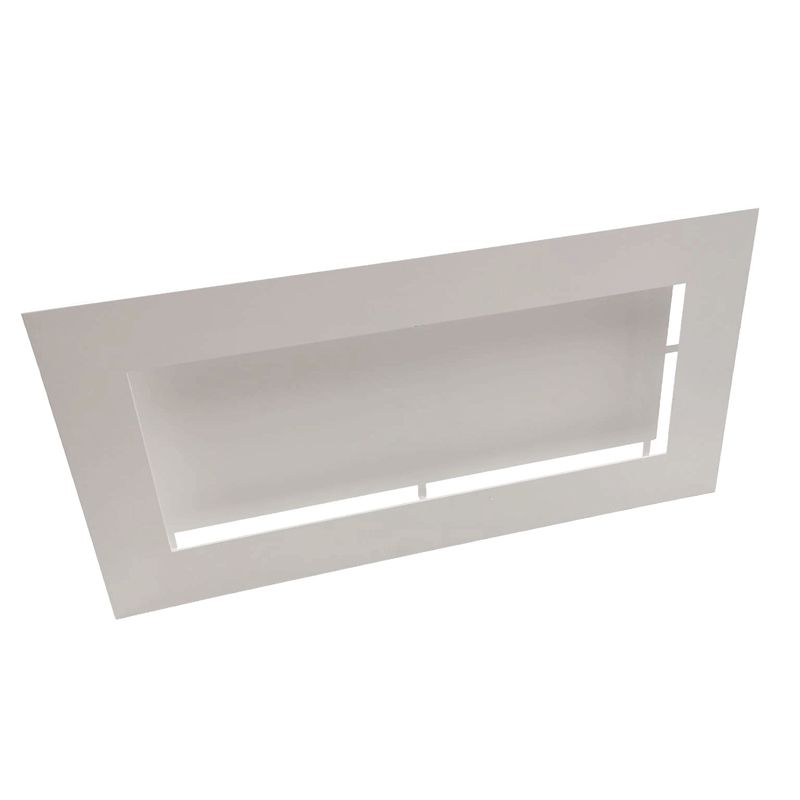

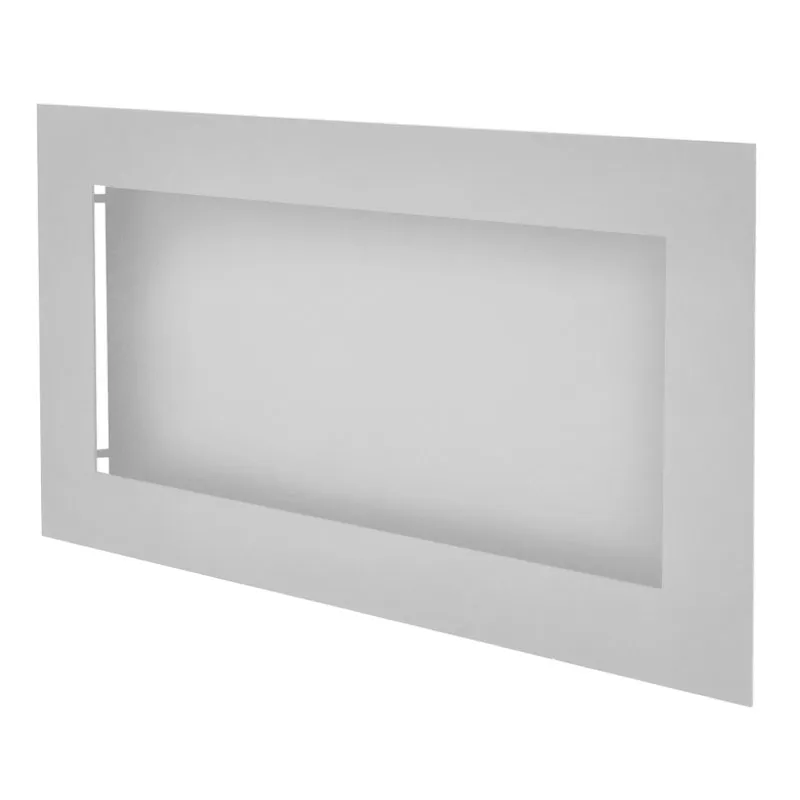

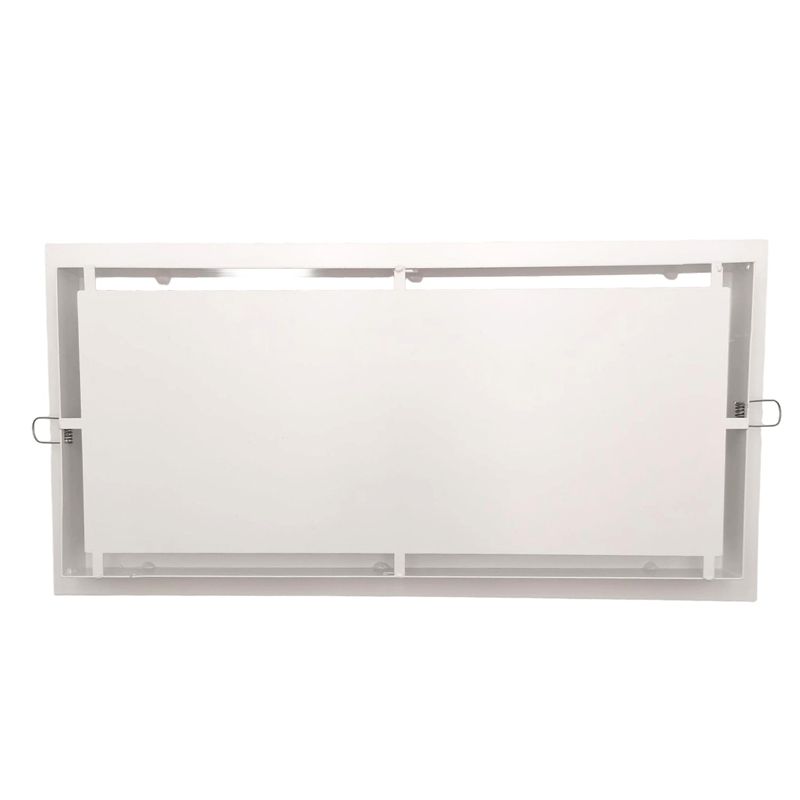

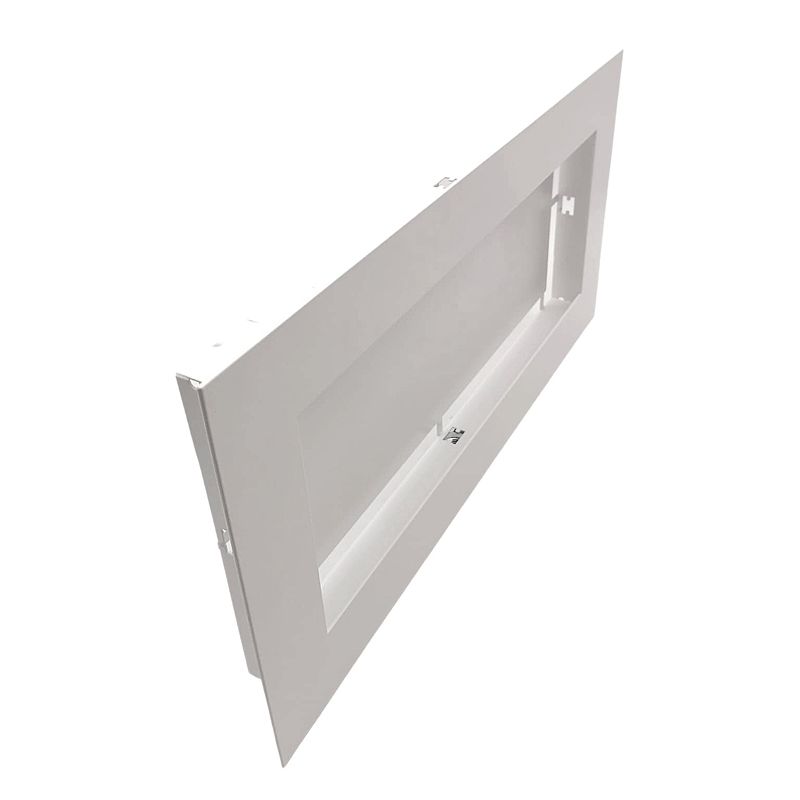

Slot hot air grille - 500 x 250 mm
Used as a convection, pressure-relief or ventilation grille, this large 500 x 250 mm air grille with its neat finish fits easily into the cladding of your fireplace, masonry heater, insert, etc.
Available in black and white to suit all interiors.
En stock
Related products:
👉 The Slot 500 x 250 mm grille distributes hot air evenly in the room, without creating an overly direct or unpleasant air flow. It can also serve as a hot air intake to recover heat from one room to another or into a ventilation network.
Useful in convection heating systems, stoves, fireplaces, inserts, humidity-controlled ventilation, etc. Its clean lines will let it blend perfectly into your room.
Technical characteristics:
- Overall dimensions: 500 x 250 mm
- Recess dimensions: 457 x 210 mm
- Front air passage dimensions: 397 x 147 mm
- Total thickness: 40 mm
- Front thickness: 2 mm
- Air passage: 426 cm²
- Weight: 2 kg
Advantages of the Slot hot air grille:
✅ In 2 mm thick steel: durability and strength guaranteed!
✅ Easy installation thanks to its side clip fixing system
✅ Matt black (RAL 9005 TXT) or white (RAL 9003) painted steel
✅ Compliant with the NF DTU 24.2 standard
✅ 100% recyclable materials
Explanatory video of the installation of the Slot air grille:
