Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Temperature class (continuous operation) | T450 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 2270-CPR-040 |
| Manufacturer | Ten |
| Origin | France |
| Flue range | Double-skin flexible liner |
| Flue type | Complete kits |

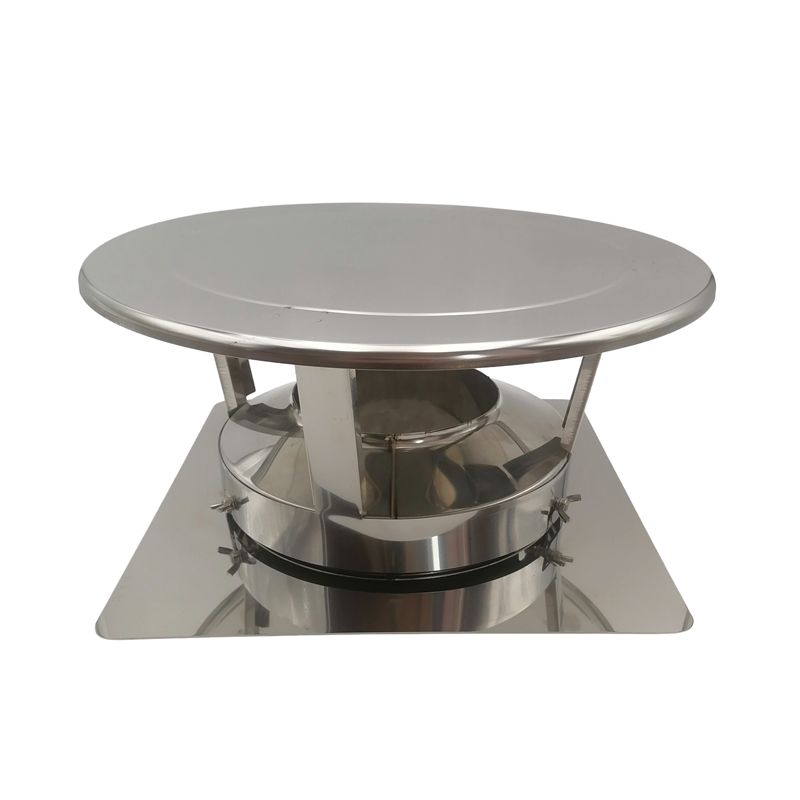

Complete round stainless steel roof outlet kit - For flexible flue liner

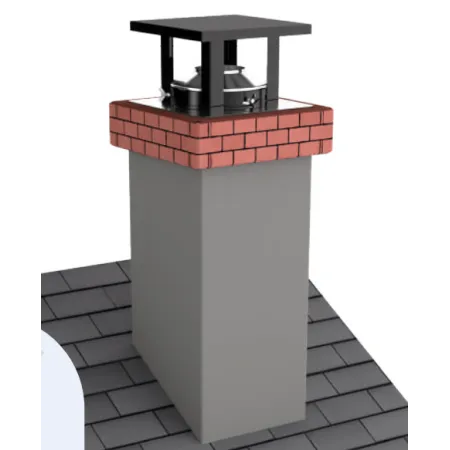

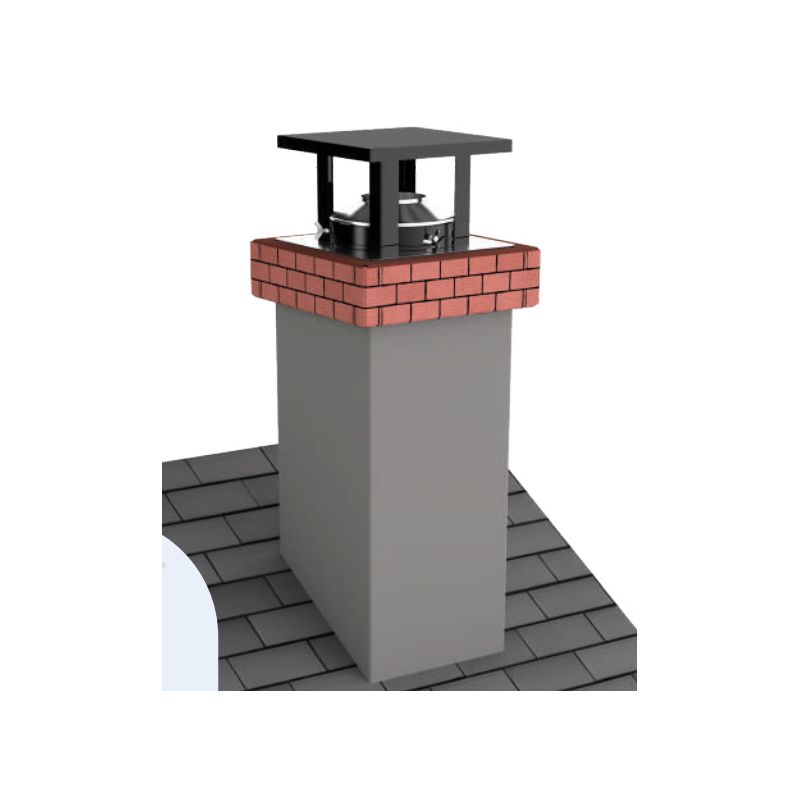

Complete stainless steel roof outlet kit to be installed on the flexible flue liner in an existing masonry chimney.

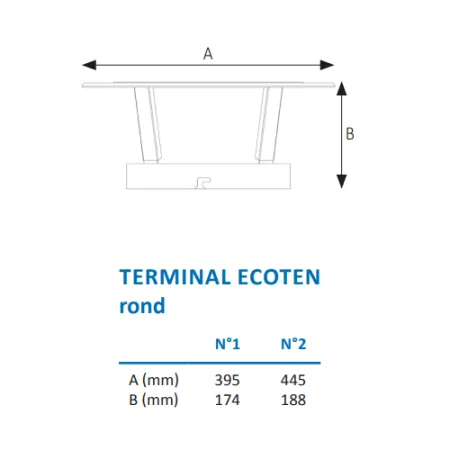

Supplied with a round rain cap and available in various diameters.
Lead time: 2 to 3 weeks
Related products:
👉 The 304 stainless steel roof outlet kit with round rain cap is designed to secure and "terminate" the flexible flue liner in a weathertight and attractive way.

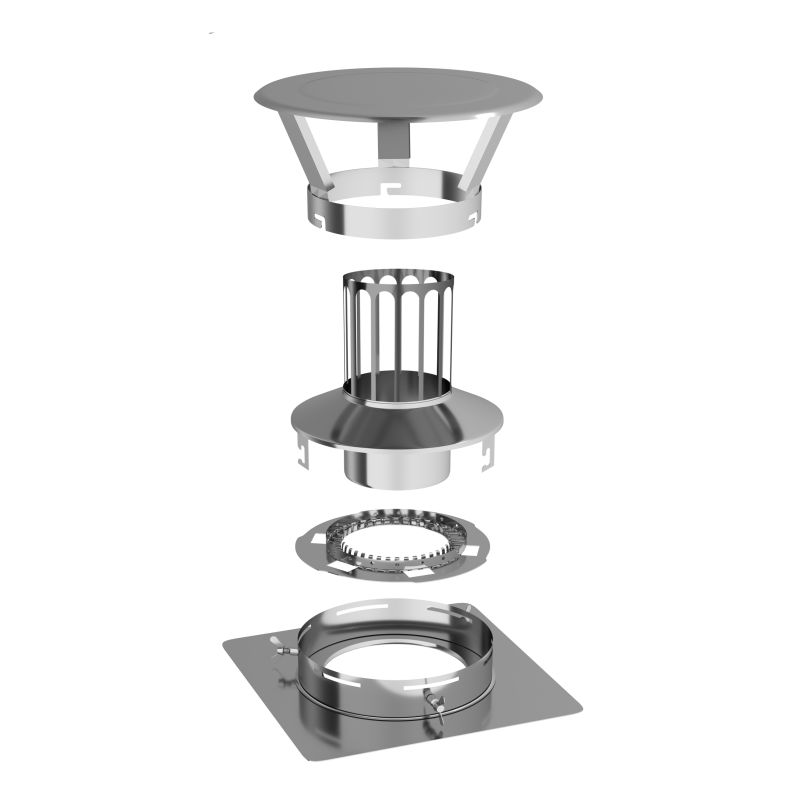

It consists of:

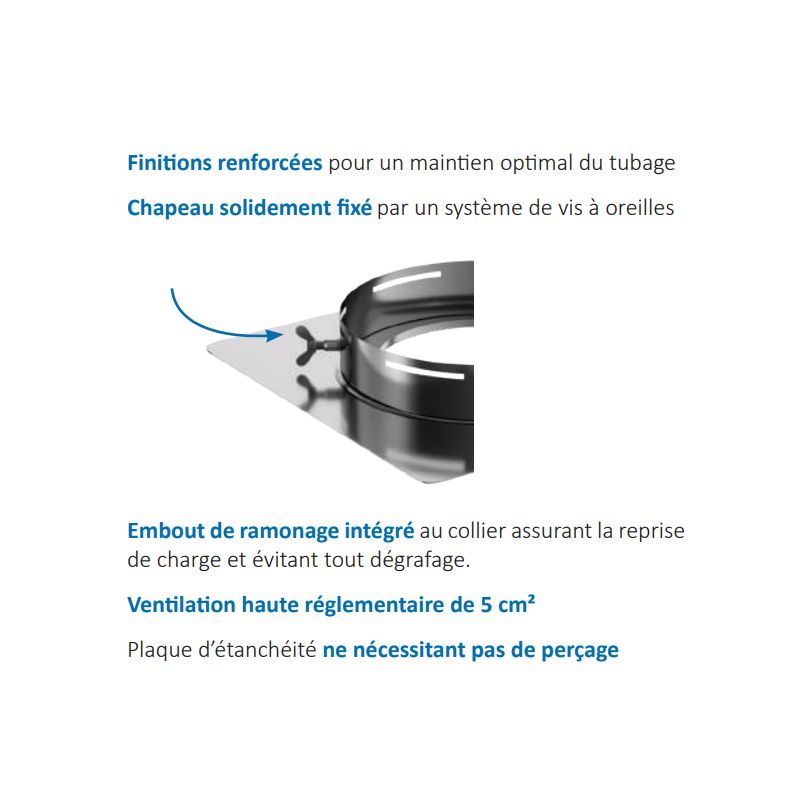

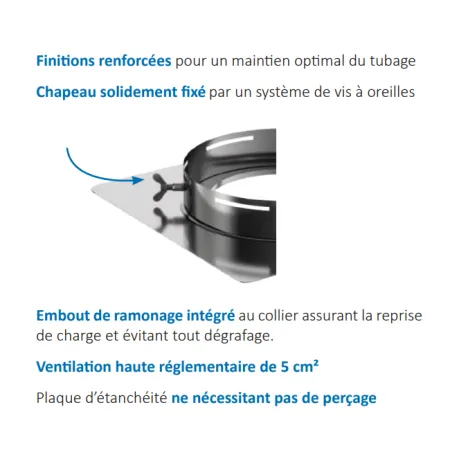

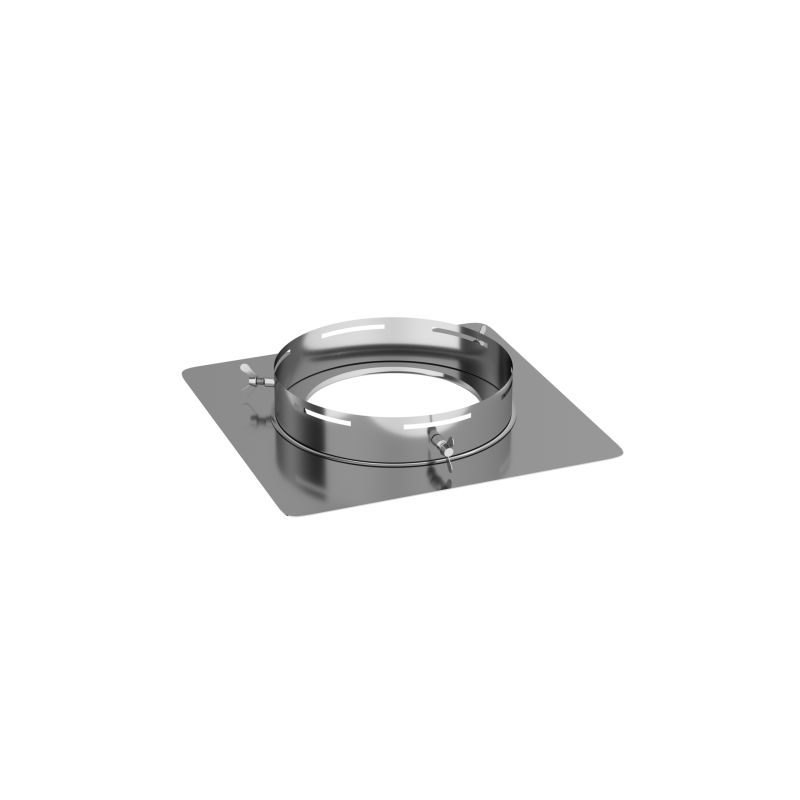

➡️ A square 35 x 35 cm stainless steel sealing plate with wing-screw system to fix the cap securely

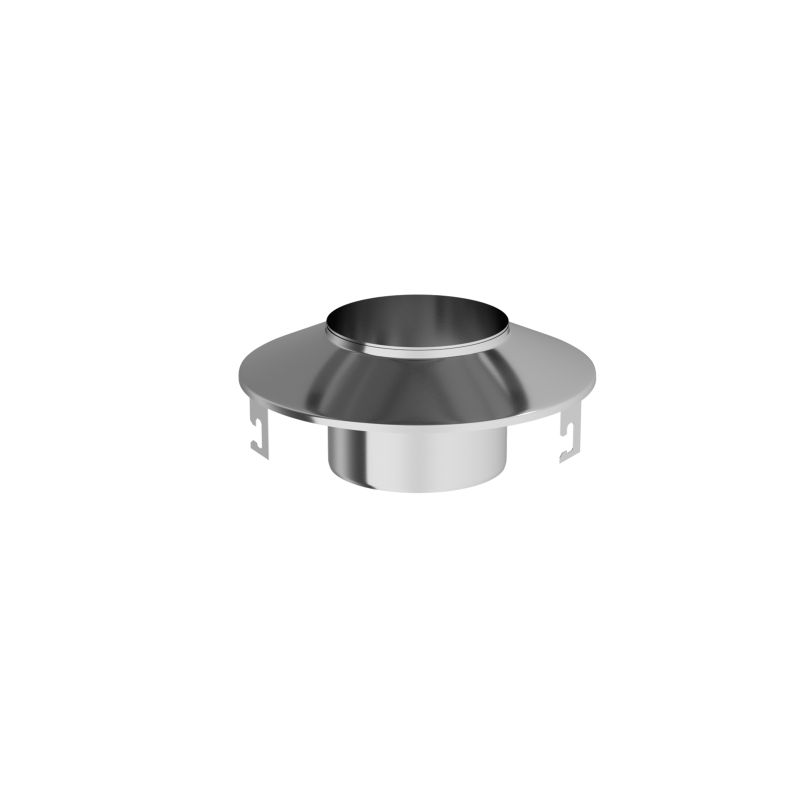

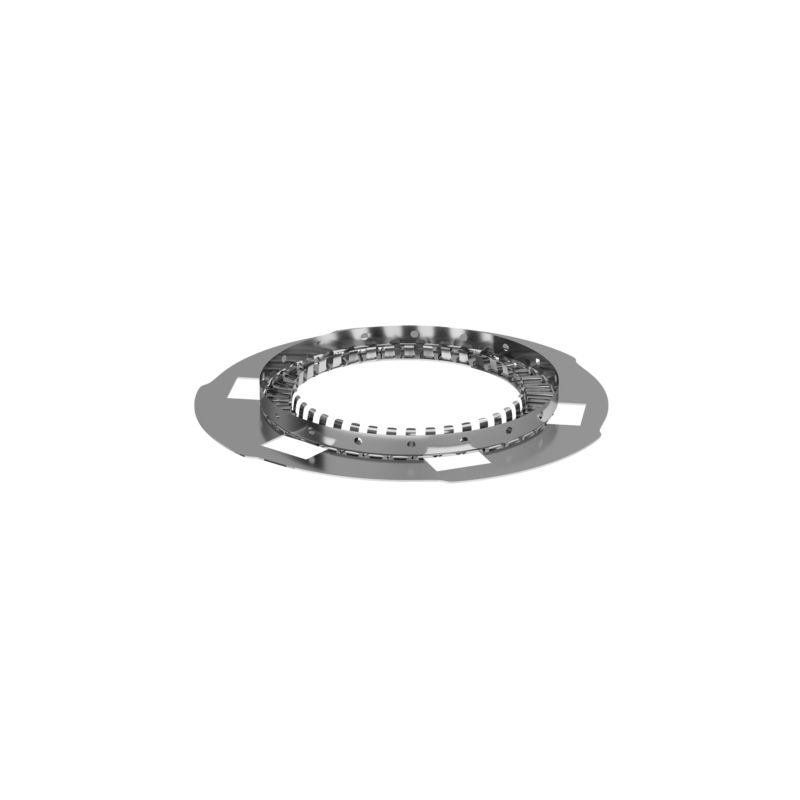

➡️ A push-fit finishing cap (with bird guard for 80 and 100 mm diameters) and a claw clamp to hold the flexible liner and provide the 5 cm² ventilation required by the DTU regulations.

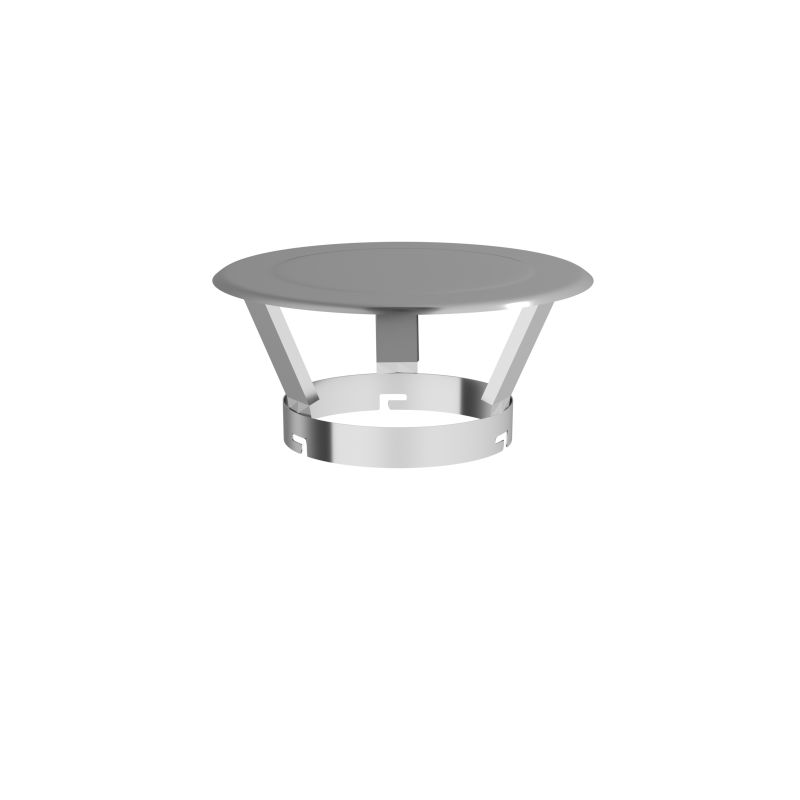

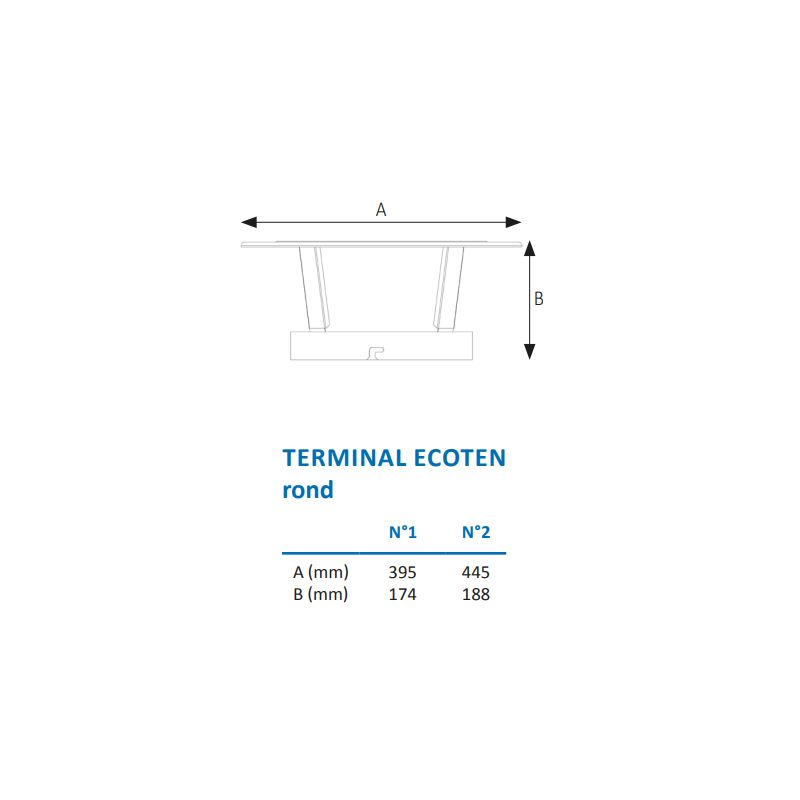

➡️ A clip-on round rain cap.
⚠️ TEN flexible flue liner accessories may be compatible with other brands of flexible liner provided they have the same internal / external dimensions.
Reminder of the internal and external diameters of TEN LISS flexible flue liners:
Int. 80 mm → Ext. 86 mm
Int. 100 mm → Ext. 106 mm
Int. 125 mm → Ext. 131 mm
Int. 150 mm → Ext. 156 mm
Int. 180 mm → Ext. 186 mm
Int. 200 mm → Ext. 206 mm
In which applications should the accessories for TEN double-skin stainless steel flexible flue liners be used?
Ten stainless steel flexible flue liners and their accessories are multi-fuel:
✅ Flue gas evacuation from wood and pellet fireboxes, stoves and boilers
✅Flue gas evacuation from gas boilers (Standard T>160°, high-efficiency and low-temperature, condensing)
✅ Flue gas evacuation from oil boilers (Standard T>160°).
