Specifications
| Material | 316 L stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 0.4 mm |
| Maximum service temperature | 600°C |
| Temperature class (continuous operation) | T200 and T600 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 0099-CDP-A71-0031 and 0033 and 0035 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | 0.4 mm stainless steel single-wall flue |
| Flue type | Clamps and brackets |

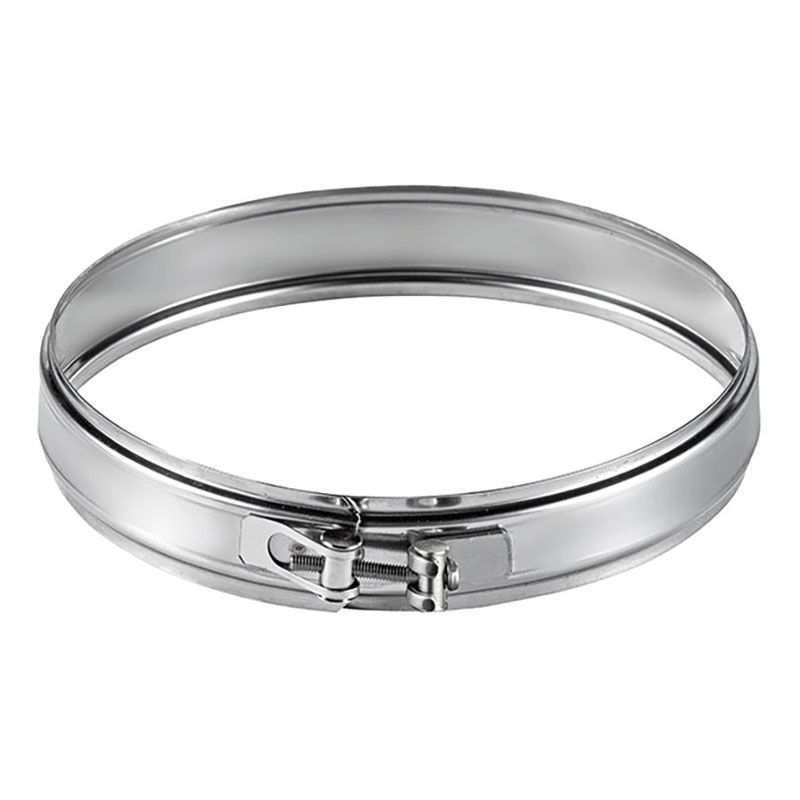

Locking band - 0.4 mm stainless steel flue pipe
Locking band, also known as a safety clamp, used to guarantee the strength and tightness of the joint between two 0.4 mm single-wall stainless steel flue pipes.
Available in diameters from 80 mm to 200 mm.
Lead time: 2 to 3 weeks
👉 The 0.4 mm stainless steel locking band is an essential safety component for ensuring the secure hold andsealing of 0.4 mm single-wall stainless steel flues from 180 mm diameter upwards (diameters not fitted with the Easy Lock system).
It prevents the sections from coming apart due to vibration, thermal expansion and repeated sweeping.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
Where can 316L stainless steel single-wall flues be used?
Bofill modular single-wall stainless steel flues are multi-fuel:
✅ Flue gas evacuation from wood stoves, inserts, fireboxes and wood, biomass and pellet boilers
✅ Flue gas evacuation from wood-fired ovens, bread and pizza ovens installed indoors or outdoors
✅ Flue gas evacuation from natural-draught gas fires and boilers
✅ Flue gas evacuation from gas and oil boilers for domestic and industrial heating and hot water production.
✅ Fresh air supply
What is a Bofill single-wall stainless steel modular flue?
Bofill single-wall stainless steel flues are made from AISI 316L stainless steel, 0.4 mm thick.
➡️ The sections are connected by a 48 mm Male / Female socket system.
➡️ For diameters from 80 to 150 mm, the airtight joint is made with the Easy Lock system, with no need for a locking band
➡️ For diameters from 180 mm upwards, the airtight joint is made using the locking band not included.
🔥Bofill 316 stainless steel flues are supplied with a silicone seal for operation under P1 pressure class (200 Pa) up to 200 ° C (T200).
For installation without the seal, they can operate at temperatures of up to 600° C (T600) with N1 pressure class (40 Pa).
