Specifications
| Material | 316 L stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 0.4 mm |
| Maximum service temperature | 600°C |
| Temperature class (continuous operation) | T200 and T600 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 0099-CDP-A71-0031 and 0033 and 0035 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | 0.4 mm stainless steel single-wall flue |
| Flue type | Bends |

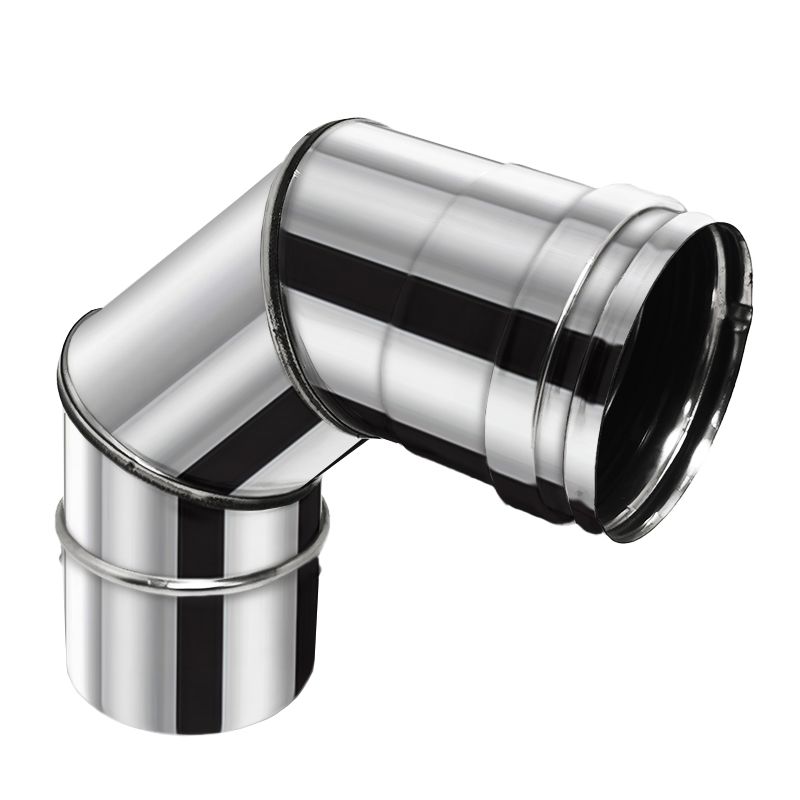

90° elbow - 0.4 mm stainless steel flue pipe
90° elbow in 0.4 mm stainless steel, used to offset the connecting flue pipe of wood-burning appliances such as wood or pellet stoves, fireplaces, inserts and wood-fired ovens. It can also be installed as a rigid flue liner in an existing masonry chimney.

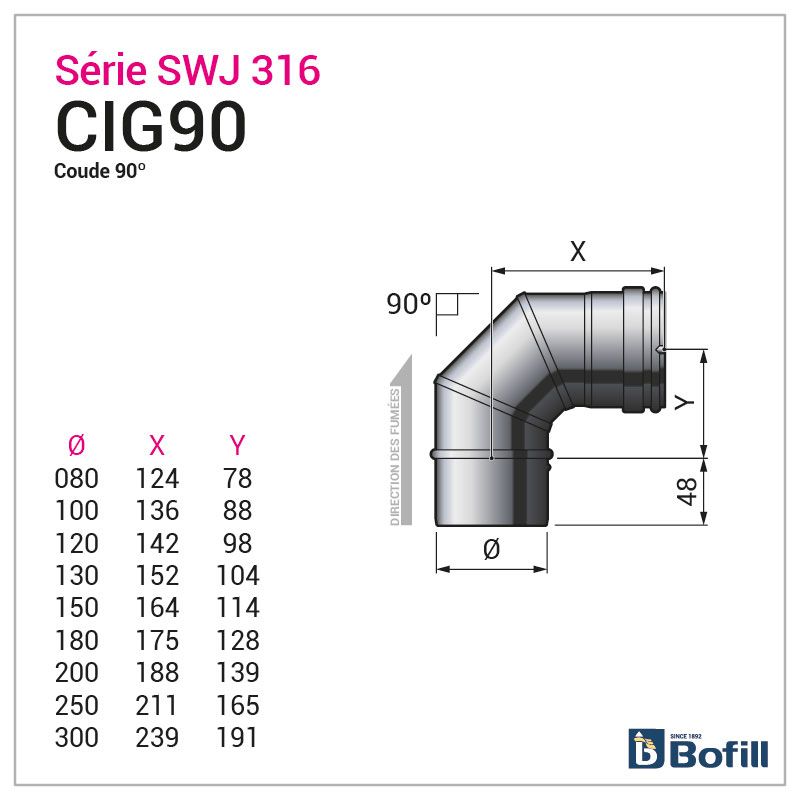

Available in diameters from 80 mm to 200 mm.
Lead time: 2 to 3 weeks
Related products:
👉 The 90° elbow in 316L single-wall stainless steel, 0.4 mm thick, provides a discreet connection for the wood-burning appliance with a 90° offset. It can be used as a connecting flue pipe or as a rigid flue liner in an existing masonry chimney.
Locking band to be ordered separately from 180 mm diameter upwards.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
Where can 316L stainless steel single-wall flues be used?
Bofill modular single-wall stainless steel flues are multi-fuel:
✅ Flue gas evacuation from wood stoves, inserts, fireboxes and wood, biomass and pellet boilers
✅ Flue gas evacuation from wood-fired ovens, bread and pizza ovens installed indoors or outdoors
✅ Flue gas evacuation from natural-draught gas fires and boilers
✅ Flue gas evacuation from gas and oil boilers for domestic and industrial heating and hot water production.
✅ Fresh air supply
What is a Bofill single-wall stainless steel modular flue?
Bofill single-wall stainless steel flues are made from AISI 316L stainless steel, 0.4 mm thick.
➡️ The sections are connected by a 48 mm Male / Female socket system.
➡️ For diameters from 80 to 150 mm, the airtight joint is made with the Easy Lock system, with no need for a locking band
➡️ For diameters from 180 mm upwards, the airtight joint is made using the locking band not included.
🔥Bofill 316 stainless steel flues are supplied with a silicone seal for operation under P1 pressure class (200 Pa) up to 200 ° C (T200).
For installation without the seal, they can operate at temperatures of up to 600° C (T600) with N1 pressure class (40 Pa).
